FS338
2x4" 40W 100V Full Range Music Speaker
FS338 is a 40W dual 4" speaker with a curved design for improved vertical coverage, ideal for BGM and speech in venues like hypermarkets and indoor stadiums.
Wide vertical coverage at both near and far distances, optional 360° coverage setup
40W 100V rating
Curved design enclosure
Rotary power selector from 5W to 40W, and multi-tap transformer with 4Ω option
Introduction
FS338 is a multi-purpose speaker designed for both background music and speech applications. Featuring dual 4” drivers in a curved enclosure, it provides enhanced vertical coverage for clear audio at both near and far distances. With a 40W 100V line rating and a rotary power selector (5W to 40W), it also supports a 4Ω connection for compatibility with conventional amplifiers. Typically installed in a vertical format, FS338 can be configured into a circular array using a special bracket for 360° coverage, making it ideal for large venues such as hypermarkets and indoor stadiums.
Packing information
-
Carton size: 555 (L) x 295 (W) x 165 (H) mm
-
Gross weight: 7.65 kg
-
2 unit(s) per carton
-
FS338
Speaker
Power rating
40W 100V line
Diameter
2 x 4" (100 mm)
Speaker type
2 way speaker with tweeter
Impedance (Ohm)
8
Frequency response
70 - 16 kHz
SPL @ 1W / m (+/- 3 dB) 1 kHz
87 dB
Transformer
Power tapping
5 / 10 / 20 / 40W 100V line
Primary Impedance (Ohm)
250 / 500 / 1k / 2k
Secondary impedance (Ohm)
4
Physical
Grille / Enclosure
ABS enclosure with metal grille

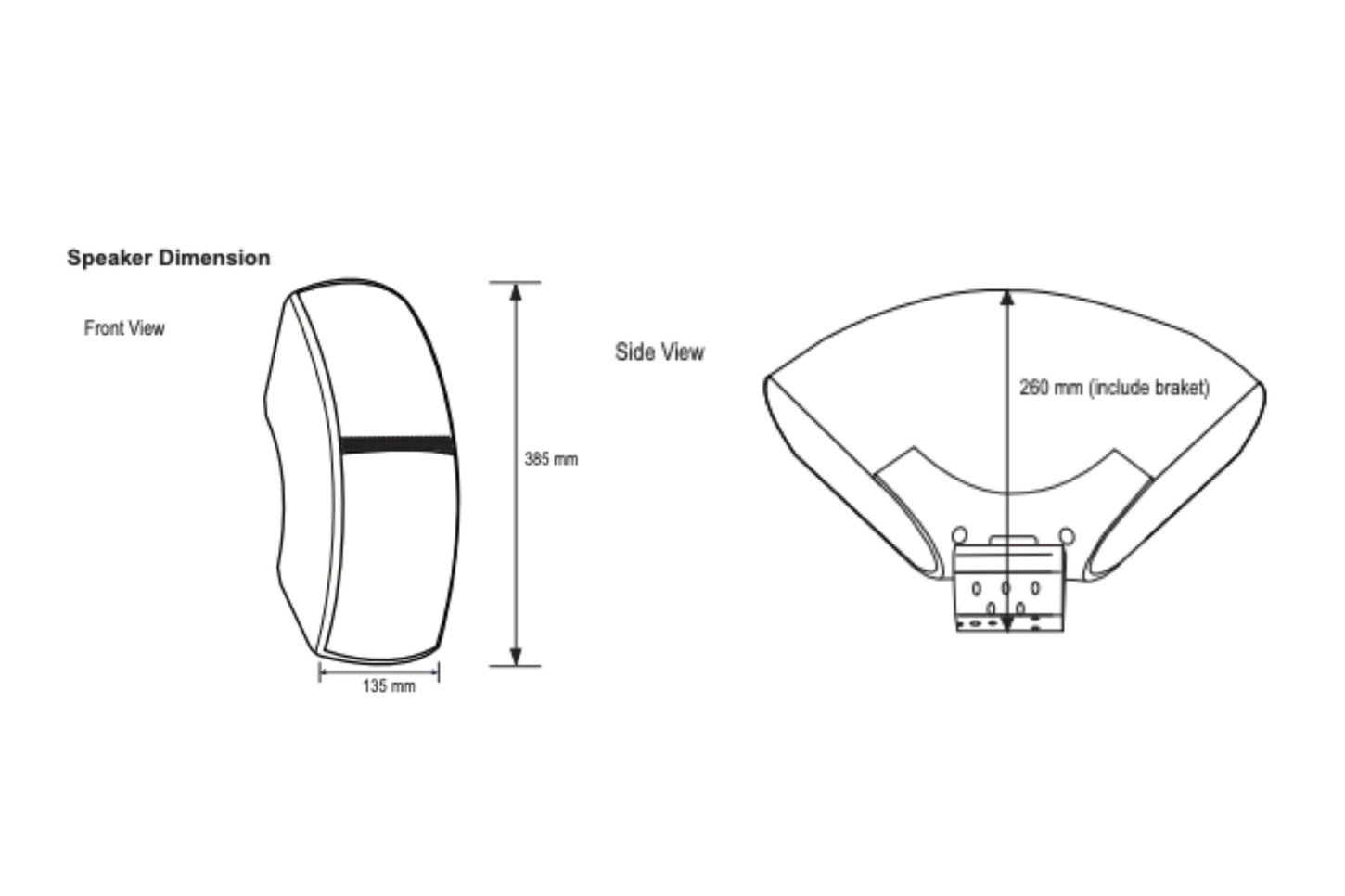

Overall size w bracket (W x H x D)
137 x 385 x 262 mm
Weight
3.50 kg
Color
Black
Note: The specification parameters may be changed, added, or omitted without prior notice.
-

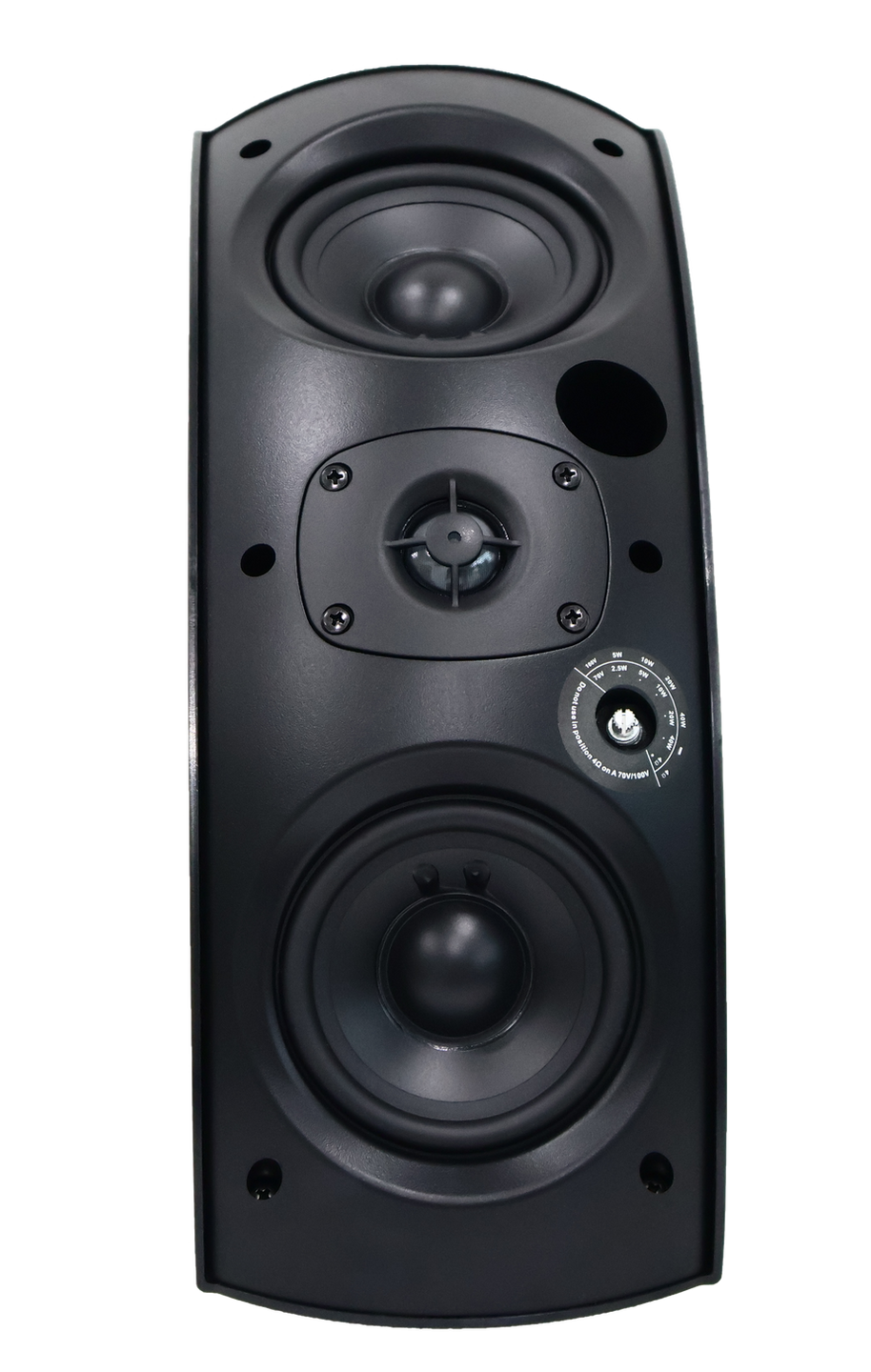

Dual 4" drivers with HF tweeter, supporting 40W 100V line and 4Ω connection for balanced sound reproduction
-
Optimized vertical installation for even sound distribution and clear audio output
-
Curved enclosure coverage for both near and far listening areas
-
Multi-tap transformer with a 4Ω option, allowing compatibility with 4Ω/8Ω output power amplifiers for flexible installation
-
Delivers speech clarity for announcements and background music
-
Optional 360° coverage setup with a specialized mounting bracket
-
Ideal for clear sound large installations in hypermarkets and indoor stadiums
-
Introduction
FS338 is a multi-purpose speaker designed for both background music and speech applications. Featuring dual 4” drivers in a curved enclosure, it provides enhanced vertical coverage for clear audio at both near and far distances. With a 40W 100V line rating and a rotary power selector (5W to 40W), it also supports a 4Ω connection for compatibility with conventional amplifiers. Typically installed in a vertical format, FS338 can be configured into a circular array using a special bracket for 360° coverage, making it ideal for large venues such as hypermarkets and indoor stadiums.
Packing information
-
Carton size: 555 (L) x 295 (W) x 165 (H) mm
-
Gross weight: 7.65 kg
-
2 unit(s) per carton
