Various styles of ceiling speakers to suit different types of applications are available, from economical type to full range, and also optional fire rated back enclosure

Surface speakers are available for slab mounts as well as wall fixing for areas such as staircases, corridors, etc.


Being the largest model counts in a category, Amperes has almost every speaker for every installations. From economical version to higher up models for a more serious listeners.


Ceiling Speakers

CS210 / CS510 / CS610  :  2 / 5 / 6" 6W 100V

CS515   :  5" 6W 100V with ABS grille

CS343   :  4" 6W 100V weatherproof

CS606   :  6" 6W 100V with metal enclosure

CS518   :  5" 20W 100V Co-axial square encl

CS630   :  6" 30W 100V Co-axial Ceiling Speaker

CS620 / CS840  :  20 / 40W 100V Co-axial

Fire rated back enclosure available for :

CS515, CS210, CS510, CS610 and CS515

Surface / Box Speakers

BS410   :  4" 10W 100V box speaker

DV410   :  4" 6W 100V box speaker

BS506    :  5" 6W 100V box speaker

CS516    :  5" 6W 100V surface mount

Fire rated enclosure available for :

BS410, BS506, CS516

Model Listing

Ceiling Speakers

CS610 LR.png

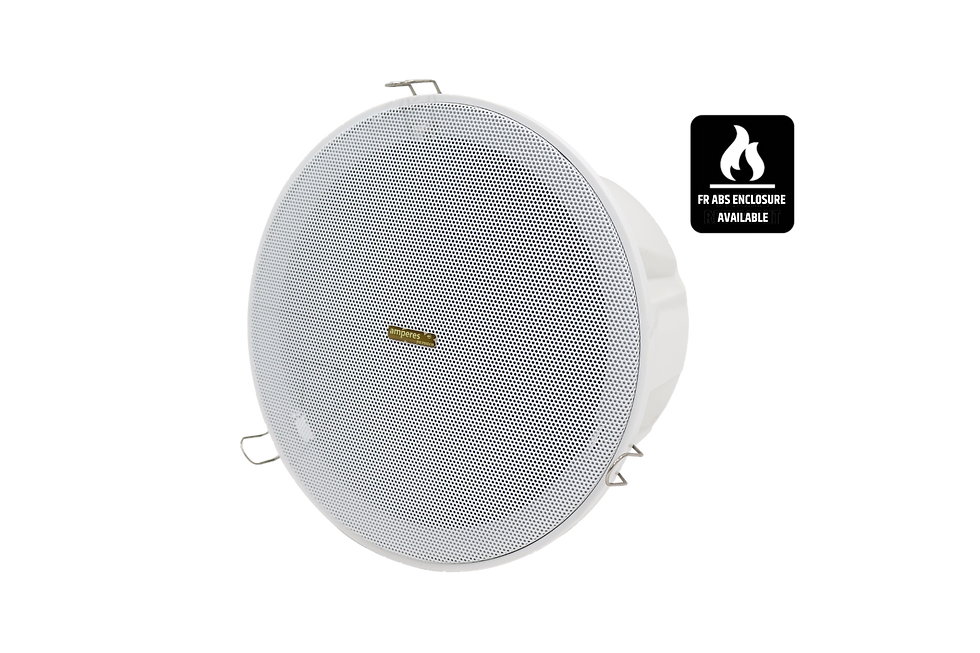

CS210 / CS510 / CS610

Ceiling Speakers

Introducing the newly designed ceiling speakers, available in 2, 5 and 6" versions. With only quality of finishing and optimum sound reproduction in mind, they shall be the best choice to enhance your installations ! and cost effective too.

Among the outstanding features are the installation mechanism - spring clips which is flexible to flip but strong in holding.

The slim edge design, coupled with the low profile height, brings out the coziness of the installation.


Ceiling Speakers

CS515 is wholly built with high quality ABS materials, available in black and white, driven by 5" dual cone speaker.

The grille is ABS, thus making it suitable for installation in high humidity areas, seasides and highlands.

The unique honeycomb grille is one of its kind and fits nicely to any atmosphere. Installation work is simple with the gentle spring clip mechanism.


Weatherproof Ceiling Speaker

CS343 is weatherproof speaker suitable for high humid areas such as bathrooms, spas, yacths, etc. Its aluminum grille prevents rust and the enclosure is well sealed to prevent dust accumulation.

Driven by 4" PP cone driver, it reproduces smooth BGM and good speech.

Ceiling Speakr


Metal Ceiling Speaker

CS606 is a fully metal version of ceiling speaker with 6" dual cone driver. It has 1.5 / 3 / 6 W transformer taps to suit installation requirement.

The grille is made from aluminum with powder epoxy coated to eliminate rust problem.

Mounting is through spring clamp and the back metal enclosure fulfills the requirement of fire resistance of dome.


Square Coaxial Ceiling Speaker

CS518 is a square type ceiling speaker with 5" co-axial driver, matches most ceiling fittings with rectangular physical shapes.

It is suitable for boutiques, residences, offices, etc.

CS620 / CS840

Coaxial Ceiling Speaker

CS620 and CS840 cater for a more serious listeners in BGM, wanting not only paging clarity but also the punch of bass and treble.

CS620 is 6" while CS840 is 8" co-axial type with 20W and 40W 100V line ratings respectively.

Among suitable installations are banquet halls, boutiques, function rooms and VIP areas.


Coaxial Ceiling Speaker w Power Tap

CS630 is co-axial ceiling speaker with 6.5" mid bass driver and 1" tweeter, comes with metal back enclosure. Power selection is available through rotary power selector switch, enable user to adjust the speaker wattage according to area or ceiling height.

Surface / Box Speakers



Box / Surface Mount Speaker

BS410 with half moon shape is a general purpose surface mount speaker suitable for vertical and horizontal mounting at walls or slabs.

It has multiple taps of 1 / 3 / 6 / 10 W 100V line to fit into different area of installations.


Box / Surface Mount Speaker

DV410 is a classic surface mount version, suitable for both horizontal and vertical mounting. It can also be mounted on ceiling slabs for areas without false ceiling.

It is driven by a 4" dual cone speaker with 1 / 3 and 6W 100V line transformer taps.


Box / Wall Mount Speaker

BS506 is suitable for vertical wall mounting such as staircase landing area, corridors, classrooms, etc. It is driven by 5" dual cone driver, available with 1 / 3/ 6W 100V power taps.


Surface / Mount Speaker

In places where there is no false ceiling, ie. only concrete slabs, CS516 comes suitable for installation. It is available in white and black colours to match the finishing of the ceilings.
