amperes electronics

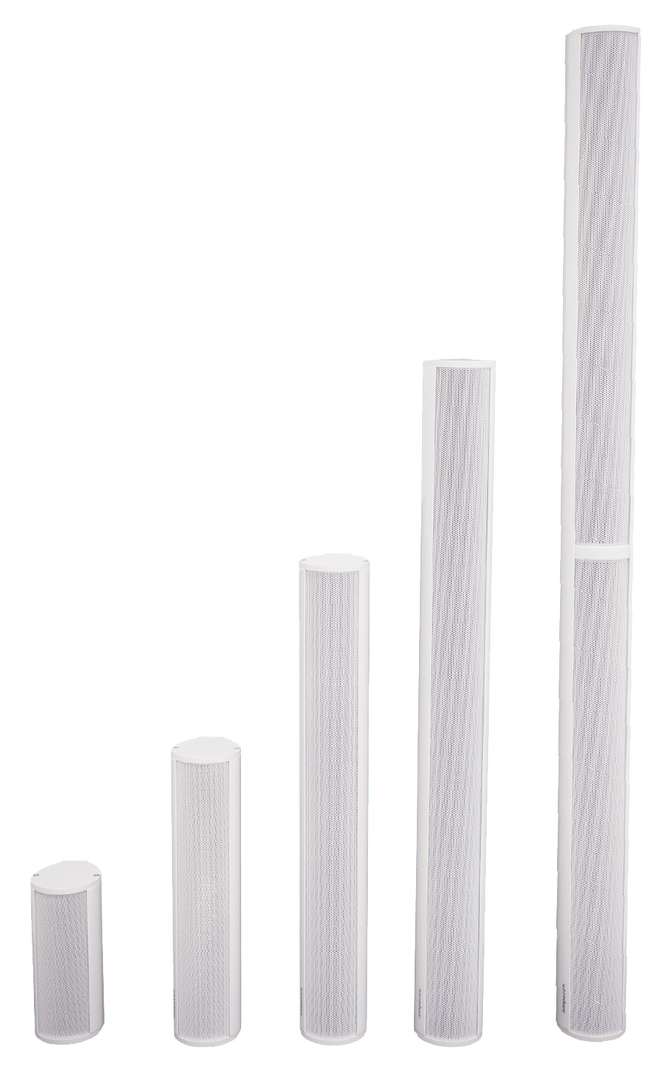

CL900 Series
Slim Line Column Speakers
CL900 Series column speakers is slim and equipped with powerful 2" drivers for clear speech and music sound commercial and public spaces. Ideal for indoor and semi-outdoor installations.
2" PP driver for clear mid-range clarity
Available in 10W, 20W, 40W, 60W and 80W (100V) line rating
Slim profile with rust-resistant aluminium enclosure
Extended long sound throw models available
Introduction
CL900 Series slim line column speakers are designed to provide even sound distribution, making them ideal for speech and background music in commercial and public spaces. Available in 10W, 20W, 40W, 60W, and 80W 100V line variants, they feature powerful 2” drivers for clear mid-range clarity. Built with rugged aluminum enclosure, they are durable for indoor and semi-outdoor environments such as places of worship, meeting rooms, school corridors, passenger terminals, ballrooms, and factories. CL912 and CL916 models offer extended sound throw for larger areas. Available in standard white with optional black upon request, they blend seamlessly into any installation space.
Series model variants
-
CL902: 10W 100V line
-
CL904: 20W 100V line
-
CL908: 40W 100V line
-
CL912: 60W 100V line
-
CL916: 80W 100V line
Packing information
CL902:
-
Carton size: 255 (L) x 235 (W) x 170 (H) mm
-
Gross weight: 2.70 kg
-
2 unit(s) per carton
CL904:
-
Carton size: 400 (L) x 235 (W) x 155 (H) mm
-
Gross weight: 3.90 kg
-
2 unit(s) per carton
CL908:
-
Carton size: 605 (L) x 245 (W) x 175 (H) mm
-
Gross weight: 6.20 kg
-
2 unit(s) per carton
CL912:
-
Carton size: 830 (L) x 245 (W) x 170 (H) mm
-
Gross weight: 7.80 kg
-
2 unit(s) per carton
CL916:
-
Carton size: 1160 (L) x 240 (W) x 195 (H) mm
-
Gross weight: 13.0 kg
-
2 unit(s) per carton
Cross references
Introduction
CL900 Series slim line column speakers are designed to provide even sound distribution, making them ideal for speech and background music in commercial and public spaces. Available in 10W, 20W, 40W, 60W, and 80W 100V line variants, they feature powerful 2” drivers for clear mid-range clarity. Built with rugged aluminum enclosure, they are durable for indoor and semi-outdoor environments such as places of worship, meeting rooms, school corridors, passenger terminals, ballrooms, and factories. CL912 and CL916 models offer extended sound throw for larger areas. Available in standard white with optional black upon request, they blend seamlessly into any installation space.
Series model variants
-
CL902: 10W 100V line
-
CL904: 20W 100V line
-
CL908: 40W 100V line
-
CL912: 60W 100V line
-
CL916: 80W 100V line
Packing information
CL902:
-
Carton size: 255 (L) x 235 (W) x 170 (H) mm
-
Gross weight: 2.70 kg
-
2 unit(s) per carton
CL904:
-
Carton size: 400 (L) x 235 (W) x 155 (H) mm
-
Gross weight: 3.90 kg
-
2 unit(s) per carton
CL908:
-
Carton size: 605 (L) x 245 (W) x 175 (H) mm
-
Gross weight: 6.20 kg
-
2 unit(s) per carton
CL912:
-
Carton size: 830 (L) x 245 (W) x 170 (H) mm
-
Gross weight: 7.80 kg
-
2 unit(s) per carton
CL916:
-
Carton size: 1160 (L) x 240 (W) x 195 (H) mm
-
Gross weight: 13.0 kg
-
2 unit(s) per carton
-
CL900 Series
Speaker
CL902
CL904
CL908
CL912
CL916
Power rating
10W 100V line
20W 100V line
40W 100V line
60W 100V line
80W 100V line
Speaker components
2 x 2"
4 x 2"
8 x 2"
12 x 2"
16 x 2"
SPL descriptions
87 +/- 3 dB
87 +/- 3 dB
88 +/- 3 dB
89 +/- 3 dB
94 +/- 3 dB
Frequency response
200 - 16 kHz
200 - 17 kHz
240 - 16 kHz
220 - 17 kHz
220 - 18 kHz
Transformer
Transformer tapping
6 / 10W 100V line
10 / 20W 100V line
30 / 40W 100V line
50 / 60W 100V line
70 / 80W 100V line
Primary Impedance (Ohm)
1k / 1.6k
500 / 1k
250 / 330
166 / 200
125 / 143
Physical
Material
Aluminium body, powder epoxy metal grille
Aluminium body, powder epoxy metal grille
Aluminium body, powder epoxy metal grille
Aluminium body, powder epoxy metal grille
Aluminium body, powder epoxy metal grille
Dimensions ( W x H x D )
79 x 190 x 89 mm
79 x 350 x 89 mm
79 x 567 x 89 mm
79 x 782 x 89 mm
79 x 1128 x 89 mm
Weight with bracket
1.10 kg
1.50 kg
2.50 kg
3.20 kg
5.80 kg
Note: The specification parameters may be changed, added, or omitted without prior notice.
-
Available in 10W (CL902), 20W (CL903) , 40W (CL908), 60W (CL912), 80W (CL916) 100V line variants
-
Sleek, slim design with durable aluminium enclosure and epoxy-coated front grille for rust resistance
-
2" PP driver array with tweeter for clear mid-range audio
-
Delivers high-quality sound reproduction for music and speech clarity
-
Multi-way brackets for CL902, CL904, CL908 and heavy-duty mounting brackets for CL912 and CL916
-
Extended sound throw for large areas available with CL912 and CL916
-
Standard white colour, black available upon request.
-
Ideal for indoor and semi-outdoor environments such as worship halls, meeting rooms, schools, and terminals.
-
