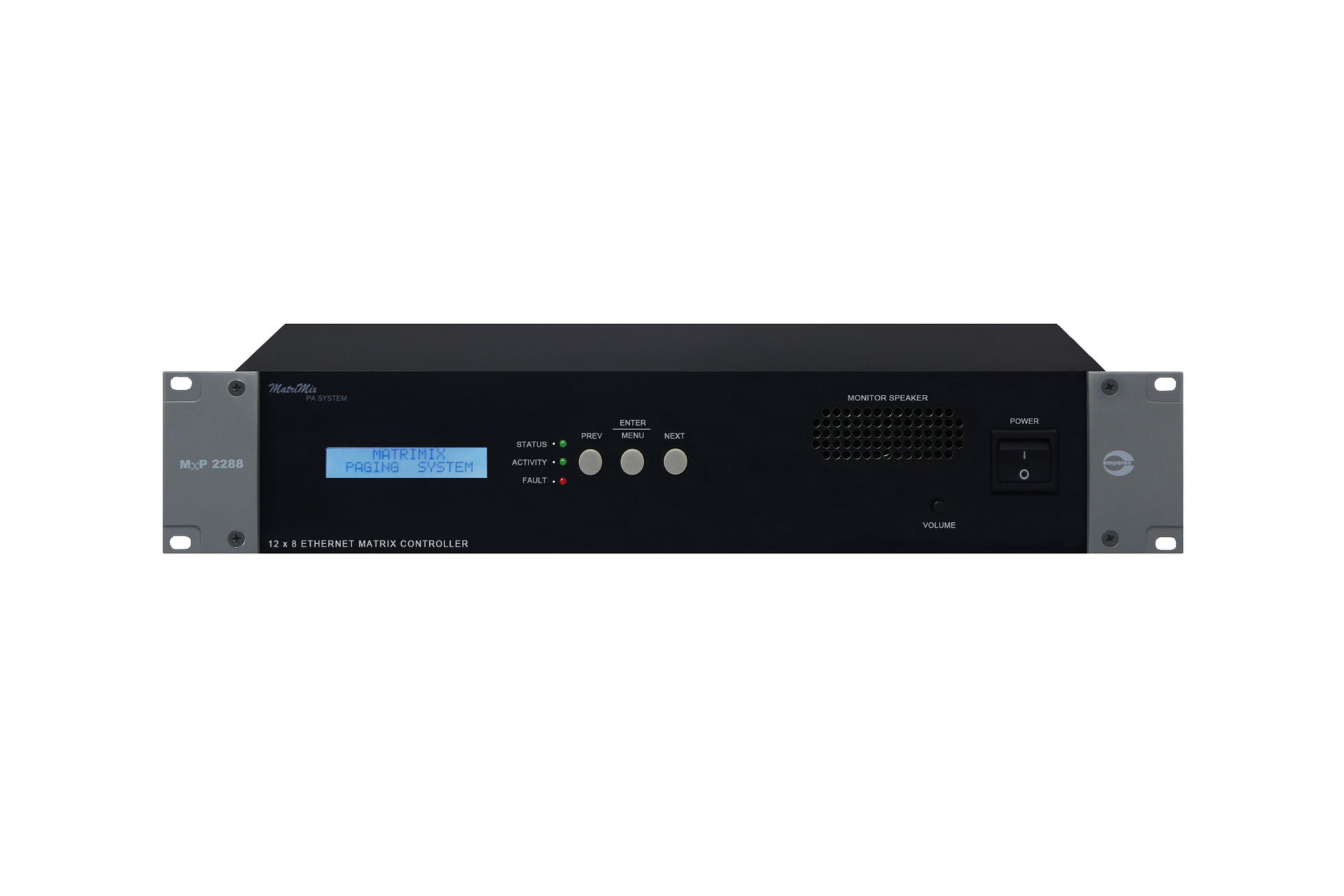

MxP2288

Configuration

12 x 8 matrix controller

Power requirements

Power source

24V DC ; 1A

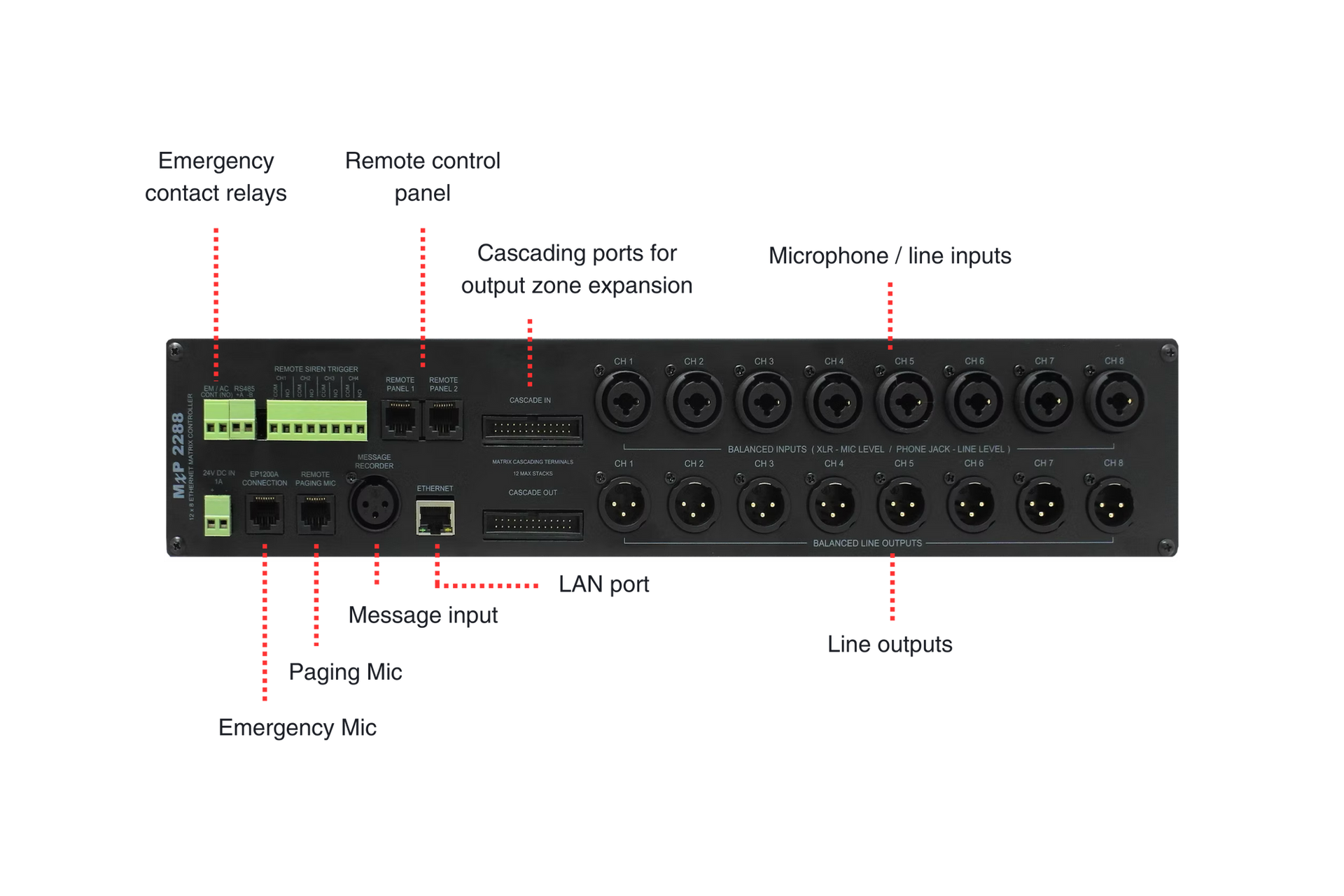

Input, output and controls

Input channels

8 microphones / line level balanced signal via combo jacks:

EP1200: Emergency Paging Panel x1

MR1301 MKII : EVAC Message Player x1

PD Series: Paging Microphone x1

Input connections

Combo jack: Microphone (XLR) Phone (1/4" Stereo phone jack)

Input impedance

Microphone: 600 Ohm Line: 10K Ohm balanced

Input sensitivity

Line level: 800 mV RMS Microphone level: 350 mV RMS

Frequency response

150 Hz - 17 KHz (+/- 3 dB at 1 KHz) with low cut

Total harmonic distortion (THD)

< 1%

Paging audio streaming

IMA ADPCM (16 KHz)

Digital format

PCM / ADPCM / OGG / MP3 / WMA / WAV

Chime

4 Tones up and down

Audio output

x8 Balanced line output via XLR jacks Cascade link via flat cable

Tone / Volume controls

Bass: +/- 14 dB cut and boost (2 dB step) Treble: +/- 14 dB cut and boost ( 2 dB step) Volume: 0 dB to -78.75 dB (1.25 dB step)

Audio gain (Max.)

+4 dB

Output audio monitoring

Via front 3W speaker

Communication control

RS485 ; 19.2 Kbps

User interface

Direct web interface via LAN for PC and Wi-Fi for tablet and smartphone

Remote controls

Via PC / tablet / smartphone

Unit cascade control

3 units 24 outputs channels (Recommended max unit for full matrix)

Trigger port

Message / Emergency paging (Programmable)

Priority controls

BGM (Local source, IPX) Paging message Emergency paging (Highest priority)

Fail-safe feature

Emergency paging bypass

E/M Override contact

3A dry contact

Case

Dimensions ( W x H x D)

482 x 88 x 180 mm

Weight

3.30kg
