EP1200
Emergency Paging Panel c/w Handheld Dynamic Mic
EP1200 is an important equipment in PA installations, enabling high-priority broadcasts during emergency situations. It allows direct paging to all zones, overriding any active BGM or ongoing paging.
Highest-priority override paging via front panel mic for EVAC announcements
Large FIRE alert indicator and constant siren-tone generator
Dual-mode siren tone activation (automated & manual)
Independent output level controls for siren, message, and paging mic
Introduction

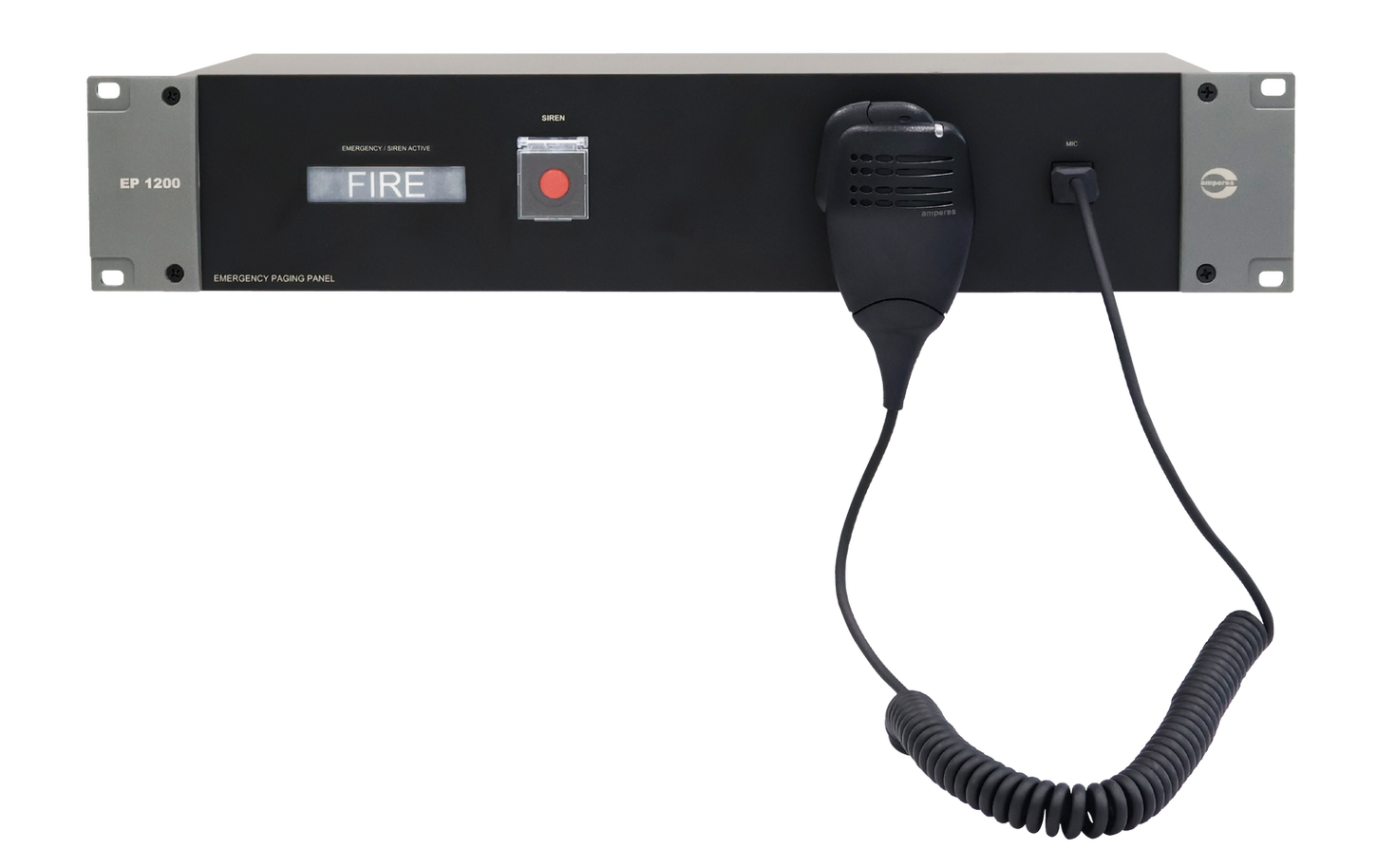

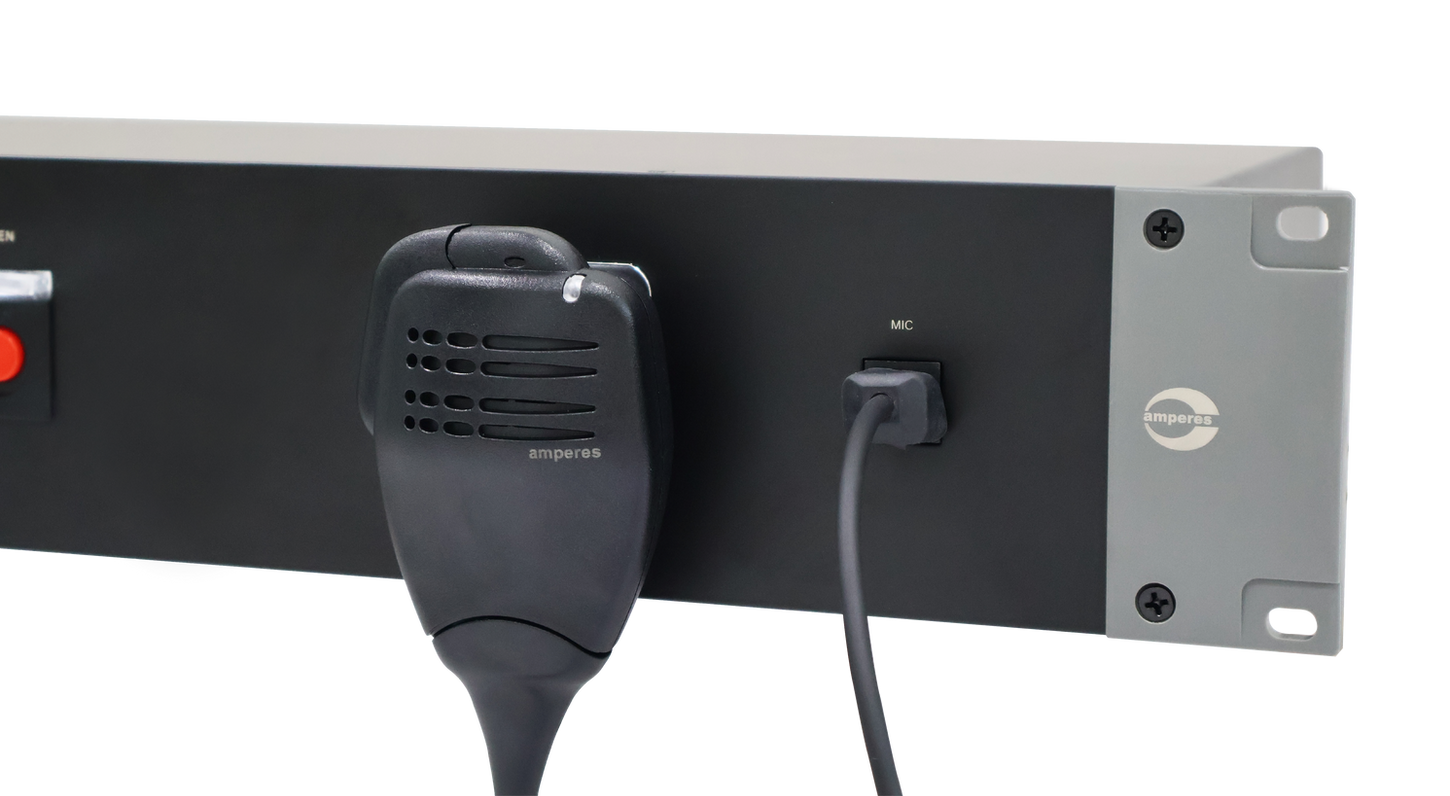

EP1200 is a rack-mounted Emergency Paging Panel, also known as a Fireman's Paging Station, equipped with a handheld dynamic microphone for highest-priority emergency paging. It overrides all other audio sources, including background music, sirens, and pre-recorded messages, for immediate emergency announcements.
EP1200 supports automated EVAC message broadcasting via dry contact activation, with RS485 communication to bypass connected devices such as TD6400 for zone overriding. It also features a built-in siren generator with automatic All Call activation when triggered, ensuring system-wide emergency announcements.
EP1200 can be integrated with Amperes Matrix Controllers MxP2288, Fire Alarm Interfaces FI6000 MK II, and EVAC Message Players MR1301 MK II, providing a reliable solution for emergency paging and evacuation applications. For larger systems, it can interface with iPX5101 IP client for LAN-based emergency paging across multiple racks.
Packing information
Carton size: 555 (L) x 295 (W) x 165 (H) mm
Gross weight: 3.75 kg
Net weight: 2.80 kg
1 unit per carton
Introduction
EP1200 is a rack-mounted Emergency Paging Panel, also known as a Fireman's Paging Station, equipped with a handheld dynamic microphone for highest-priority emergency paging. It overrides all other audio sources, including background music, sirens, and pre-recorded messages, for immediate emergency announcements.
EP1200 supports automated EVAC message broadcasting via dry contact activation, with RS485 communication to bypass connected devices such as TD6400 for zone overriding. It also features a built-in siren generator with automatic All Call activation when triggered, ensuring system-wide emergency announcements.
EP1200 can be integrated with Amperes Matrix Controllers MxP2288, Fire Alarm Interfaces FI6000 MK II, and EVAC Message Players MR1301 MK II, providing a reliable solution for emergency paging and evacuation applications. For larger systems, it can interface with iPX5101 IP client for LAN-based emergency paging across multiple racks.
Packing information
Carton size: 555 (L) x 295 (W) x 165 (H) mm
Gross weight: 3.75 kg
Net weight: 2.80 kg
1 unit per carton
EP1200
Power Requirements
Operating voltage
24V DC
Power consumption
3.5W
Microphone & Siren
Mic sensitivity
-72 dB Omni directional
Impedance
600 Ohm
Frequency response
300 - 8 kHz
Siren frequency
Continuous at 8 kHz
Siren duration
Continuous when activated
Siren activation
Front test switch / remote contact
Inputs
Input channel
Pre-amplifier output, message recorder
Output level
Balanced line out +4 dBu (1.2V)
Priority sequence
Paging Mic - Message - Siren - Preamp IN
Indicators
Front FIRE with back light illumination
Physical Specifications
Dimensions (W x H x D)
482 x 88 x180 mm
Net weight
2.80kg
Note: The specification parameters may be changed, added, or omitted without prior notice. Last updated on 5 May 2026.
Highest-priority override paging via front panel emergency microphone for EVAC paging/announcements control, bypassing all other audio sources
Built-in constant siren tone generator with automatic All Call
Dual-mode siren tone activation (automated & manual)
Large FIRE indicator for clear visual alert
External voice message activation capability
Dry contact output when paging microphone activated
Independent output level controls for siren, message, and paging mic
Seamless integration with MxP2288 Ethernet Matrix Controller via RJ45
Compatible with FI6000 MK II for phased evacuation and EN54 compliance
Works with MR1301 MK II for pre-recorded messages
Interface with iPX5101 IP client for LAN-based emergency paging
CROSS REFERENCES
Compatible products that complete the system.
