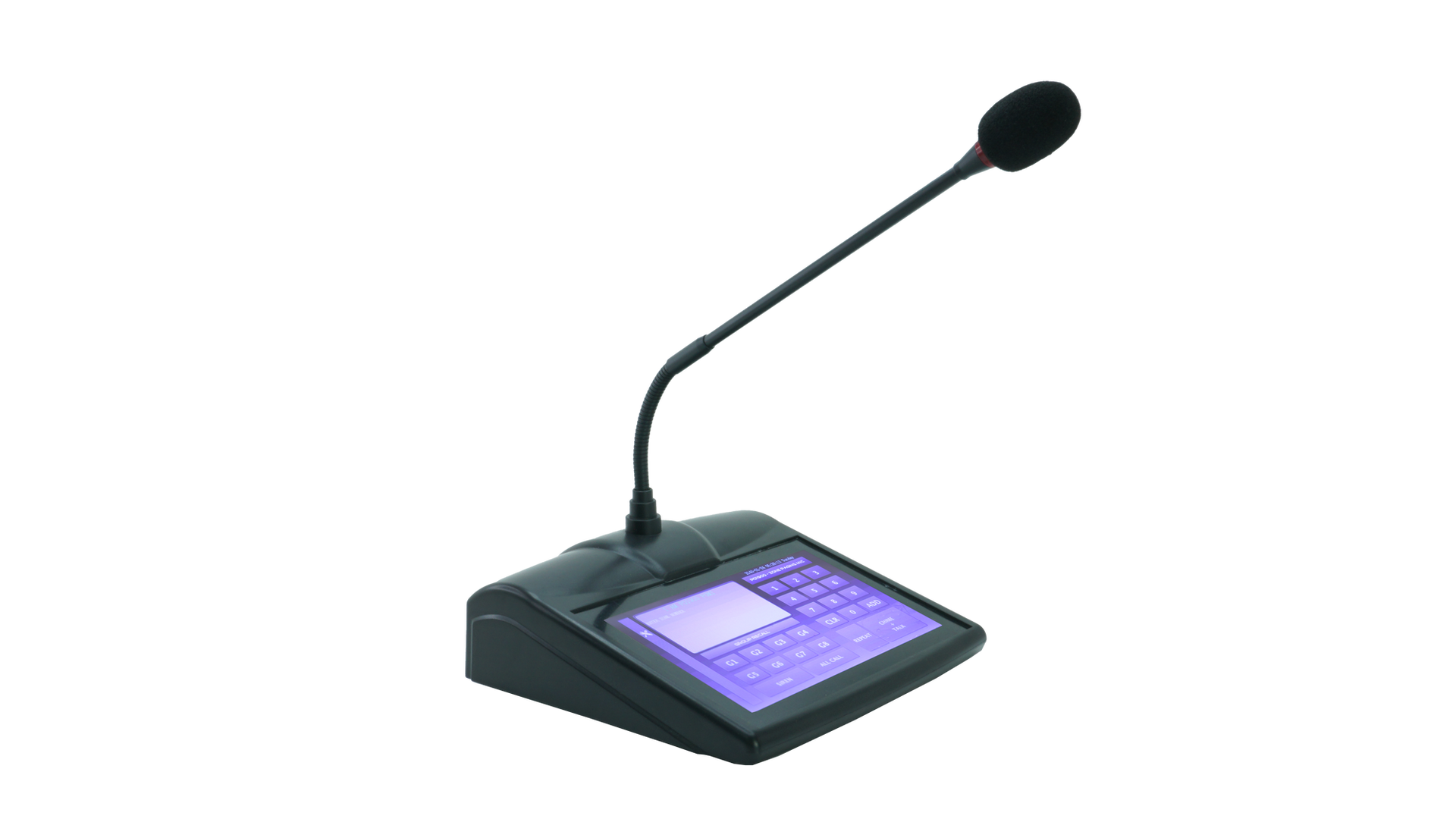

PD1900
LCD Touchscreen Paging Microphone
PD1900 features a 7" touchscreen, easy-to-use controls, customisable zones and a built-in chime and microphone for seamless integration with Amperes systems.
-
7" capacitive touchscreen with vivid colors
-
800 x 480 px resolution
-
Zone grouping and customizable names
-
Built-in chime, siren, and illuminated gooseneck microphone
-
Compatible with Amperes Zone Decoders, IP Clients, and Matrix Controllers
Introduction
PD1900 is a sleek and modern paging console featuring a 7” capacitive touchscreen with vibrant color rendering and a resolution of 800 x 480 pixels. Designed to enhance the aesthetics of any reception desk, it combines style with intuitive functionality.
Key features include an easy-to-use interface for paging and device configuration, zone grouping for simplified management, and customizable zone names for tailored setups. The PD1900 also comes equipped with a built-in chime and siren for versatile alert options and an illuminated gooseneck microphone for seamless operation.
Built for compatibility, it integrates effortlessly with Amperes Zone Decoders, IP Clients, and Matrix Controllers. With free periodic firmware updates, the PD1900 ensures long-term reliability and performance, making it a valuable addition to any setup.
Packing information
-
Carton size: 445 (L) x 260 (W) x 85 (H) mm
-
Gross weight: 2.10kg (Adaptor included)
-
1 unit per carton
Introduction
PD1900 is a sleek and modern paging console featuring a 7” capacitive touchscreen with vibrant color rendering and a resolution of 800 x 480 pixels. Designed to enhance the aesthetics of any reception desk, it combines style with intuitive functionality.
Key features include an easy-to-use interface for paging and device configuration, zone grouping for simplified management, and customizable zone names for tailored setups. The PD1900 also comes equipped with a built-in chime and siren for versatile alert options and an illuminated gooseneck microphone for seamless operation.
Built for compatibility, it integrates effortlessly with Amperes Zone Decoders, IP Clients, and Matrix Controllers. With free periodic firmware updates, the PD1900 ensures long-term reliability and performance, making it a valuable addition to any setup.
Packing information
-
Carton size: 445 (L) x 260 (W) x 85 (H) mm
-
Gross weight: 2.10 kg (Adaptor included)
-
1 unit per carton
-
PD1900
Power Requirements
Operating voltage
24V DC via EX2800 with local power adaptor
Power consumption (24V DC)
1.3W
Input, output and controls
Zone selection
Numerical keypad with grouping and All Call
Selection keys
Sensor touch
Microphone
Gooseneck condenser cardioid microphone
Output impedance
600 Ohm
Output level
1.2V Balanced line output (+4 dBU)
Output controls
Chime and microphone volume
Data connections
RS485: 19.2 Kbps
Cabling to decoder
2 pair screen: 22 AWG / Cat5e
Operating distance
Recommended at 300m, subjected to cable size
Interface device
Compatible with MxP2288, TD6240, TD6080, TD6400, iPX5155
Chime
Programmable 4 tone up and down
Indicators
Zone, power, audio, data, gooseneck microphone ring LED
Display / Panel
7" Capacitive touchscreen LCD display (800 x 480 pixels)
Frequency response
100 - 12 kHz@1 kHz +/- 3 dB
S/N ratio
> 65 dB@1 kHz
Gooseneck microphone length
370mm
Physical Specifications
Dimensions
230 (W) x 192 (H) x 65 (D) mm (Excluding microphone)
Weight
0.95 kg
Note: The specification parameters may be changed, added, or omitted without prior notice. Last updated on 22 Dec 2025.
Firmware last updated on January 2021. Please contact us on upgrade procedures.
V2.52 - Firmware
V2.10 - GUI
-
7" capacitive touchscreen with vivid colours
-
800 x 480 px resolution
-
Intuitive user interface for easy paging and device configuration
-
Zone grouping for simplified management with up to 64 zones and 8 groups
-
Customizable zone names for personalized setup
-
Built-in chime and siren for added functionality
-
Equipped with an illuminated gooseneck microphone
-
Fully compatible with Amperes Zone Decoders, IP Clients, and Matrix Controllers
-
Free firmware upgrades
-
