SQ9815
8 Ch Sequential Power Switcher
SQ9815 is a 8-channel AC power switcher with sequential startup and shutdown to prevent surges, extend equipment lifespan, and support expandable setups. Also equipped with lock mode to prevent accidental operation.
Cascade up to 8 units for a maximum of 64 channels
Built-in surge protection
Sequential ON/OFF switching
Control via front panel buttons or remote dry contact
Introduction

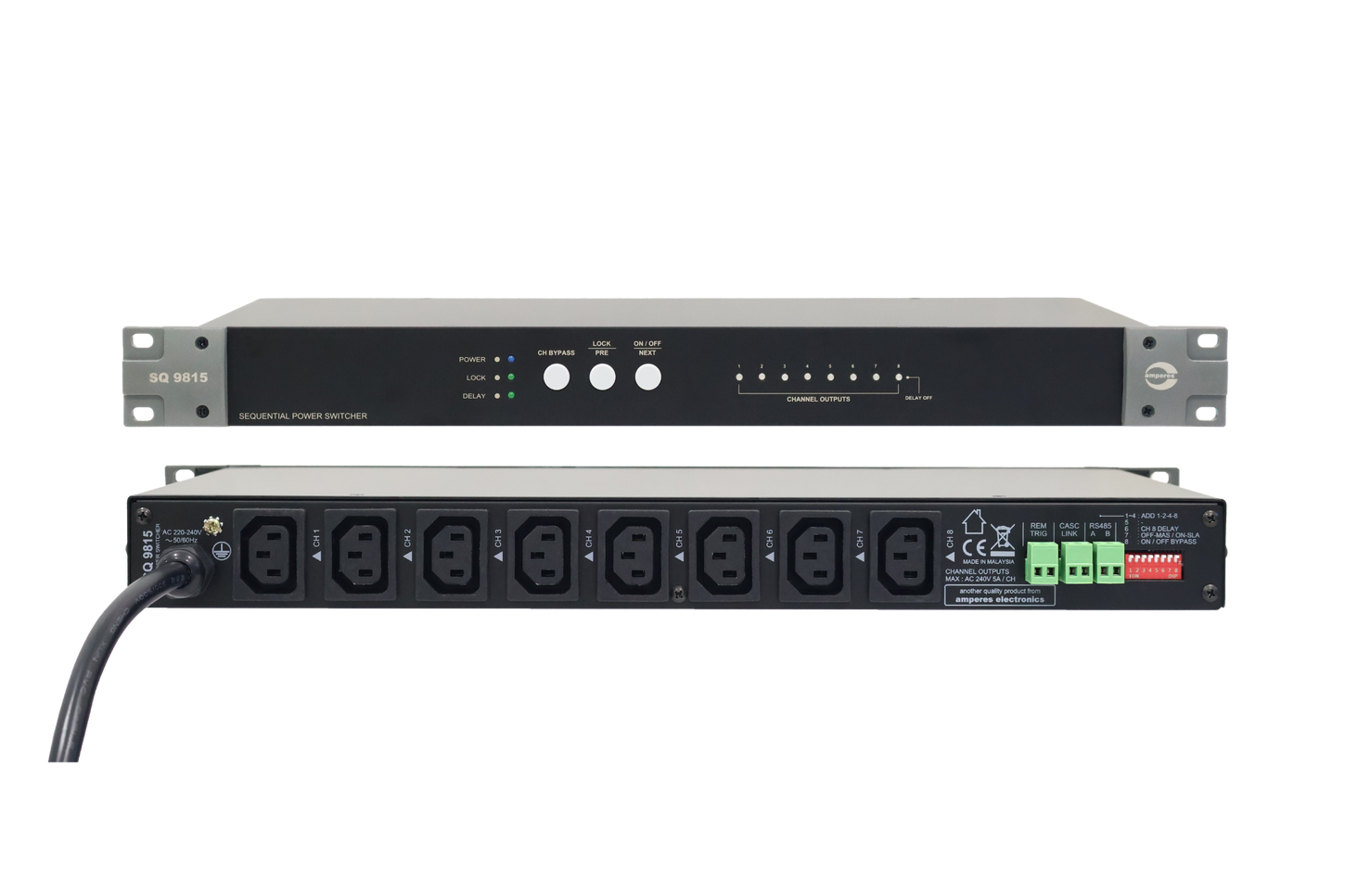

SQ9815 is an 8-channel AC power switcher that provides an orderly power-up and power-down sequence of system components (mixer to power amplifier and vice versa), protecting sensitive equipment from power surges and extending its lifespan. With a single button press, SQ9815 simplifies power management and prevents damage from accidental switching. For larger setups, It can be expanded to 16 channels by linking two units and includes built-in surge protection for added safety in professional AV and PA setups.
Packing information
-
Carton size: 555 (L) x 295 (W) x 95 (H) mm
-
Gross weight: 3.55 kg
-
1 unit(s) per carton
Cross references
Introduction
SQ9815 is an 8-channel AC power switcher that provides an orderly power-up and power-down sequence of system components (mixer to power amplifier and vice versa), protecting sensitive equipment from power surges and extending its lifespan. With a single button press, SQ9815 simplifies power management and prevents damage from accidental switching. For larger setups, It can be expanded to 16 channels by linking two units and includes built-in surge protection for added safety in professional AV and PA setups.
Packing information
-
Carton size: 555 (L) x 295 (W) x 95 (H) mm
-
Gross weight: 3.55 kg
-
1 unit(s) per carton
-
SQ9815
Power requirements
Operating voltage
220 - 240V AC
Power consumption
50 mW (without load)
Output, protection, and delay
Output voltage
230 / 240V AC
Max load / channel
6A
Max total load
15A
Output connection
IEC female socket
Max cascade
8 uts : total 64 channels
Surge protection
L-N, L-E, N-E
Clamping voltage
870V AC
Turn on sequence
Step 1 to 8 incremental
Turn off sequence
Step 8 to 1 decremental
Step timing
2 seconds
Delay off option
Channel 8 via DIP switch
Delay off timer
2 minutes
Switch lock
Via front switch
Indicators
AC mains, Ch. on, Lock
Case
Dimensions (W x H x D)
482 x 44 x 180 mm
Weight
2.80kg exclude accessories
Note: The specification parameters may be changed, added, or omitted without prior notice.
-
8-channel power switching, expandable to 16 channels, with 6A per channel (total 15A) and built-in surge protection
-
Control via front panel buttons or remote dry contact
-
Sequential ON/OFF switching to prevent power surges
-
AC output via IEC connectors with channel isolation configurable through a DIP switch
-
Cascade up to 8 units for a maximum of 64 channels
-
Remote switching enabled through an external noiseless contact
-
Option to disable channels as needed
-
2-minute delay-off for Channel 8, ideal for video projectors
-
Lock mode to prevent accidental operation
-
