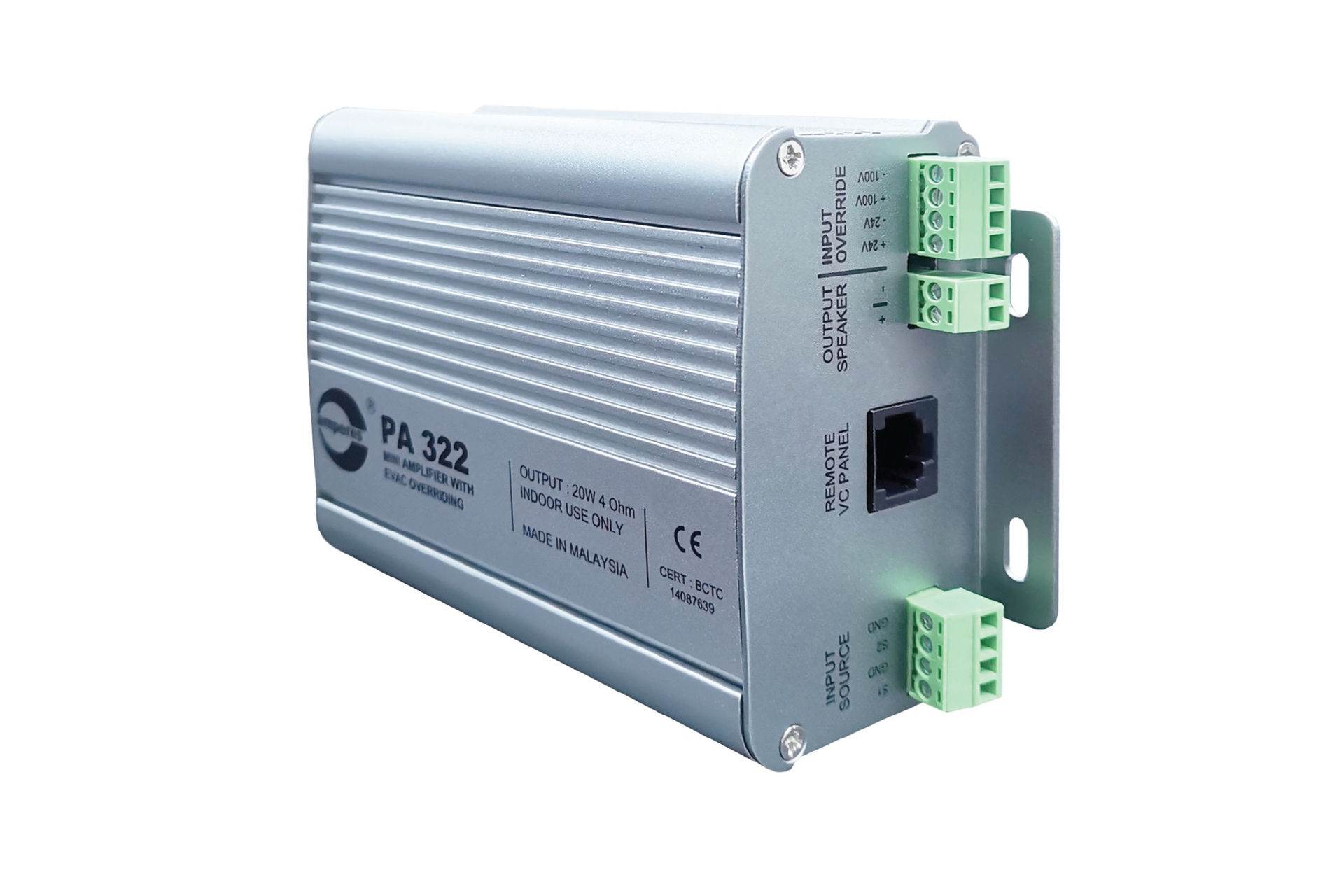

PA322

20W 4 Ohm Mini Amplifier with Dual Input (Class D)

PA322 is a compact 20W mini amplifier with dual input and emergency override, ideal for small spaces like hotel bathrooms or classrooms, delivering clear audio with remote source selection.

Dual unbalanced audio input, selectable via external control panel

Built in 100V override for main PA announcements

Class D amplifier for 20W output at 4 or 8 Ohms

Small and space-saving size for easy installation

Introduction

PA322 is a compact Class D mini amplifier designed for small area audio playback, such as hotel bathrooms, classrooms, lounges, and counter call systems. Despite its size, it delivers clear and reliable sound with 20W output at 4 or 8 Ohms, making it perfect for one or two speakers. It features dual audio inputs that can be selected remotely using the VC7001 volume controller with source selector, and is ideal for amplifying unbalanced line signals from TVs or music players.


A built-in emergency override relay allows announcements from the central PA system to take priority over local audio, ensuring important messages are always heard. Its compact size allows easy installation inside cabinets or above ceilings, keeping it out of sight while delivering quality sound.

Packing information

  • Carton size : 555 (L) x 295 (W) x 165 (H) mm

  • Gross weight : 16.2 kg

  • 20 unit(s) per carton

  • Introduction

    PA322 is a compact Class D mini amplifier designed for small area audio playback, such as hotel bathrooms, classrooms, lounges, and counter call systems. Despite its size, it delivers clear and reliable sound with 20W output at 4 or 8 Ohms, making it perfect for one or two speakers. It features dual audio inputs that can be selected remotely using the VC7001 volume controller with source selector, and is ideal for amplifying unbalanced line signals from TVs or music players.


    A built-in emergency override relay allows announcements from the central PA system to take priority over local audio, ensuring important messages are always heard. Its compact size allows easy installation inside cabinets or above ceilings, keeping it out of sight while delivering quality sound.

    Packing information

    • Carton size : 555 (L) x 295 (W) x 165 (H) mm

    • Gross weight : 16.2 kg

    • 20 unit(s) per carton


  • PA322

    Power requirements


    Power rating

    20W 4 Ohm

    Operating voltage

    220 - 240V AC

    Current consumption

    0.03A

    Input, output & control


    Input

    2

    Input audio

    Mono, unbalanced

    Input signal (sensitivity)

    800 mV

    Input gain controls

    -40 to 4 dBU

    Input impedance

    10k Ohm

    Output impedance

    4 Ohm

    Controls

    Volume & source select

    External link (optional)

    VC7001

    Frequency response

    20 - 20 kHz

    S/N ratio

    >65 dB

    Operating temperature

    -10° to 60°C

    Operating humidity

    80%

    Case


    Dimensions (W x H x D)

    140 x 55 x 95 mm

    Weight

    0.82 kg

    Note: The specification parameters may be changed, added, or omitted without prior notice.

    • Dual unbalanced line audio input sources, selectable via external control panel

    • Built-in 100V 24V DC override to allow main PA announcements

    • Class D amplifier for 20W output at 4 or 8 Ohms

    • Source selectable and volume adjustment via VC7001

    • Compact size for easy installation

    • Ideal for small areas like hotel bathrooms,classrooms, lounges, and counter call systems.
