amperes electronics
BS410

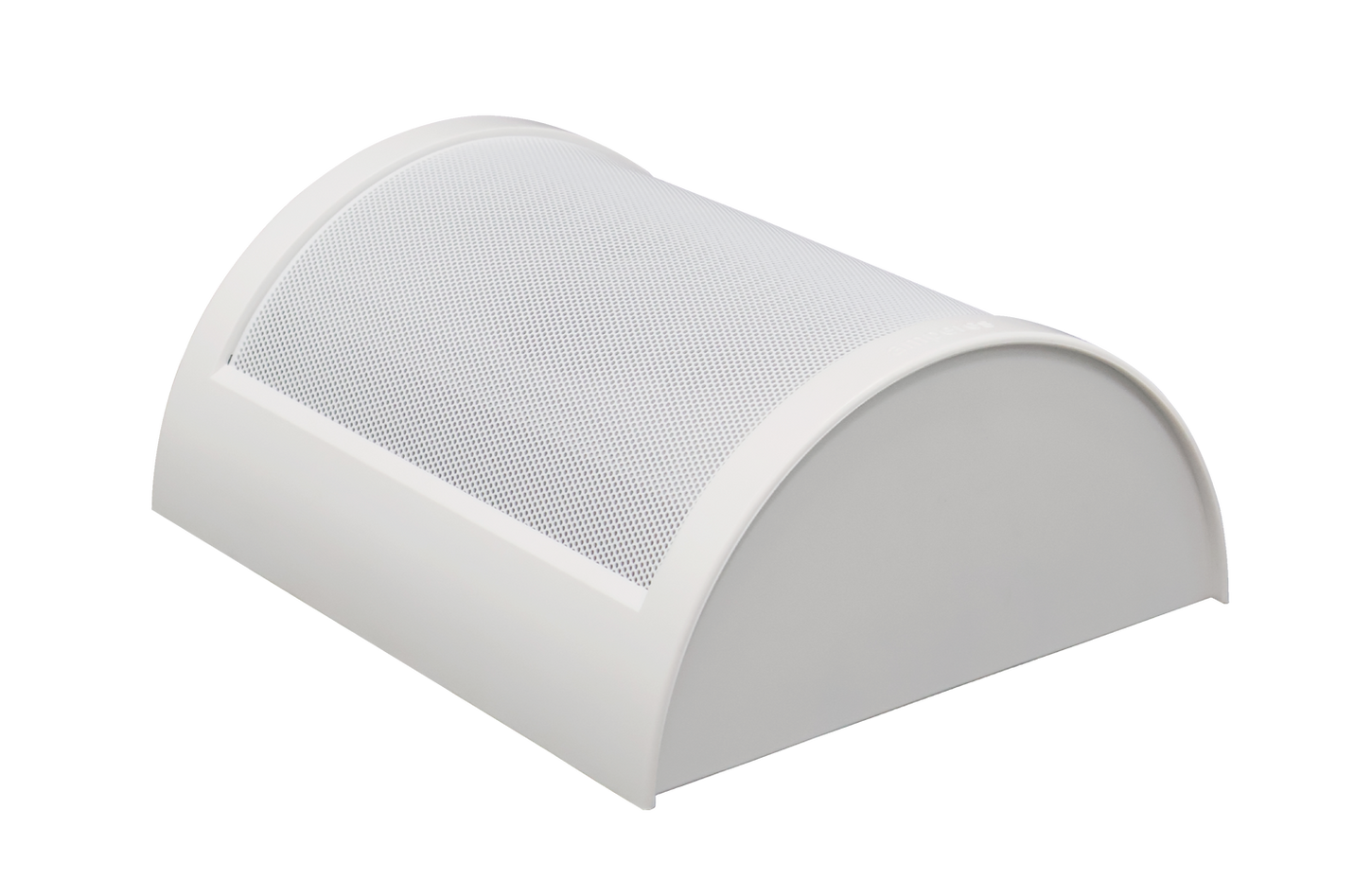

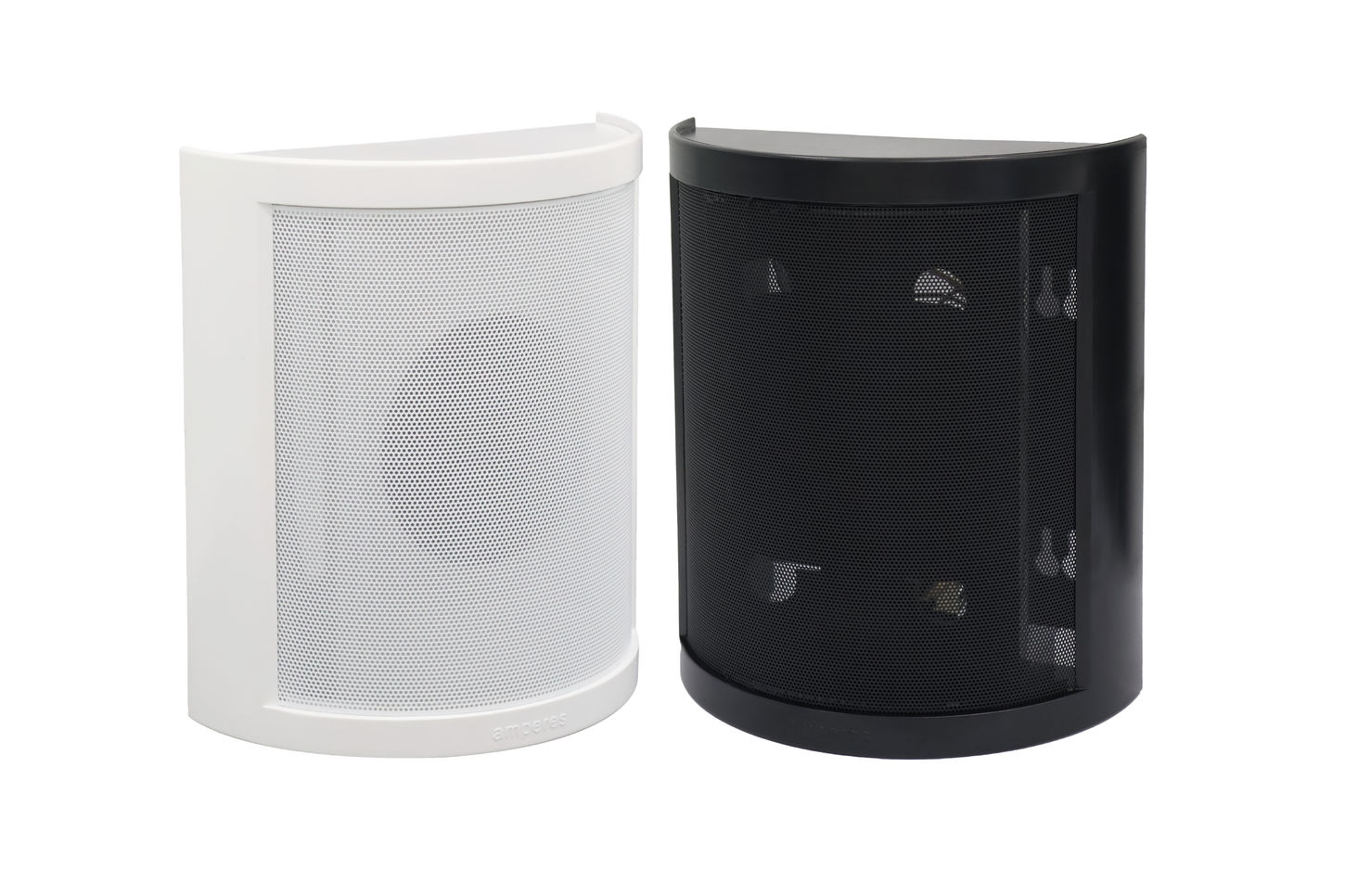

4" 10W 100V Surface Mount Speaker
BS410 is a half-moon surface speaker with a 4” driver and 1/3/6/10W taps, ideal for wall or ceiling mounting in general PA and EVAC applications.
5” dual cone speaker with 10W max
Durable ABS housing with UV protection
1 / 3 / 6 / 10W 100V line transformer included
Supports vertical, horizontal, and (ceiling) slab mounting
Introduction
BS410 is a surface-mount speaker with a unique half-moon design, ideal for general-purpose use in wall or ceiling slab installations. It supports both vertical and horizontal mounting and features a 4” driver with selectable 100V line taps at 1W, 3W, 6W, and 10W, making it suitable for a variety of installation areas and clear voice announcement needs, especially in EVAC systems.
Packing information
Carton size : 460 (L) x 420 (W) x 410 (H) mm
Gross weight : 16.70 kg
20 units per carton
BS410
Speaker
Power rating
10W 100V line
Diameter
4"
Cone type
Dual cone
Impedance (Ohm)
8
Frequency response
100 - 16 kHz
SPL @ 1W/m (+/- 3dB) 1 kHz
92 dB
Transformer
Power tapping
1 / 3 / 6 / 10W 100V line
Primary Impedance (Ohm)
10k / 3.3k / 1.6k / 1k
Secondary impedance (Ohm)
8
Physical
Grille / Enclosure
Metal / ABS
Overall size (W x H x D)
185 x 215 x 90 mm
Weight
760 g
Color
White
Note: The specification parameters may be changed, added, or omitted without prior notice.
4” dual cone speaker with 10W max for clear voice output
Durable ABS housing with UV protection to prevent yellowing
1 / 3 / 6 / 10W 100V line transformer included
Unique half-moon design
Supports vertical, horizontal, and (ceiling) slab mounting
Delivers clear and balanced sound in EVAC systems
Introduction
BS410 is a surface-mount speaker with a unique half-moon design, ideal for general-purpose use in wall or ceiling slab installations. It supports both vertical and horizontal mounting and features a 4” driver with selectable 100V line taps at 1W, 3W, 6W, and 10W, making it suitable for a variety of installation areas and clear voice announcement needs, especially in EVAC systems.
Packing information
Carton size : 460 (L) x 420 (W) x 410 (H) mm
Gross weight : 16.70 kg
20 units per carton
