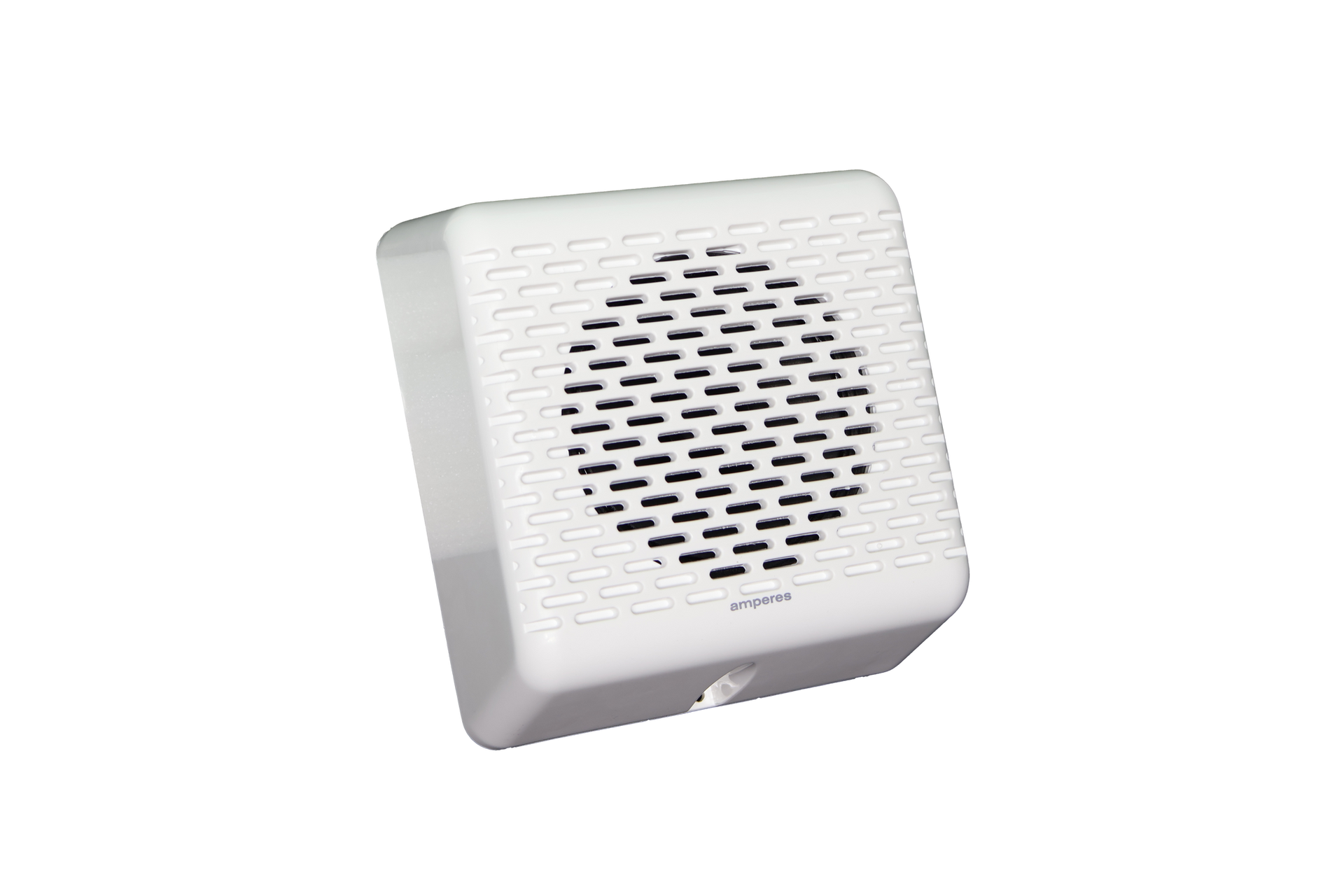

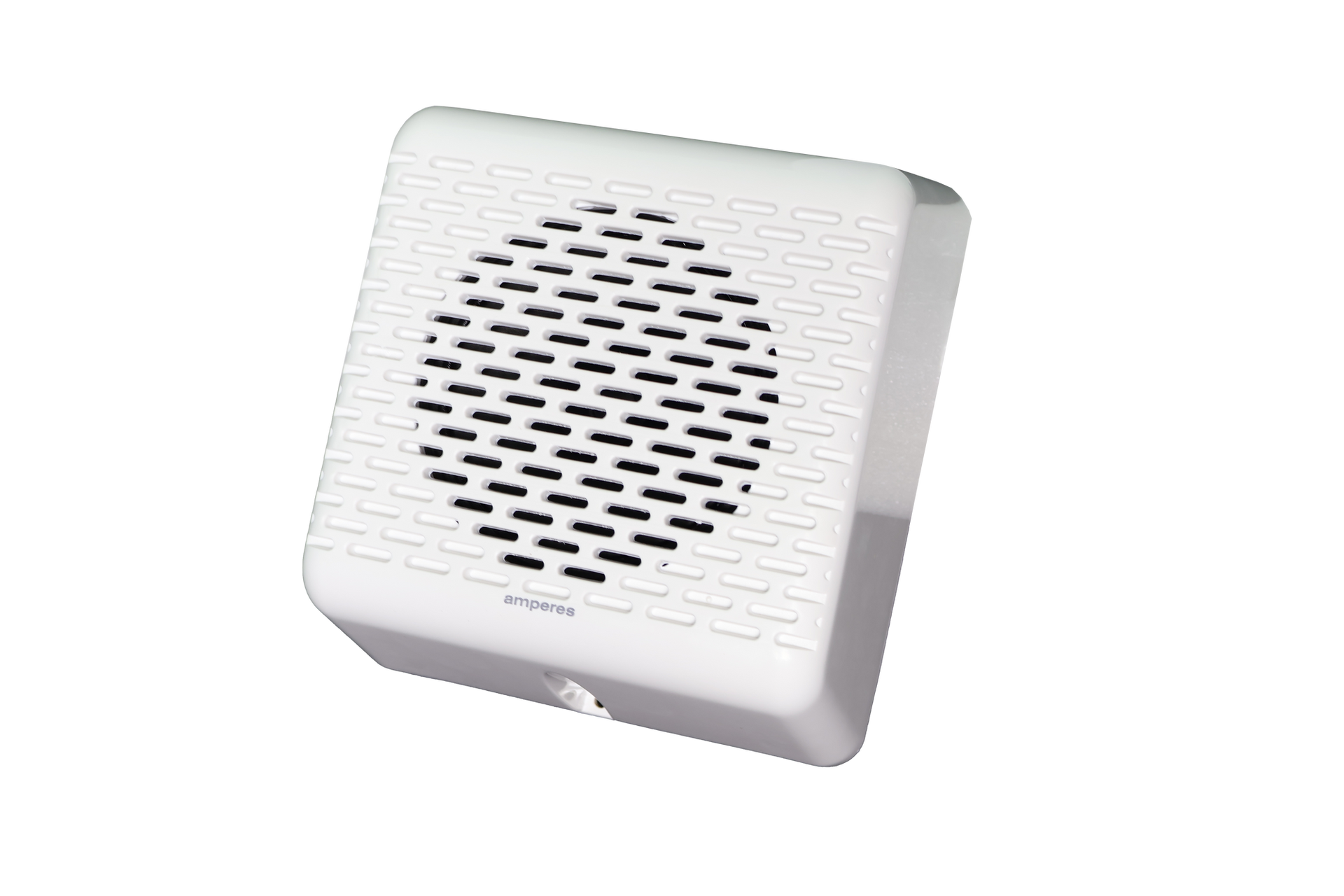

BS506

5" 6W 100V Surface Mount Speaker

BS506 is a compact wall-mounted speaker with a 5” dual cone driver and 1/3/6W 100V taps, built in a durable ABS casing for use in staircases, corridors, and classrooms.

5” dual cone speaker with 10W max

Durable ABS housing with UV protection

1 / 3 / 6W 100V line power taps

Suitable for BGM and emergency evacuation use

  • Introduction

    BS506 is a compact wall-mounted speaker designed for vertical installation in areas such as staircases, corridors, and classrooms. It features a 5” dual cone driver with selectable 100V power taps at 1W, 3W, and 6W. Its fully ABS enclosure ensures durability and rust resistance, making it ideal for high-humidity environments.


    Optional fire-retardant (FR) grade housing available on request.


    Model Variants:

    • BS506

    • BS506FR: Fire retardant (FR) enclosure

    Packing information

    • Carton size : 550 (L) x 460 (W) x 180 (H) mm

    • Gross weight : 10.0 kg

    • 12 units per carton


  • BS506

    Speaker


    Power rating

    6W 100V line

    Diameter

    5"

    Cone type

    Dual cone

    Impedance (Ohm)

    8

    Frequency response

    100 - 16 kHz

    SPL @ 1W/m (+/- 3dB) 1 kHz

    93 dB

    Transformer


    Power tapping

    1 / 3 / 6W 100V line

    Primary Impedance (Ohm)

    10k / 3.3k / 1.6k

    Secondary impedance (Ohm)

    8

    Physical


    Grille / Enclosure

    ABS Plastic

    Overall size (W x H x D)

    172 x 195 x 105 mm

    Weight

    780 g

    Color

    White

    Note: The specification parameters may be changed, added, or omitted without prior notice.

    • 5” dual cone speaker with 10W max for clear voice output

    • Durable ABS housing with UV protection to prevent yellowing

    • 1 / 3 / 6W 100V line transformer included

    • Suitable for BGM and emergency evacuation use

    • Ideal for wall mounting in staircases, corridors, and columns

  • Catalogue

    File Type: PDF

    Version: Year 24/25

    Instruction Manual

    File Type: PDF

    Version: -

    AutoCAD

    File Type: PDF

    Version: Year 24/25

    CE Marking

    File Type: PDF

    Version: -

Introduction

BS506 is a compact wall-mounted speaker designed for vertical installation in areas such as staircases, corridors, and classrooms. It features a 5” dual cone driver with selectable 100V power taps at 1W, 3W, and 6W. Its fully ABS enclosure ensures durability and rust resistance, making it ideal for high-humidity environments.


Optional fire-retardant (FR) grade housing available on request.


Model Variants:

  • BS506

  • BS506FR: Fire retardant (FR) enclosure

Packing information

  • Carton size : 550 (L) x 460 (W) x 180 (H) mm

  • Gross weight : 10.0 kg

  • 12 units per carton
