CS516
5" 6W 100V Dual Cone Ceiling Speaker (Ceiling Slabs)

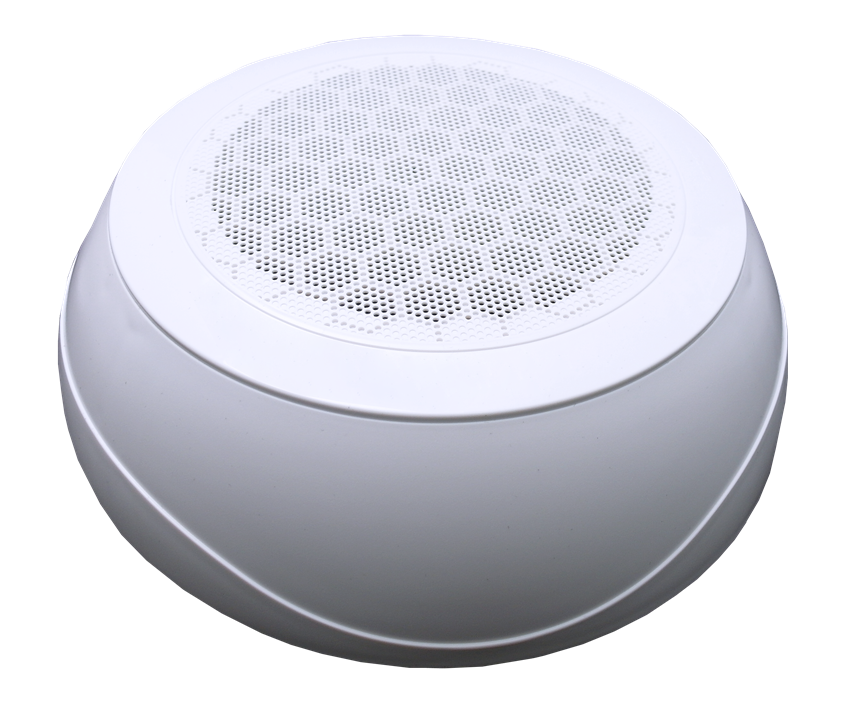

CS516 is a surface-mount ceiling speaker for solid slab ceilings, available in black or white, ideal where recessed speakers can’t be used.
5” dual cone speaker with 1.5 / 3 / 6W 100V line power taps
Ideal for mounting on solid ceilings (slab mount)
ABS rust resistant casing with honeycomb front grille
Available in both black and white finishes
Introduction
CS516 is a full-ABS surface-mount ceiling speaker designed for installations where false ceilings are unavailable, such as concrete slab ceilings. Featuring a unique honeycomb grille and selectable 1.5W, 3W and 6W power taps for 100V line systems, it provides reliable speech and background music reproduction across a variety of commercial applications.

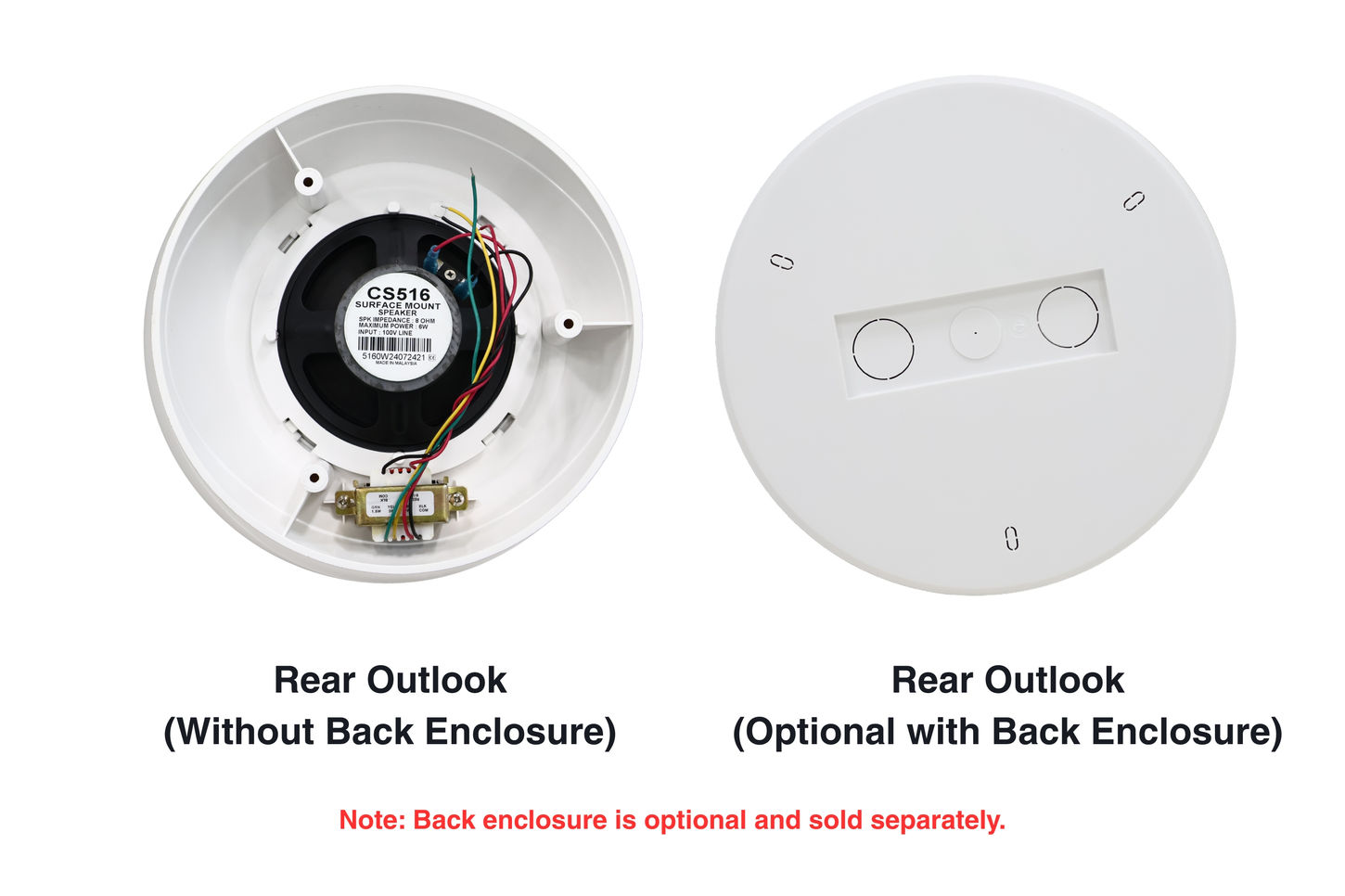

Available in white and black finishes, the CS516 is ideal for offices, retail stores, schools and public facilities requiring direct ceiling installation. An optional back cover is available to provide a fully enclosed speaker installation.
Note: Back enclosure is optional and sold separately.
Model Variants:
CS516 (White)
CS516 (Black): Available upon request
CS516B (B): Matching transformer 1/3/6/10W
Packing information
Carton size : 565 (L) x 430 (W) x 240 (H) mm
Gross weight : 12.40 kg
Net weight: 11.20 kg
16 units per carton
CS516 / CS516B(B)
Speaker
Power rating
6W 100V line nominal (max 10W)
Diameter
5" (125 mm)
Cone type
Dual cone
Impedance (Ohm)
8 Ohm
Frequency response
150 - 17 kHz
SPL @ 1W/m (± 3dB) 1 kHz
92 dB
Transformer
Power taps (100V line)
1.5W / 3W / 6W
Primary Impedance (Ohm)
6.7k / 3.3k / 1.67k Ohm
Secondary impedance (Ohm)
8 Ohm
Physical Specifications
Grille / Enclosure material
ABS grille and enclosure
Dimensions (diameter x height)
222 (D) x 65 (H) mm
Net weight
680 g
Color
White / Black
Note: The specification parameters may be changed, added, or omitted without prior notice. Last updated on 24 Mar 2026.
5” dual cone speaker with 1.5 / 3 / 6W 100V line power taps
Ideal for mounting on solid ceilings (slab mount)
Comes in black or white
Durable ABS housing
Features a stylish honeycomb grille design
Introduction
CS516 is a full-ABS surface-mount ceiling speaker designed for installations where false ceilings are unavailable, such as concrete slab ceilings. Featuring a unique honeycomb grille and selectable 1.5W, 3W and 6W power taps for 100V line systems, it provides reliable speech and background music reproduction across a variety of commercial applications.
Available in white and black finishes, the CS516 is ideal for offices, retail stores, schools and public facilities requiring direct ceiling installation. An optional back cover is available to provide a fully enclosed speaker installation.
Note: Back enclosure is optional and sold separately.
Model Variants:
CS516 (White)
CS516 (Black): Available upon request
CS516B (B): Matching transformer 1/3/6/10W
Packing information
Carton size : 565 (L) x 430 (W) x 240 (H) mm
Gross weight : 12.40 kg
Net weight: 11.20 kg
16 units per carton
