iEP1202
IP Emergency Desktop Paging Microphone
iEP1202 is a desktop emergency paging microphone with ultra-low latency, zone grouping, and pre-recorded message support, ideal for quick access in security or control rooms.
Choose between group or All Call paging
Supports up to 8 programmable zone groups
Allows multiple unit installations at different locations with high priority over other sources
Audio streaming with ultra-low latency
Introduction
iEP1202 is a desktop IP Emergency Paging Microphone designed for fast, direct access to public address systems from FCC control rooms, security desks, or guard houses. An upgrade from the iEP1200, it features 8 programmable zone groups for targeted paging and supports up to 4 pre-recorded messages for routine announcements.
With enhanced IP technology, it delivers ultra-low latency audio streaming and maintains high priority over background music and normal paging consoles. Configuration is simple via a user-friendly web browser interface, making iEP1202 a reliable and efficient emergency communication tool.
Packing information
Carton size : 525 (L) x 270 (W) x 85 (H) mm
Gross weight : 1.9 kg
1 unit(s) per carton
Introduction
iEP1202 is a desktop IP Emergency Paging Microphone designed for fast, direct access to public address systems from FCC control rooms, security desks, or guard houses. An upgrade from the iEP1200, it features 8 programmable zone groups for targeted paging and supports up to 4 pre-recorded messages for routine announcements.
With enhanced IP technology, it delivers ultra-low latency audio streaming and maintains high priority over background music and normal paging consoles. Configuration is simple via a user-friendly web browser interface, making iEP1202 a reliable and efficient emergency communication tool.
Packing information
Carton size : 525 (L) x 270 (W) x 85 (H) mm
Gross weight : 1.9 kg
1 unit(s) per carton

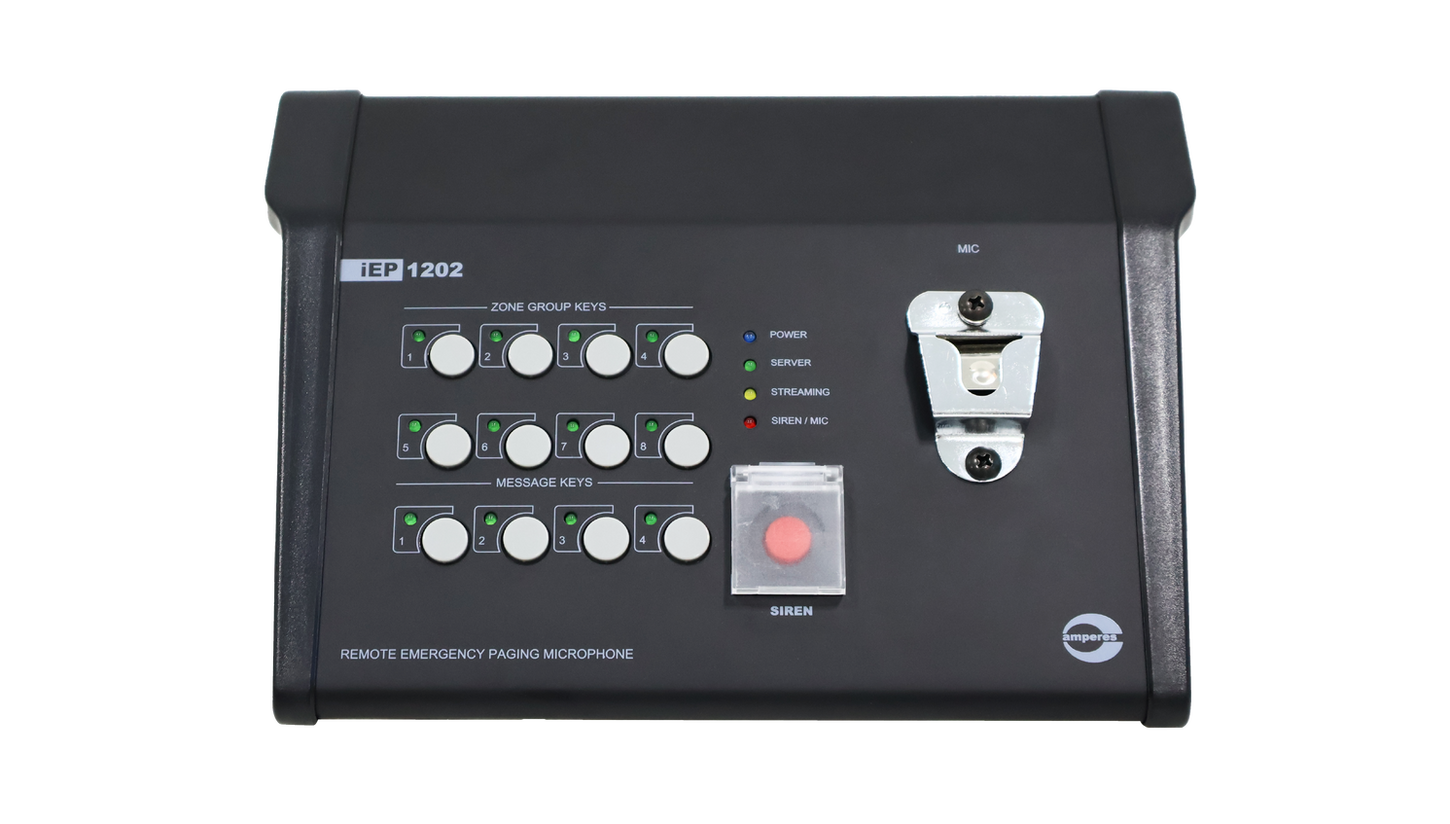

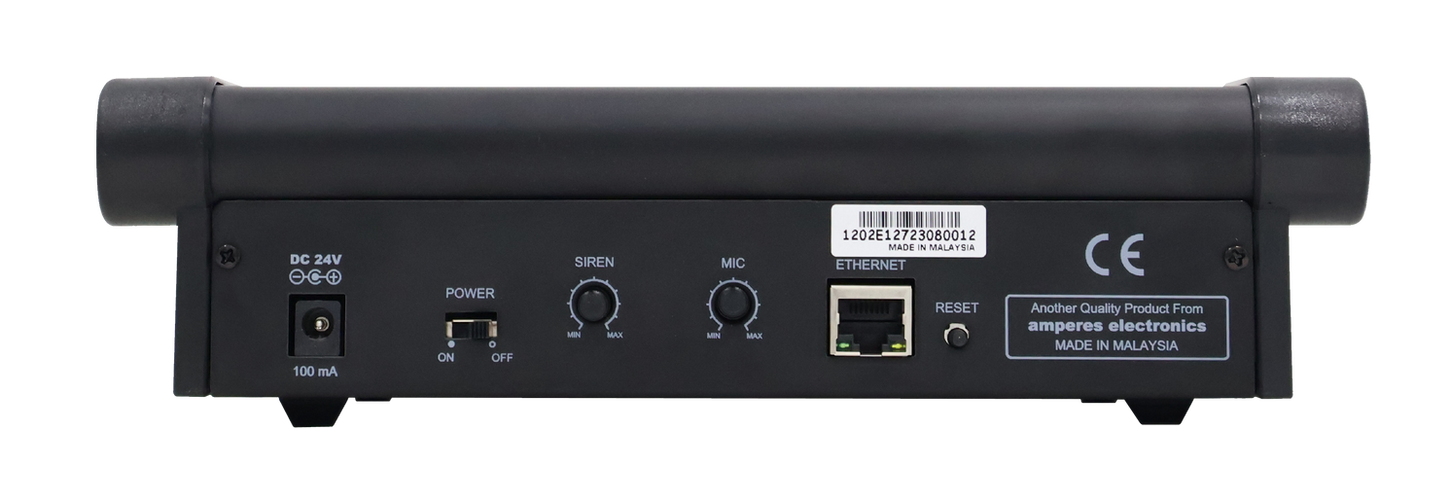

iEP1202 - Kindly zoom to view (Desktop)
Power Requirement
Operating voltage
24V DC
Power consumption (DC)
Idle: 1.3W
Active: 1.8W
Current consumption (DC)
Idle: 53mA
Active: 72mA
Connectivity / Communications
Data
RJ45 (10/100 Base-T)
Protocols
TCP / IP, UDP, IGMP, HTTP
Priority protocols
ADMP, ADP
Audio conversion format
IMA ADPCM, 36 kHz / 16-bit
Transmission mode
Unicast & Multicast
Paging encoding format
G.722
Zone groupings
8
Zones per group
128 zones per group (248 for All Call)
Audio
Microphone
Handheld condenser omnidirectional microphone
Siren frequency
Continuous at 8 kHz
Message
Duration per message
2 minutes
Total duration
590 seconds
Max files
20
Message storage
4 (configuration via browser)
Upload format
MP3, WAV
Download format
WAV

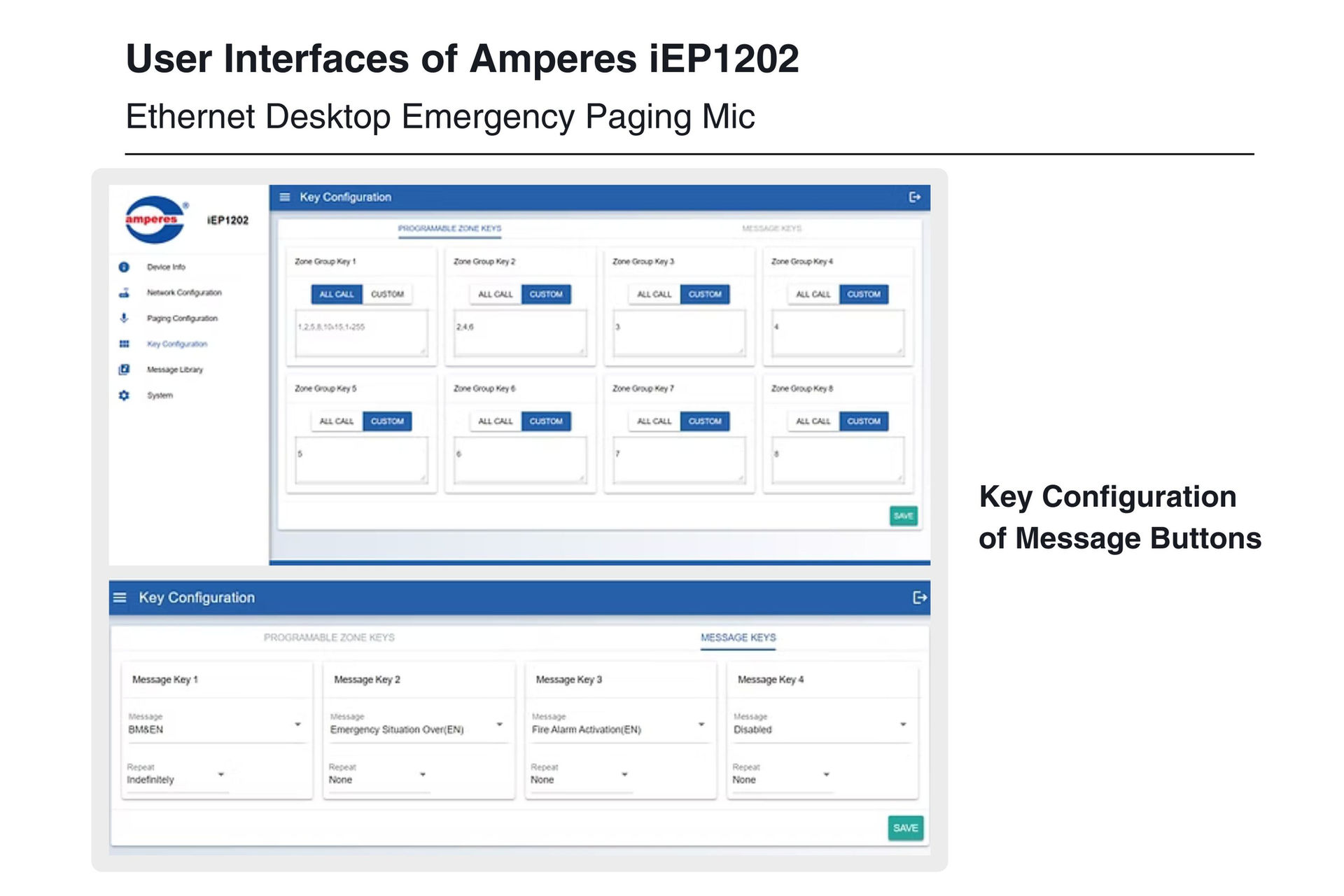

User interface
Web browser interface (Google Chrome V90+ preferred)
Physical Dimensions & Weight
Dimensions (W x H x D)
248 × 65 × 190 mm (excluding microphone)
Weight (kg)
0.9 kg
Note: The specification parameters may be changed, added, or omitted without prior notice. Last updated on 9 Oct 2025.
Zone grouping allows paging to specific areas instead of all zones
Programmable message buttons with various playback options
Allows multiple unit installations at different locations with high priority over other paging sources
Enhanced audio streaming with ultra-low latency
Supports up to 8 programmable zone groups
Choose between group paging or All Call paging
Stores up to 4 messages, each up to 2 minutes long
Built-in siren tone with highest priority and all-zone activation
Separate volume control for paging and chime
Easy setup with a user-friendly web browser interface
