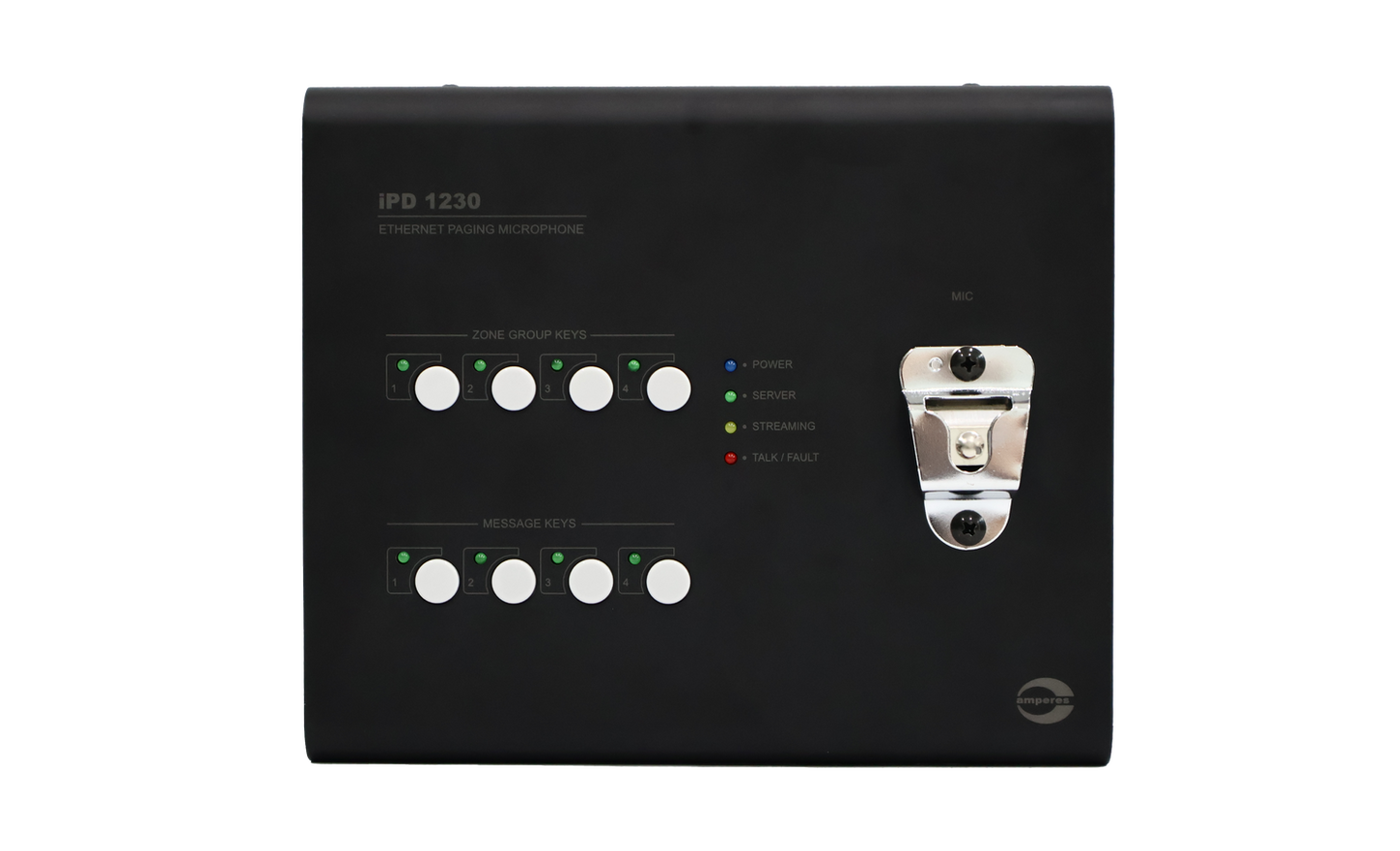

iPD1230
IP Network Wall Mount Paging Panel
iPD1230 is a wall-mounted Ethernet paging station with handheld mic, programmable zone buttons and message playback, offering web-based setup and targeted localized zone paging for Amperes iPX systems.
4 programmable zone group buttons (up to 8 zones each)
Wall-mounted paging station with handheld condenser mic
4 message banks with 590 seconds total recording time
Powered via local adapter or PoE (with splitter)
Introduction
iPD1230 is a wall-mounted Ethernet paging station for localized zone paging in Amperes iPX systems, powered by either a local adapter or PoE switch for flexible network installation.
It features a handheld condenser microphone, four programmable zone/group selection buttons, and four message banks (up to 590 seconds total) for quick announcement or message playback. Ideal for hospitals, factories, warehouses, schools, hotels, and retail areas, it enables targeted paging without disturbing other zones.
All settings are configured via a web browser, making it easy to install and manage in decentralized paging setups. With its durable wall-mount design and flexible zoning, iPD1230 is ideal for decentralized paging in commercial and industrial environments.
See also iPD1220 - IP Network Desktop Paging Microphone
Packing information
Carton size : 525 (L) x 270 (W) x 85 (H) mm
Gross weight : 1.90 kg
1 unit per carton
Introduction
iPD1230 is a wall-mounted Ethernet paging station for localized zone paging in Amperes iPX systems, powered by either a local adapter or PoE switch for flexible network installation.
It features a handheld condenser microphone, four programmable zone/group selection buttons, and four message banks (up to 590 seconds total) for quick announcement or message playback. Ideal for hospitals, factories, warehouses, schools, hotels, and retail areas, it enables targeted paging without disturbing other zones.
All settings are configured via a web browser, making it easy to install and manage in decentralized paging setups. With its durable wall-mount design and flexible zoning, iPD1230 is ideal for decentralized paging in commercial and industrial environments.
See also iPD1220 - IP Network Desktop Paging Microphone
Packing information
Carton size : 525 (L) x 270 (W) x 85 (H) mm
Gross weight : 1.90 kg
1 unit per carton
iPD1230 - Kindly zoom to view (Desktop)
Power Requirements
Operating voltage
24V DC
Current consumption
0.1A (2.4W)
Voltage source
Local adaptor or PoE (via split connector)
Connectivity
Microphone
Condenser microphone w/ omnidirectional
iPD1220: Gooseneck with screw base
iPD1230: Handheld mic (Push-to-Talk)
Connectivity
10/100 Base-T
Protocols
Unicast and Multicast
Transmission mode
TCP/IP, UDP, IGMP, HTTP
Zone grouping
4 groups
Zones per group
8 / All-Call
Audio conversion
IMA ADPCM, 36 kHz, 16-bit
Message group
4 groups
Message duration
590 seconds in total
Max files
20 files
File format
MP3, 64 kbps
User interface
Web browser interface (Google Chrome V90+ recommended)
Operating Conditions
Operating temperature
-10°C to 60°C
Relative humidity
<80%
Physical Specifications
Dimensions (W x H x D)
220 x 180 x 40 mm (excl. microphone)
Net weight
950g
Note: The specification parameters may be changed, added, or omitted without prior notice. Last updated on 17 May 2026.

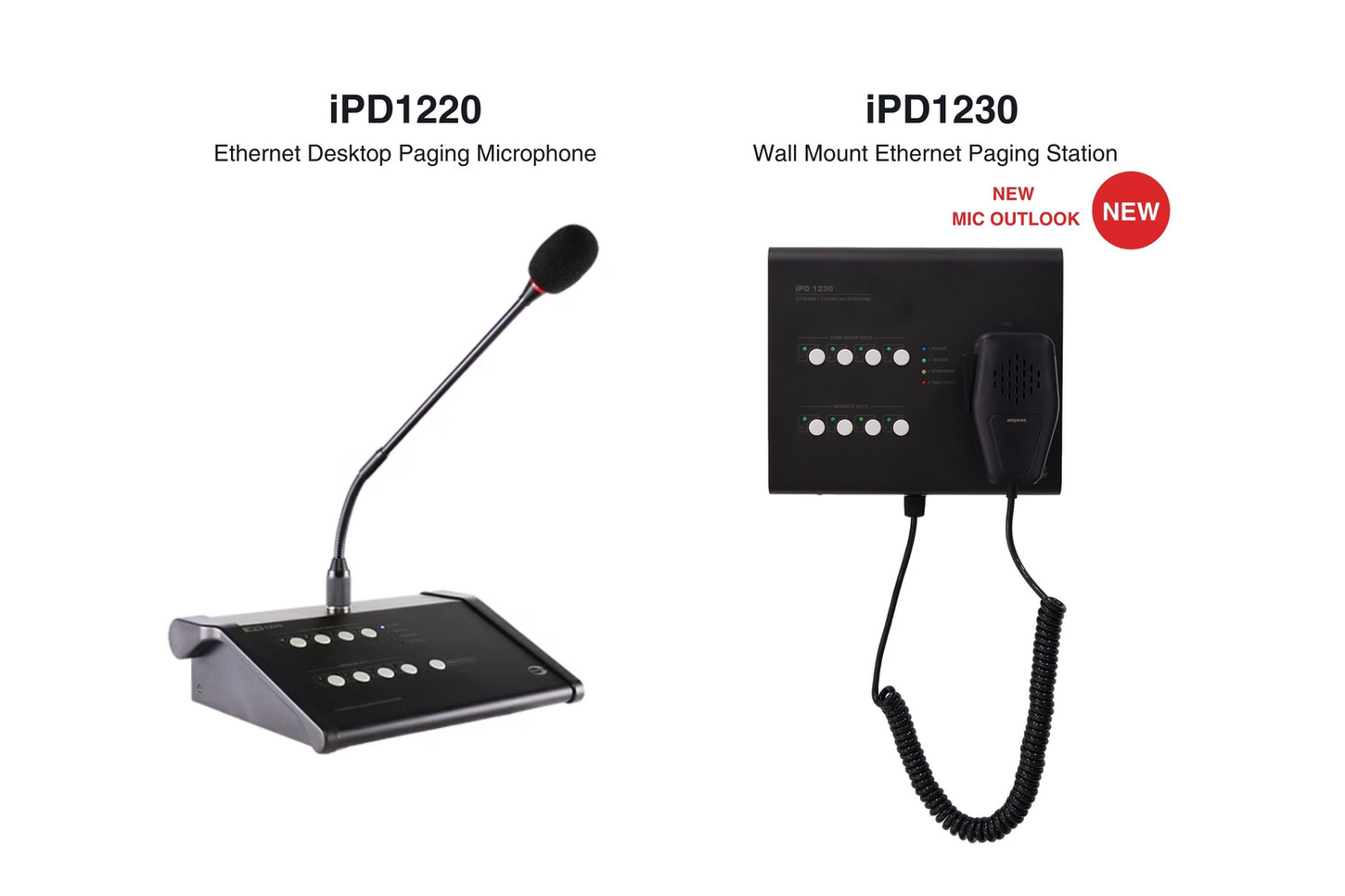

Common features for iPD1220 and iPD1230:
Localized zone paging station
4 programmable zone group selections (up to 8 zones per group)
4 message banks (total 590 seconds recording)
Web browser configuration
Adjustable microphone volume
Powered via local adapter or PoE (with splitter)
Key features for iPD1230:

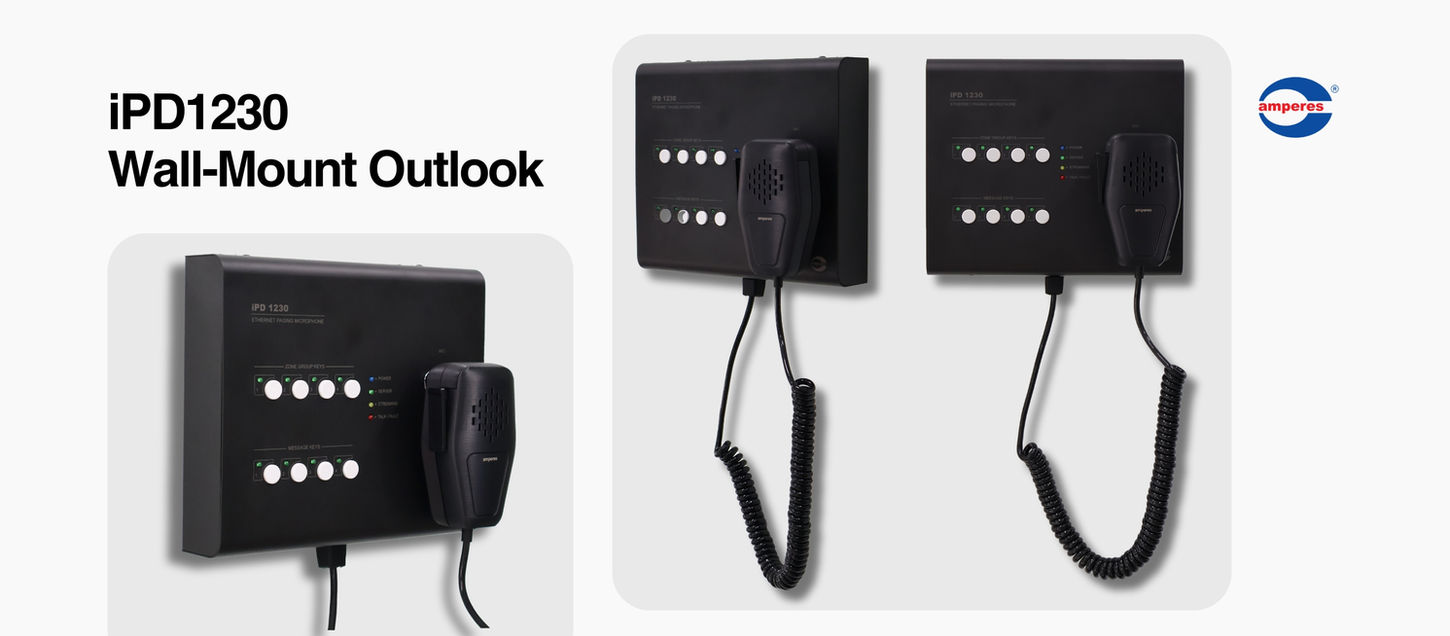

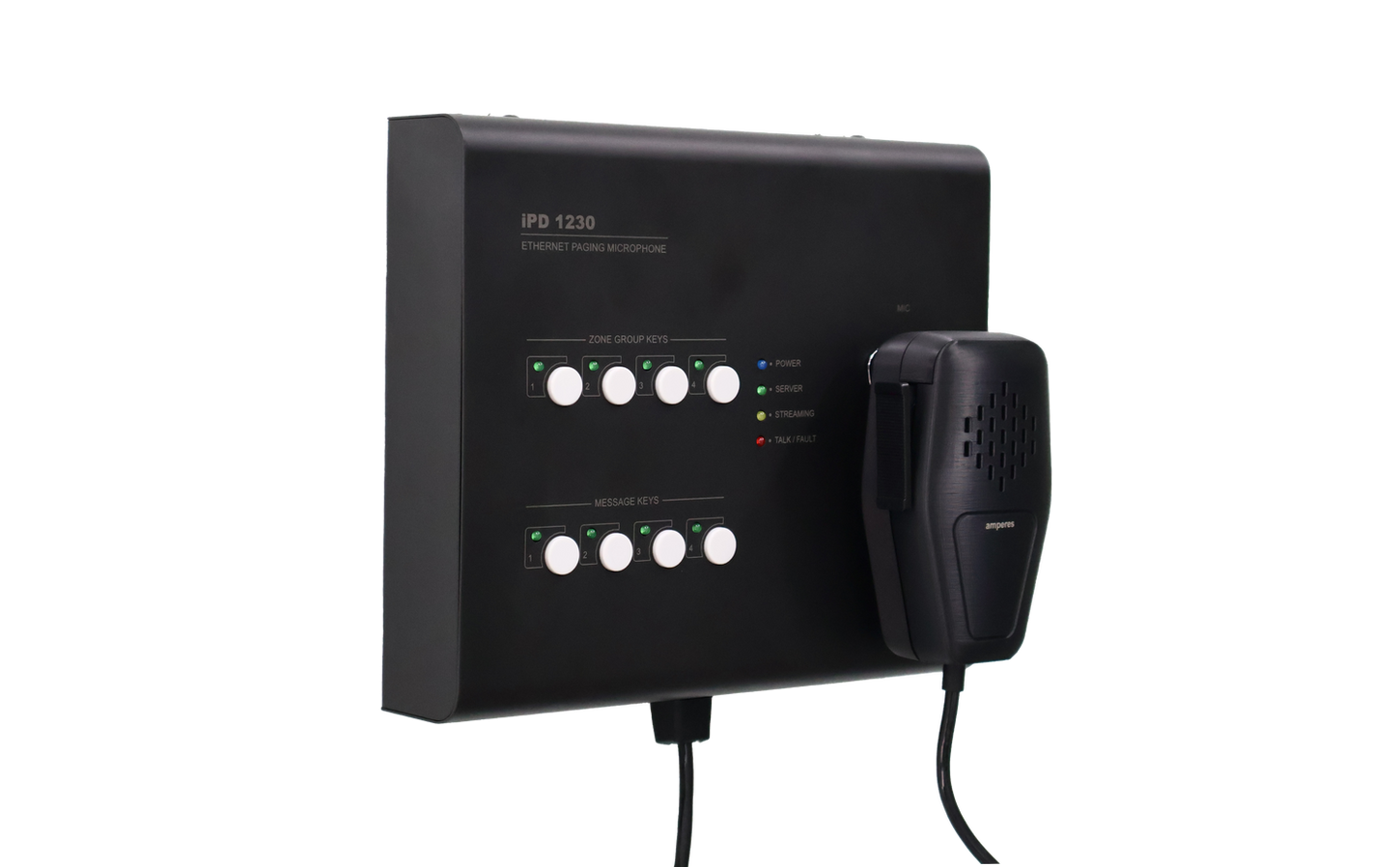

Wall-mounted paging station (for localized zone paging)
Handheld condenser microphone with press-to-talk (PTT)
Suitable for hospitals, factories, schools, warehouses, and hotels

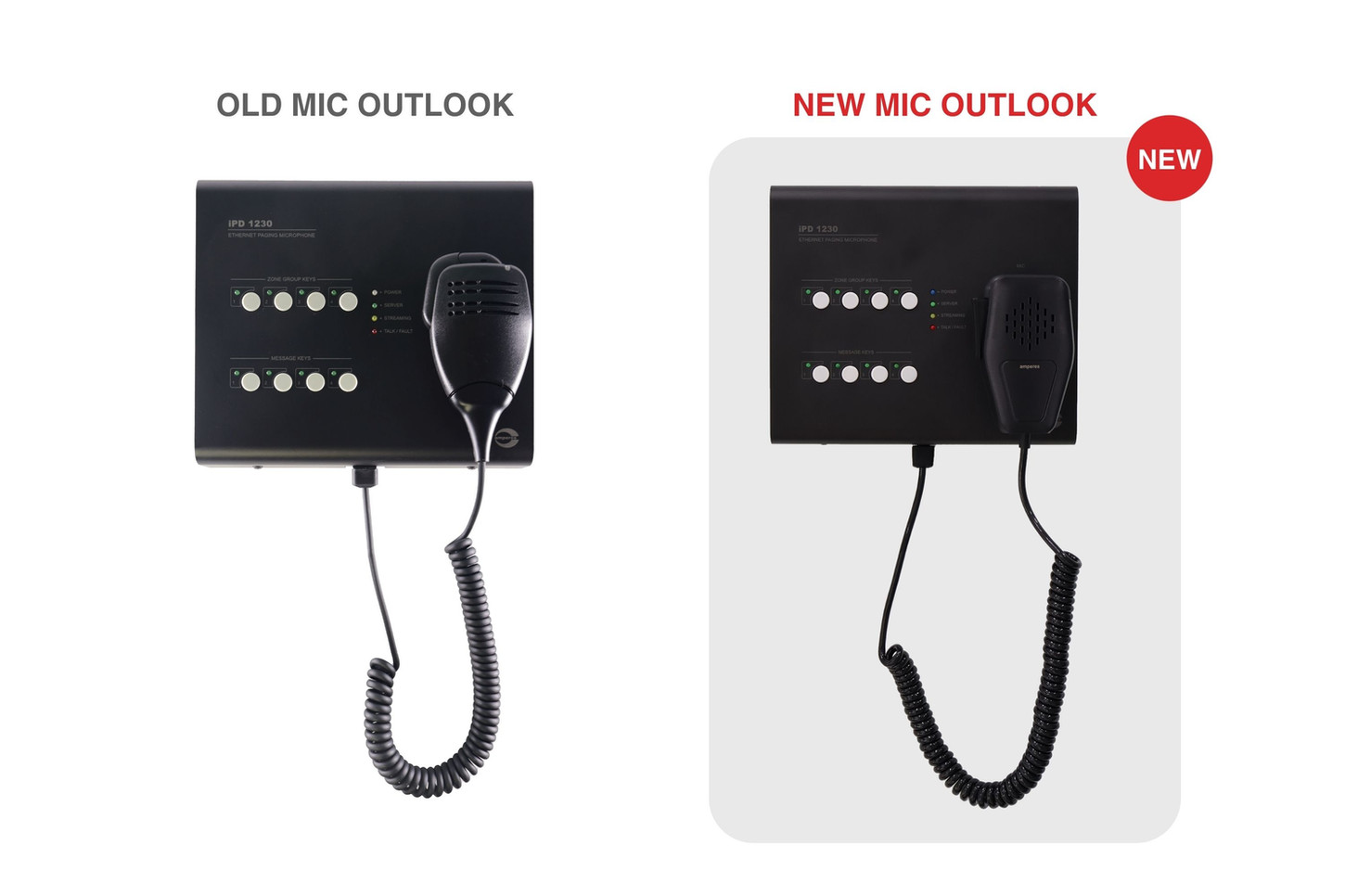

Handheld Condenser Mic: Upgrade Highlights
Improved mic grill for clearer voice pickup
Enhanced internal mic receiver stability
Larger PTT paddle for better tactile control
Reduced surface shine for better grip
Stronger cable strain relief
More durable housing for heavy-duty environments
