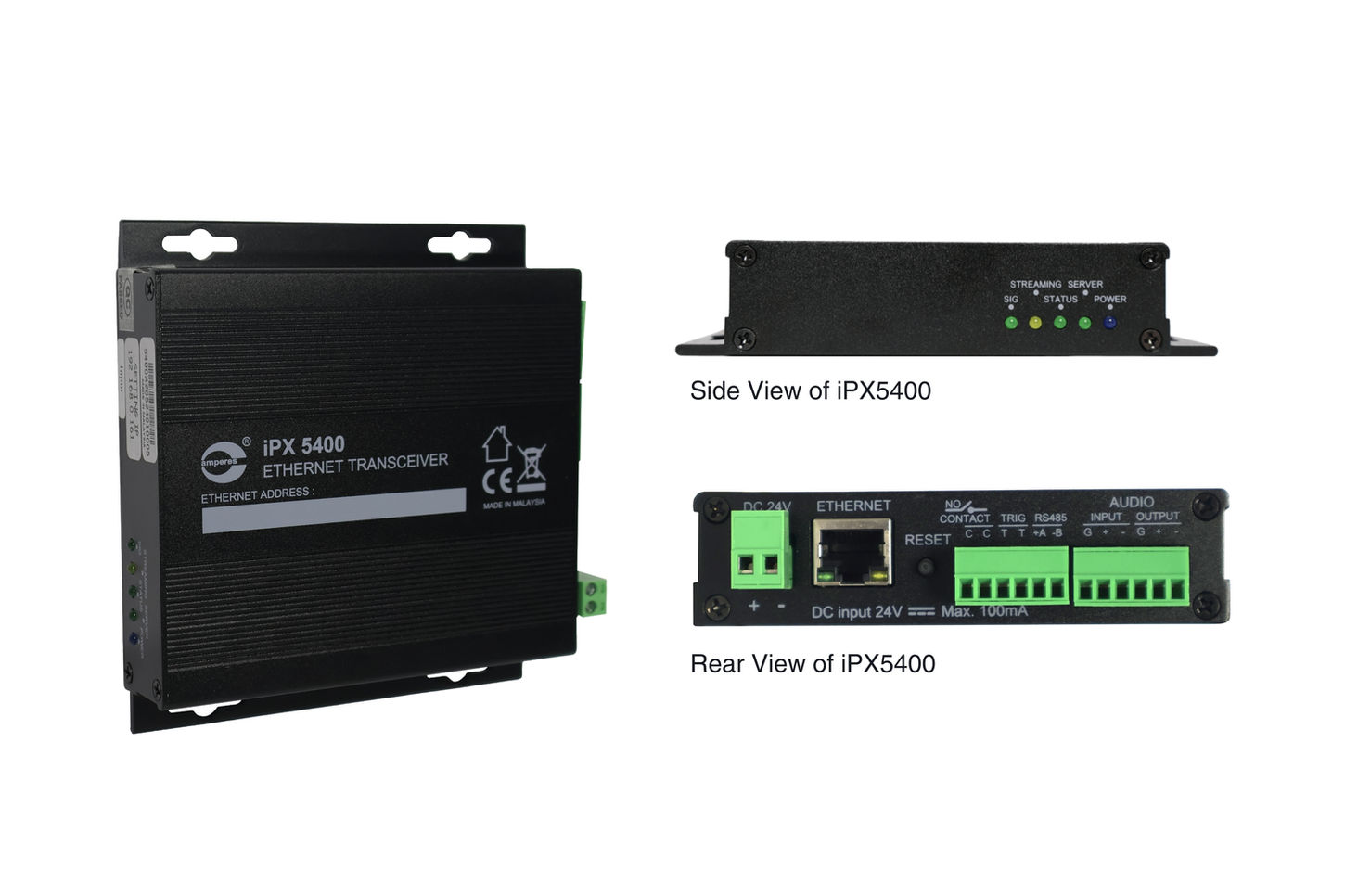

iPX5400
IP Audio & Data Transceiver
iPX5400 is a pair-based duplex IP transceiver for long-distance audio and data transmission over LAN or fiber, allowing peer-to-peer paging between remote locations without laying new cable and IP controller.
Ultra low latency audio and data transmission (≈20 ms)
Supports simplex or duplex audio and RS485 streaming
Dry contact input for triggering events
Two streaming modes: always on or trigger-based
Introduction
iPX5400 is a pair-based duplex IP transceiver designed to transmit audio and RS485 data over LAN, direct UTP connection, or fiber (via converter) for long-distance communication.
It allows simple peer-to-peer paging and audio transmission without requiring a full IP controller, making it a simple solution for remote installations. Ideal for applications such as linking a guard house to a main building via fiber (reducing lightning surge risks and signal loss issues that often found common with copper cables), rack-to-rack transmission over existing LAN infrastructure, or integration with wireless access points where new cabling is not feasible.
Packing information
Carton size : 155 (L) x 105 (W) x 125 (H) mm
Gross weight : 1.0 kg (Including adapter)
1 unit per carton
Introduction
iPX5400 is a pair-based duplex IP transceiver designed to transmit audio and RS485 data over LAN, direct UTP connection, or fiber (via converter) for long-distance communication.
It allows simple peer-to-peer paging and audio transmission without requiring a full IP controller, making it a simple solution for remote installations. Ideal for applications such as linking a guard house to a main building via fiber (reducing lightning surge risks and signal loss issues that often found common with copper cables), rack-to-rack transmission over existing LAN infrastructure, or integration with wireless access points where new cabling is not feasible.
Packing information
Carton size : 155 (L) x 105 (W) x 125 (H) mm
Gross weight : 1.0 kg (Including adapter)
1 unit per carton
iPX5400 - Kindly zoom to view (Desktop)
Power Requirements
Operating voltage
24V DC (18-24V DC)
Current consumption
60mA (1.5W)
Connectivity
Data interface
RJ45 (10/100Base-T)
Protocols
TCP/IP, UDP, IGMP, HTTP
Priority protocols
UDMP, ADP
Analogue In / Out (Peak-to-Peak)
1.25V rms (line level)
Input impedance
10k Ohm
Input capacitance
100 pF
THD + Noise
< 1% (0.1%)
S/N ratio (Full scale signal)
83 dB
Conversion format
WAV PCM, 48kHz, 16-bit (bidirectional & half duplex)
Data
UART RS485 (bidirectional & full duplex)
User interface
Web browser interface (Google Chrome V90+ recommended)
Firmware upgrade
Via web browser
Operating Conditions
Operating temperature
-20°C to 80°C
Relative humidity
<70%
Physical Specifications
Dimensions (W x H x D)
120 x 28 x 132 mm
Net weight
300g
Note: The specification parameters may be changed, added, or omitted without prior notice. Last updated on 14 May 2026.
Ultra-low latency audio and data transmission (≈20 ms)
Supports simplex (music) and full-duplex (paging + RS485 data)
Two streaming modes: Always-On or trigger-activated (API supported)
Dry contact input for remote triggering
Relay output for external device control
Supports automatic link crossover
Easy setup via web browser and PMX software compatible
Operates independently without network switch or IP server (iPX5101 MK II controller)
