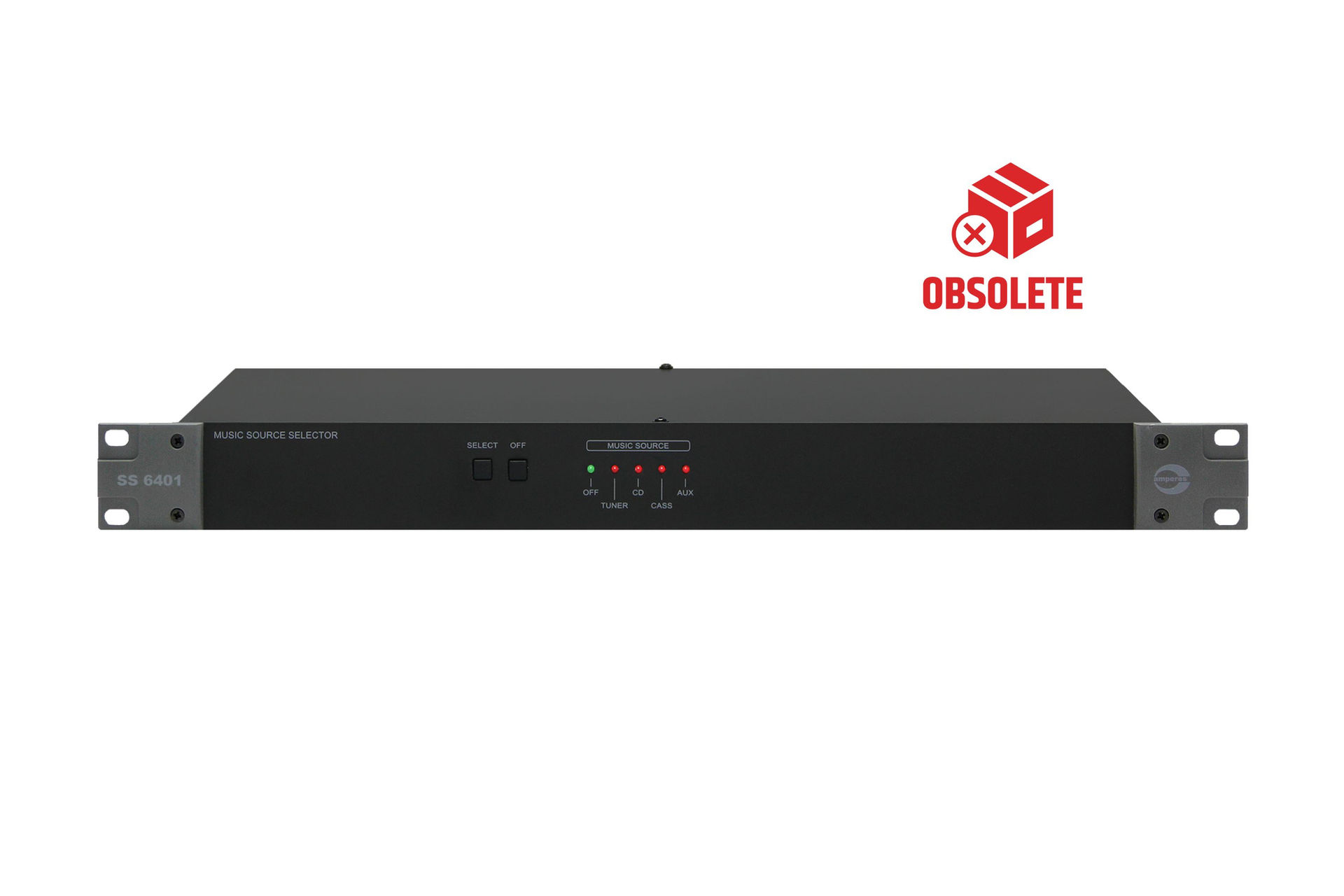

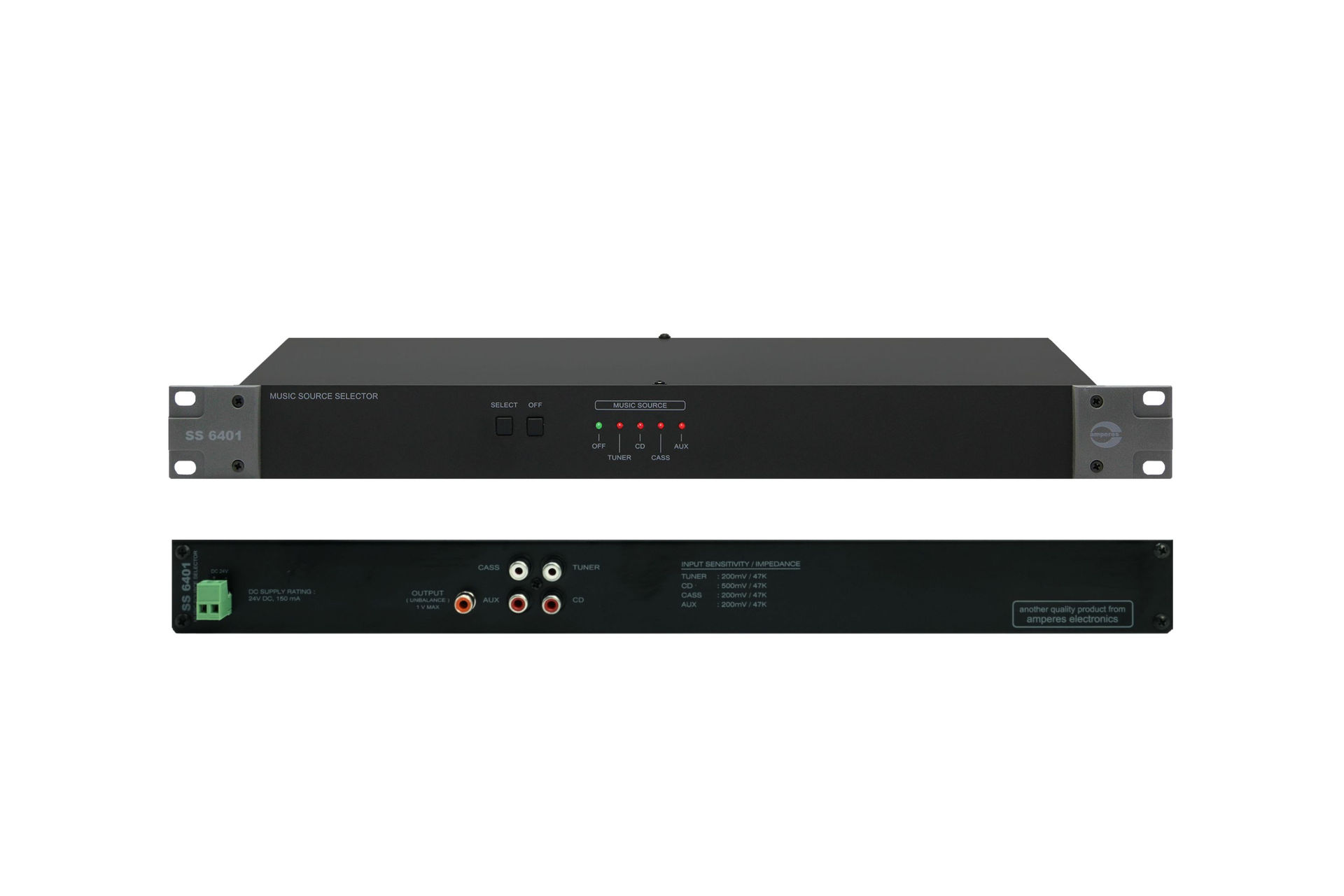

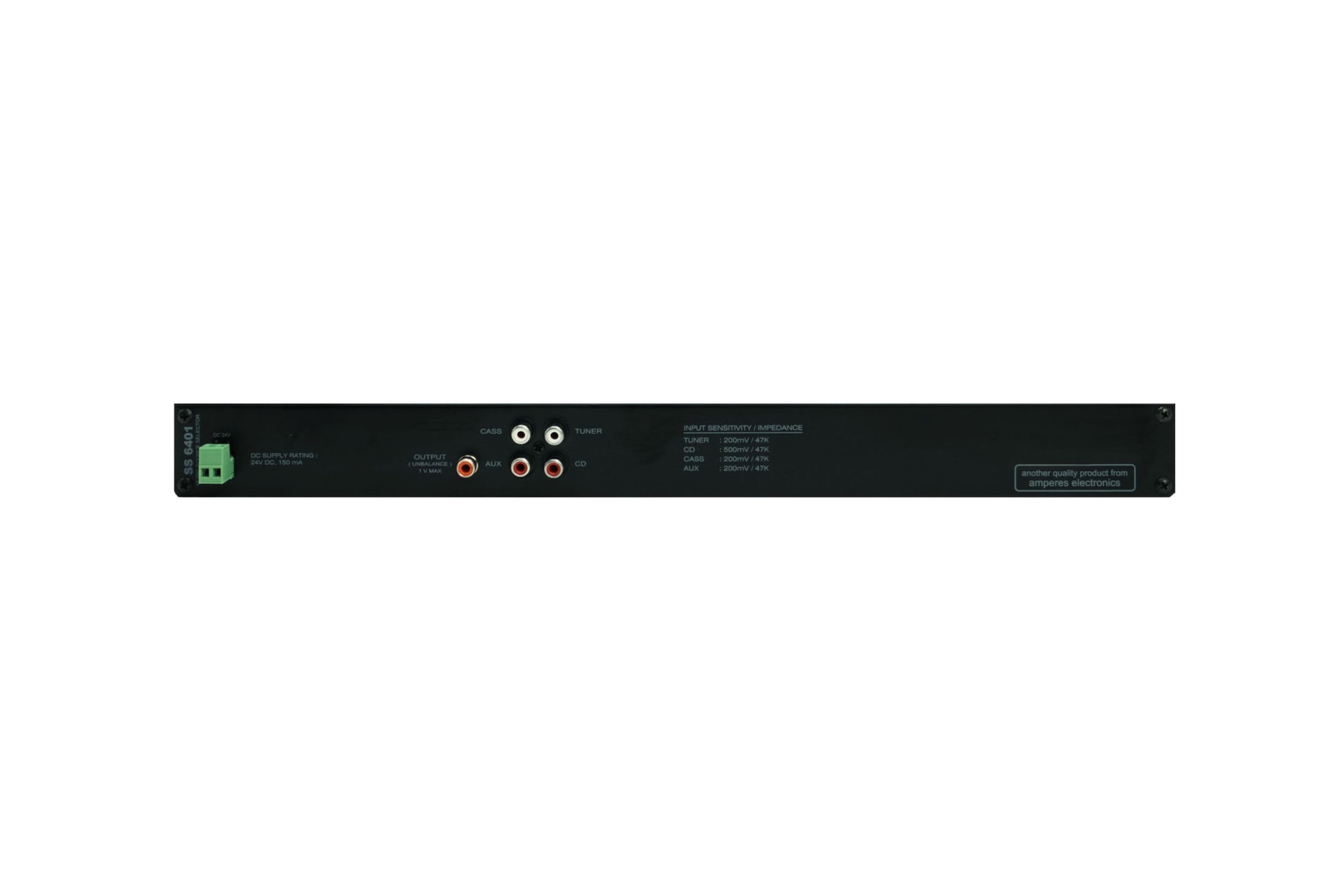

SS6401
4 Ch BGM Source Selector
SS6401 is a 4-input BGM source selector with RCA jacks. Suitable for music selection before input to mixer.
Supports 4 mono inputs from media players for PA systems
Auto-balances input levels for consistent audio
Easy selection of 4 audio sources
Level balancing circuit maintains stable output volume
Introduction
SS6401 is a 4-input BGM source selector with RCA connectors, designed for seamless music selection before feeding into a mixer. It provides a mono output optimized for PA systems, with built-in level equalization to ensure consistent volume across different audio sources, eliminating the need for manual gain adjustments.
Packing information
Carton size : 555 (L) x 295 (W) x 95 (H) mm
Gross weight : 2.50 kg
1 unit per carton
Introduction
SS6401 is a 4-input BGM source selector with RCA connectors, designed for seamless music selection before feeding into a mixer. It provides a mono output optimized for PA systems, with built-in level equalization to ensure consistent volume across different audio sources, eliminating the need for manual gain adjustments.
Packing information
Carton size : 555 (L) x 295 (W) x 95 (H) mm
Gross weight : 2.50 kg
1 unit per carton
SS6401
Power requirements
Operating voltage
24V DC
Power consumption
3.6W ; 0.15A
Input, output, & data
Input connections
RCA mono
Input level / impedance
CD : 2V / 47k Ohm Tuner : 600 mV / 10k Ohm Cass : 500 mV / 10k Ohm Aux : 1.25V / 20k Ohm
Output connection
RCA mono ; 1V 600 Ohm
Gain / attenuation
CD : -6 dB Tuner : 4 dB Cass : 6 dB Aux : -2 dB
Selection
Daisy chain
Case
Dimensions (W x H x D)
482 x 44 x 180 mm
Weight
1.8 kg
Note: The specification parameters may be changed, added, or omitted without prior notice.
Supports 4 mono inputs from media players for PA systems
Auto-balances input levels for consistent audio
Easy selection of 4 audio sources
Level balancing circuit maintains stable output volume
