TI6100
PABX Telephone Paging Interface
TI6100 is a PABX to PA interface that allows paging from any keyphone extension to speakers. Suitable for analogue / hybrid keyphone systems.
Connects to any PABX extension for PA system integration
Balanced output connects to the line input of any PA mixer
Built-in ultra low noise reduction
Automatically disconnects when paging ends
Introduction

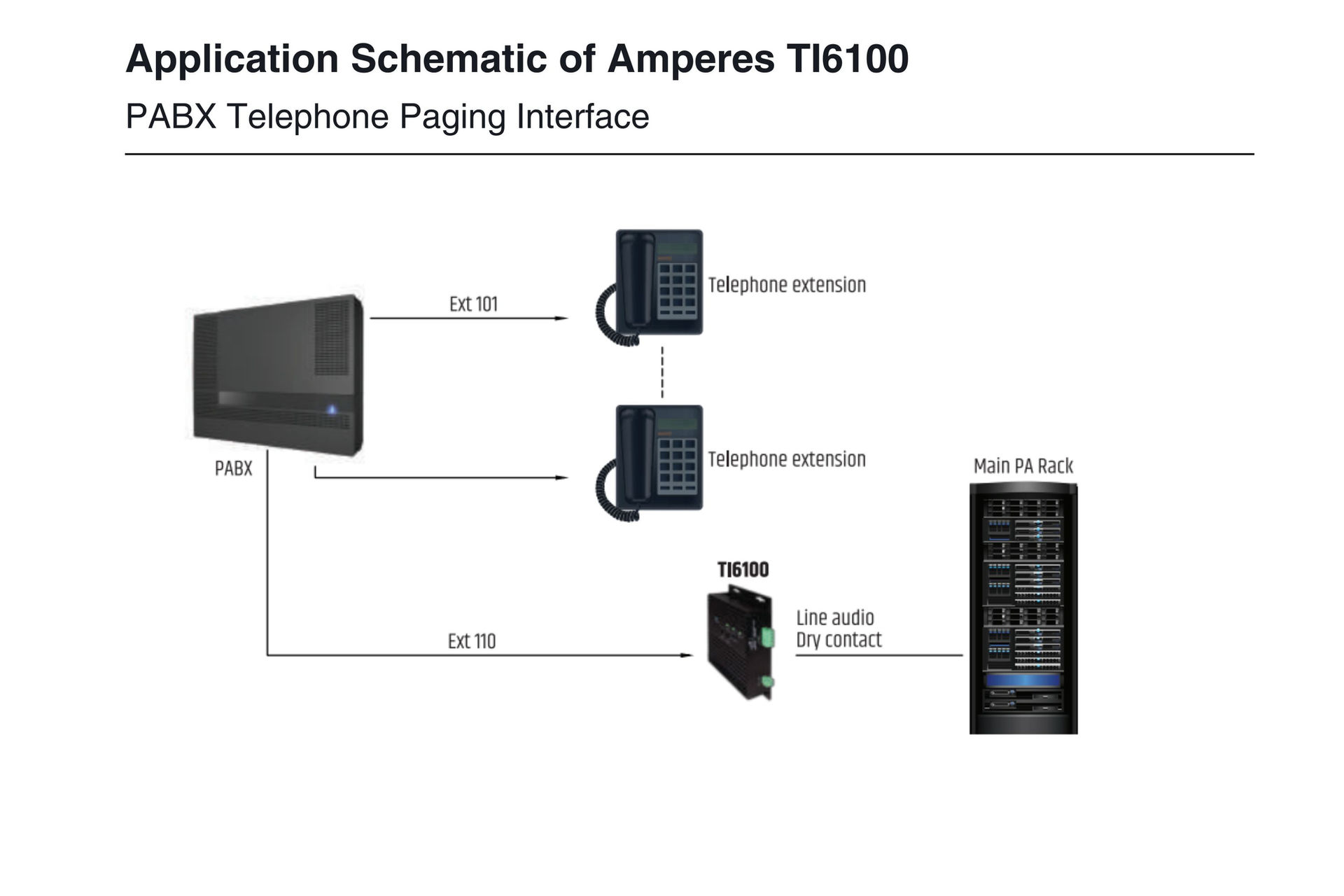

TI6100 is a PABX to PA interface that allows all-call paging from any keyphone extension to PA speakers. Suitable for analogue or hybrid PABX systems, it includes noise reduction, relay activation and can be integrated with Ampere's IPX range for IP-based systems.
Packing information
Carton size : 155 (L) x 105 (W) x 125 (H) mm
Gross weight : 0.90 kg
1 unit(s) per carton
Introduction
TI6100 is a PABX to PA interface that allows all-call paging from any keyphone extension to PA speakers. Suitable for analogue or hybrid PABX systems, it includes noise reduction, relay activation and can be integrated with Ampere's IPX range for IP-based systems.
Packing information
Carton size : 155 (L) x 105 (W) x 125 (H) mm
Gross weight : 0.90 kg
1 unit(s) per carton
TI6100
Power requirements
Operating voltage
24V DC
Power consumption
1.13W
Input, output, & indicators
Input connection
Tel line : RJ11RS485 ; mini Phoenix
Input sensitivity
440 mV
Input impedance
150 Ohm
Frequency response
800 - 8 kHz
Output level
1.2V rms ; balanced
Volume controls
Paging / Music
Relay contact
DPDT
Contact rating
3A
Indicators
Power, signal, call, relay
Case
Dimensions (W x H x D)
100 x 40 x 147 mm
Weight
0.32kg
Note: The specification parameters may be changed, added, or omitted without prior notice.
Built-in ultra low noise reduction
Relay contact for external device activation
Balanced audio output for stable signal transmission
Balanced line output for connection to any PA mixer's line input
Independant volume controls for chime and paging
Automatically disconnects when paging ends
Works with most hybrid PABX extension for PA system integration
