AC3801

8 Duty 1 Standby Manual Amp Changeover

AC3801 is a manual amplifier changeover unit that supports 8 duty and 1 standby amplifier with cascading, priority changeover, and AFS for uninterrupted audio operation.

Expandable to more than 8 duty amplifiers

Dual changeover (manual or automatic) with AFS-enabled amplifiers

Cascade function that support one standby amplifier

Power handling at 1000W per channel

Introduction

AC3801 is a manual amplifier changeover unit that ensures a standby amplifier takes over when a duty amplifier fails. It supports 8 duty amplifiers and 1 standby, with the option to cascade more than 9 duty amplifier units for larger setups.


This model combines the features of its predecessors - AC3601 and AX700 - with priority changeover and increased input capacity. It allows manual switching from the front panel or automatic activation when paired with amplifiers with Auto Fault Sensing (AFS) amplifiers such as the QP or QP2000 series. AC3801 is ideal for continuous audio operation for commercial, industrial, and emergency applications.

Packing information

  • Carton size: 555 (L) x 295 (W) x 95 (H) mm

  • Gross weight: 2.55 kg

  • 1 unit(s) per carton

  • Introduction

    AC3801 is a manual amplifier changeover unit that ensures a standby amplifier takes over when a duty amplifier fails. It supports 8 duty amplifiers and 1 standby, with the option to cascade more than 9 duty amplifier units for larger setups.


    This model combines the features of its predecessors - AC3601 and AX700 - with priority changeover and increased input capacity. It allows manual switching from the front panel or automatic activation when paired with amplifiers with Auto Fault Sensing (AFS) amplifiers such as the QP or QP2000 series. AC3801 is ideal for continuous audio operation for commercial, industrial, and emergency applications.

    Packing information

    • Carton size: 555 (L) x 295 (W) x 95 (H) mm

    • Gross weight: 2.55 kg

    • 1 unit(s) per carton


  • AC3801

    Power requirements


    Operating voltage

    24V DC

    Power consumption

    Standby : 82mW, 3.4mAOperating : 1.3W, 50mA

    Changeover, mode, and connections


    Zone load rating

    1000W 100V line input

    No. of amplifier inputs

    8 duty, 1 standby

    Changeover indication

    Front panel LED for duty amplifier being changeover

    Switching mode

    Via front panel switches (manual mode)Remote trigger (auto mode)

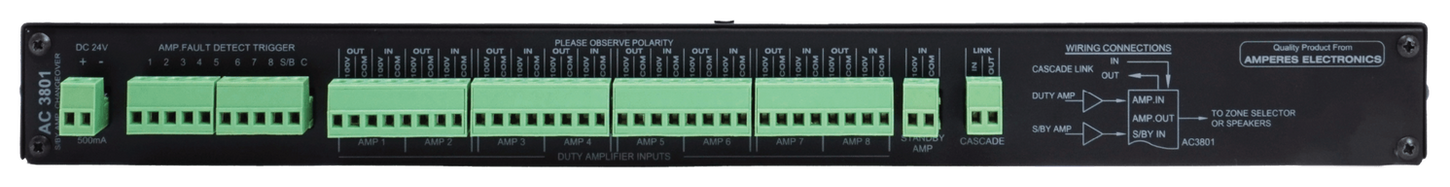

    Cable connections

    Phoenix connectors

    Cascade capacity

    Unlimited (Recommend 3)

    Cable size

    Up to 2.5mm sq

    Case


    Dimensions (W x H x D)

    482 x 44 x 180 mm

    Weight

    1.95kg

    Color

    Black, powder epoxy coated

    Note: The specification parameters may be changed, added, or omitted without prior notice.

    • Handles up to 8 duty amplifiers and 1 standby unit

    • Supports manual or automatic changeover with AFS-enabled amplifiers

    • Cascade function that allows one standby amplifier to support multiple duty amplifiers

    • Expandable to support more than 8 duty amplifiers

    • Dual changeover at input and output, ideal for matrix system setups

    • Prevents overloads by ensuring only one amplifier switches over

    • Prioritized switching for unit with higher numbered unit

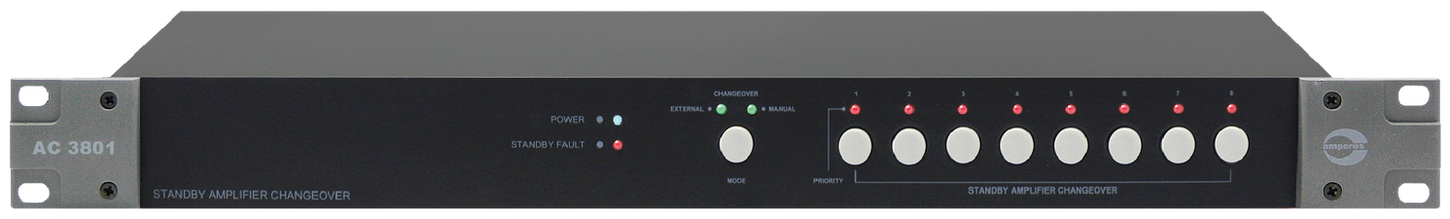

    • Manual changeover control on the front panel

    • Upgraded to 1000W per channel

  • Catalogue

    File Type: PDF

    Version: Year 24/25

    Instruction Manual

    File Type: PDF

    Version: -

    AutoCAD

    File Type: DWG

    Version: Year 24/25

    CE Marking

    File Type: PDF

    Version: -
