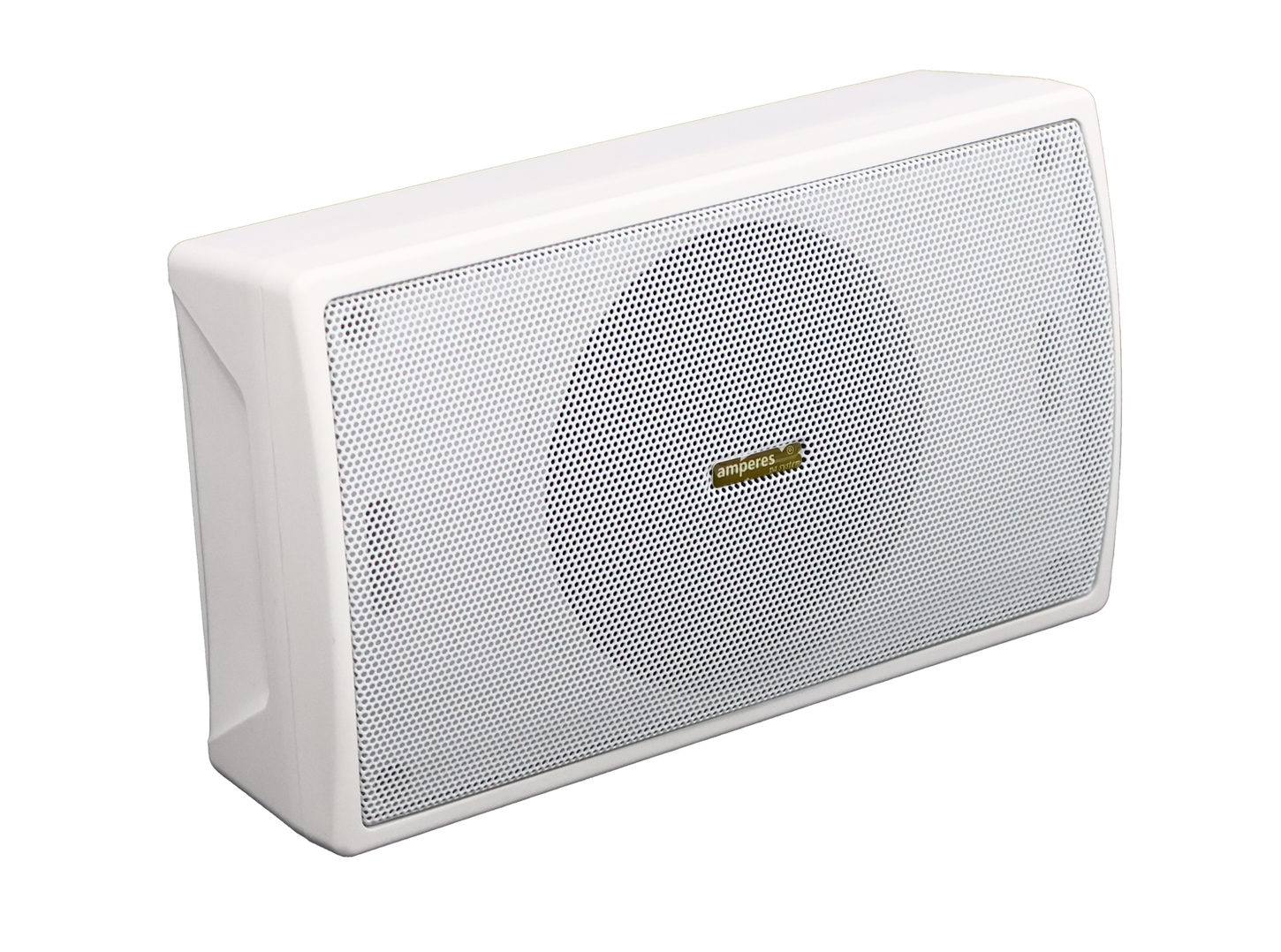

BS508

5" 10W 100V Box Speaker

BS508 is a slim, surface-mount speaker with a 5” dual cone driver, high SPL output, vandal-resistant design, and easy installation, ideal for BGM, paging, and EVAC.

5” dual cone driver with max 10W

Durable ABS housing with UV protection

Vandal-resistant and tamper-proof wall mounting

Easy snap-in cable connectors

  • Introduction

    BS508 is a low-profile, surface-mount speaker designed for clean integration into modern interiors while delivering excellent performance for BGM, paging, and EVAC applications. Powered by a 5” dual cone driver with selectable 100V taps at 1W, 3W, 6W, and 10W, it offers high SPL and clear voice reproduction.


    Built with durable ABS housing, it features a vandal-resistant installation design without the need for additional security parts. Easy snap connectors simplify wiring, making the BS508 a practical and secure choice for public and commercial spaces.


    Optional fire-retardant (FR) grade housing available on request.


    Model Variants:

    • BS508

    • BS508FR: Fire retardant (FR) enclosure


    Packing information

    • Carton size : 460 (L) x 460 (W) x 320 (H) mm

    • Gross weight : 22.25 kg

    • 24 units per carton


  • BS508

    Speaker


    Power rating

    10W 100V line

    Diameter

    5"

    Cone type

    Dual cone

    Impedance (Ohm)

    8

    Frequency response

    120 - 18 kHz

    SPL @ 1W/m (+/- 3dB) 1 kHz

    94 dB

    Transformer


    Power tapping

    1 / 3 / 6 / 10W 100V line

    Primary Impedance (Ohm)

    10k / 3.3k / 1.6k / 1k

    Secondary impedance (Ohm)

    8

    Physical


    Grille / Enclosure

    Aluminium / ABS

    Overall size (W x H x D)

    220 x 130 x 70 mm

    Weight

    720 g

    Color

    White

    Note: The specification parameters may be changed, added, or omitted without prior notice.

    • 5” dual cone driver with max 10W 100V rating for clear sound

    • Slim and modern design

    • Clear sound delivery with high SPL

    • Durable ABS housing with UV protection to prevent yellowing

    • Vandal-resistant and tamper-proof wall mounting

    • Easy snap-in cable connectors

    • Powder-coated grille for a clean finish

  • Catalogue

    File Type: PDF

    Version: Year 24/25

    Instruction Manual

    File Type: PDF

    Version: -

    AutoCAD

    File Type: PDF

    Version: Year 24/25

    CE Marking

    File Type: PDF

    Version: -

Introduction

BS508 is a low-profile, surface-mount speaker designed for clean integration into modern interiors while delivering excellent performance for BGM, paging, and EVAC applications. Powered by a 5” dual cone driver with selectable 100V taps at 1W, 3W, 6W, and 10W, it offers high SPL and clear voice reproduction.


Built with durable ABS housing, it features a vandal-resistant installation design without the need for additional security parts. Easy snap connectors simplify wiring, making the BS508 a practical and secure choice for public and commercial spaces.


Optional fire-retardant (FR) grade housing available on request.


Model Variants:

  • BS508

  • BS508FR: Fire retardant (FR) enclosure


Packing information

  • Carton size : 460 (L) x 460 (W) x 320 (H) mm

  • Gross weight : 22.25 kg

  • 24 units per carton
