iPX5500
IP UART (RS485) Data Communication Box
iPX5500 is a network interface that allows two-way communication between Amperes PMX LAN software and any RS485-compatible device for remote control and monitoring.
Ultra low latency audio and data transmission (≈20 ms)
Connects up to 16 RS485 devices (Amperes and third-party)
Converts RS485 data to IP for remote monitoring
Supports two-way data communication
Introduction
iPX5500 is a LAN-to-RS485 interface that enables two-way communication between Amperes PMX software and RS485 devices. It converts RS485 data into IP, allowing remote monitoring and control over a LAN through PMX software.
Supporting up to 16 RS485 devices, it is compatible with both Amperes and third-party equipment—such as QP2000 Series power amplifiers and BC9740 battery chargers—providing a simple solution for integrating RS485 devices into networked PA systems.
Packing information
Carton size : 155 (L) x 105 (W) x 125 (H) mm
Gross weight : 1.0 kg (Including adapter)
1 unit per carton
Introduction
iPX5500 is a LAN-to-RS485 interface that enables two-way communication between Amperes PMX software and RS485 devices. It converts RS485 data into IP, allowing remote monitoring and control over a LAN through PMX software.
Supporting up to 16 RS485 devices, it is compatible with both Amperes and third-party equipment—such as QP2000 Series power amplifiers and BC9740 battery chargers—providing a simple solution for integrating RS485 devices into networked PA systems.
Packing information
Carton size : 155 (L) x 105 (W) x 125 (H) mm
Gross weight : 1.0 kg (Including adapter)
1 unit per carton

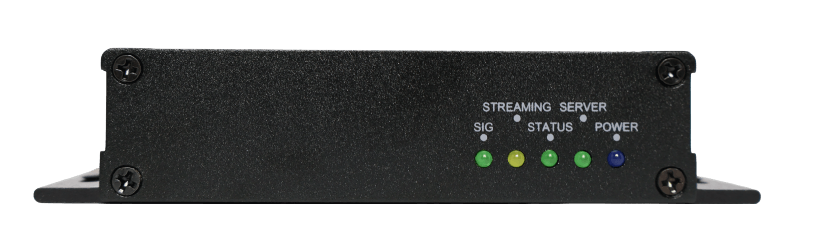

iPX5500 - Kindly zoom to view (Desktop)
Power Requirements
Operating voltage
24V DC
Current consumption
100mA (1.5W)
Connectivity
Channels
Up to 16 RS485 nodes
LAN interface
RS485 (19.2kbps), 10/100 Base-T
Common protocols
TCP/IP, UDP, IGMP, HTTP
Priority protocols
UDMP, ADP
Broadcast mode
Multicast
User interface
Web browser interface (Google Chrome V90+ recommended)
Operating Conditions
Operating temperature
-20°C to 80°C
Relative humidity
<70%
Physical Specifications
Dimensions (W x H x D)
100 x 147 x 40 mm
Net weight
320g (excluding adaptor)
Note: The specification parameters may be changed, added, or omitted without prior notice. Last updated on 15 May 2026.
LAN-to-RS485 interface for IP-based communication
Converts RS485 data to IP for remote monitoring and control via PMX
Supports two-way data communication
Connects up to 16 RS485 devices
Compatible with Amperes and third-party equipment
Ultra-low latency audio and data transmission (≈20 ms)
