Software

PMX III

Integrated PA Management Software

icon new.png
PMX dashboard.png
Highlights

PC based integrated PA Management software for BGM, Paging, Scheduling and Monitoring

Multi channel BGM simultaneous broadcast, serving as virtual matrix system.

PMX III is a totally new software designed for Amperes iPX System, which is IP based PA installation. It is not only a BGM or Paging server but will be an Integrated PA Management software. Many features has been incorporated in this new version based on contemporary requirement.

​

Amperes PMX III shall be available in 2 versions : Standard and Premium, which shall be available in due time. Standard version shall contain Multi Channel BGM server of up to 10 channels, enable the system to broadcast different music to different BGM clients ( iPX5155 / 5300 ).  Zone management has been further refined to provide user greater convenience and flexibility to page from PC.

​

The Premium version shall include device monitoring, zone mapping and Google based Text to Speech converter which would able to broadcast text messages in various languages and with natural voices.

Available in Standard and Premium versions tailored to customers' application.

Features

  • Works with Amperes iPX ethernet clients for audio streaming, monitoring and controls

  • Simultaneous audio streaming of up to 10 channels

  • Media playback source for any music source supported by Windows Media Player

  • Media library to store unlimited songs in HDD

  • Weekly programmable timer for message or chimes playback

  • Calendar scheduling for media playback

  • Naming of zones for easy identifications

  • Group paging / media playback

  • Priority paging setup with other PD mic in the system

  • Zone controls up to 258 zones

​

​For Premium version only :

  • Device monitoring and controls

  • Zone mapping for easy zone identifications and selection

  • Google based Text to Speech converter for more natural voice and available in multiple languages.

Documents

Catalogue (TBA)

Instruction Manual (TBA)

Note :

Software update : Jan 2022 Version 2.24

Check the compatibility versions

Refer to download page for latest updates


View Compatibility versions

User Interfaces
PMX dashboard_edited.jpg

Music Server Dashboard

PMX III allows multi channel simultaneous audio broadcast to predefined music clients / IP speakers. This flexibility allows different music genre for different areas. Eg. English songs to Western restaurant.

PMX Paging UI.png

Paging and Messaging UI

Zones are illustrated as buttons with colors to differentiate groups or restricted zones for easier identification in large setup. Zone groupings allows paging or manual messaging to group of similar zones more convenient.

PMX Schedule UI.png

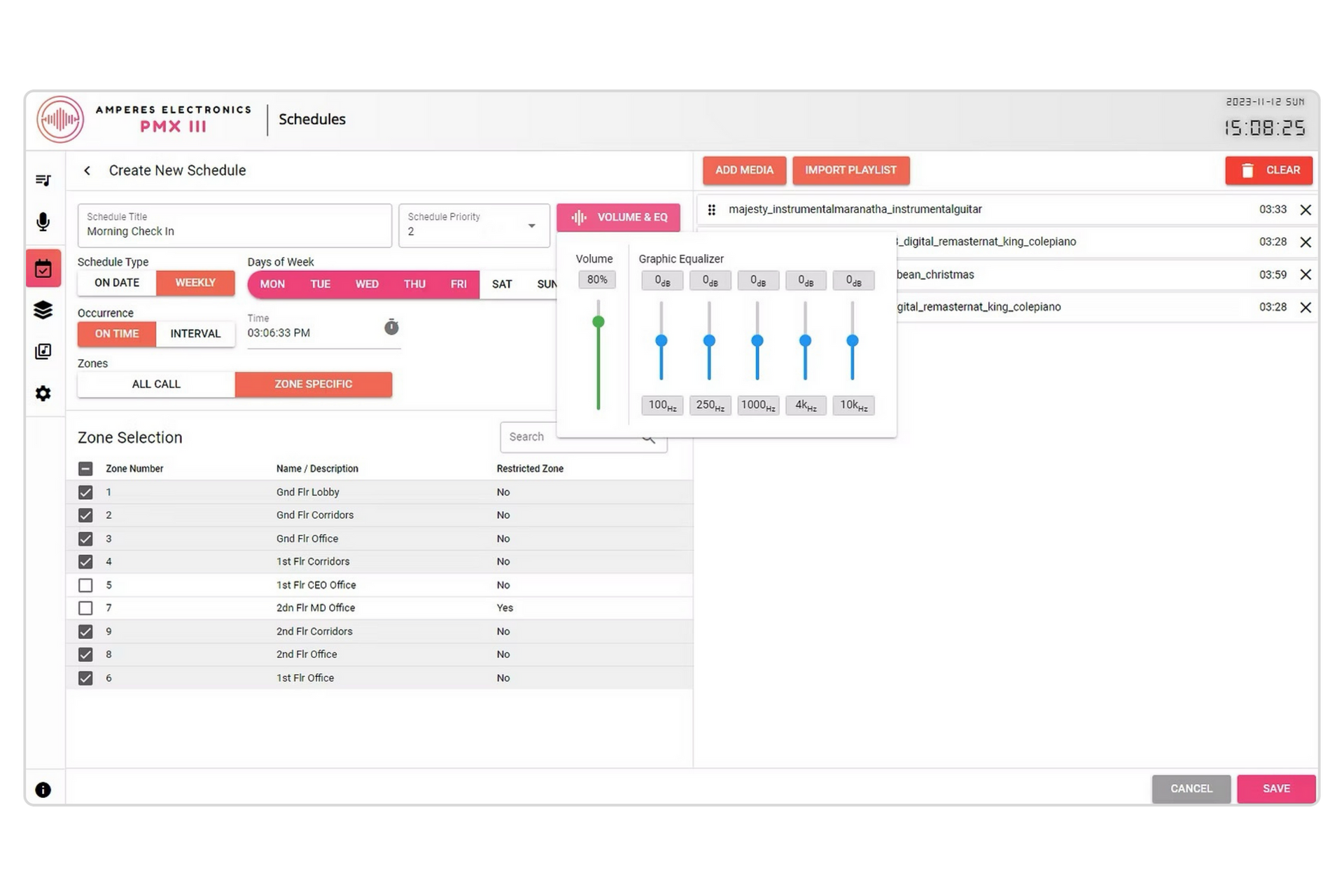

Schedule Creation UI

Schedules can be created for on specific date or weekly with on time activation or triggering a playback at intervals. Each playback can be targeted to specific zone(s).
