EVS8820

Power requirements

Power supply

220 - 240V AC : 50 / 60 Hz

Power rating

1000W at 100V line output

Power consumption (full load)

1500VA (6.1A)

Standby current at 240V AC

0.4A

Inputs, outputs, & controls

Input channels

Link line level : 0 dBU

Input sensitivity / impedance

Line : 1.2V / 10k Ohm

Input signal at standby

Switchable auto detect / always ON

Frequency response

20 - 18 kHz (+/- 3 dB @ 1 kHz, 0 dBU)

THD (+ Noise)

<1%

Standby amplifier changeover

Built in changeover relay

Zone output

8 zones (front switch and remote paging with All Call)

Audio output

Master line output, balanced 0 dBU

Audio link to slave

Line balanced 0 dBU

Emergency dry contact

3A ; NO relay

Tone controls

Bass (100 Hz)Treble (10 kHz) 15 dB slope

Output audio monitoring

Front speaker with volume controls

Controls

Output volume

Communication control

RS485 ; 19.2 kbps

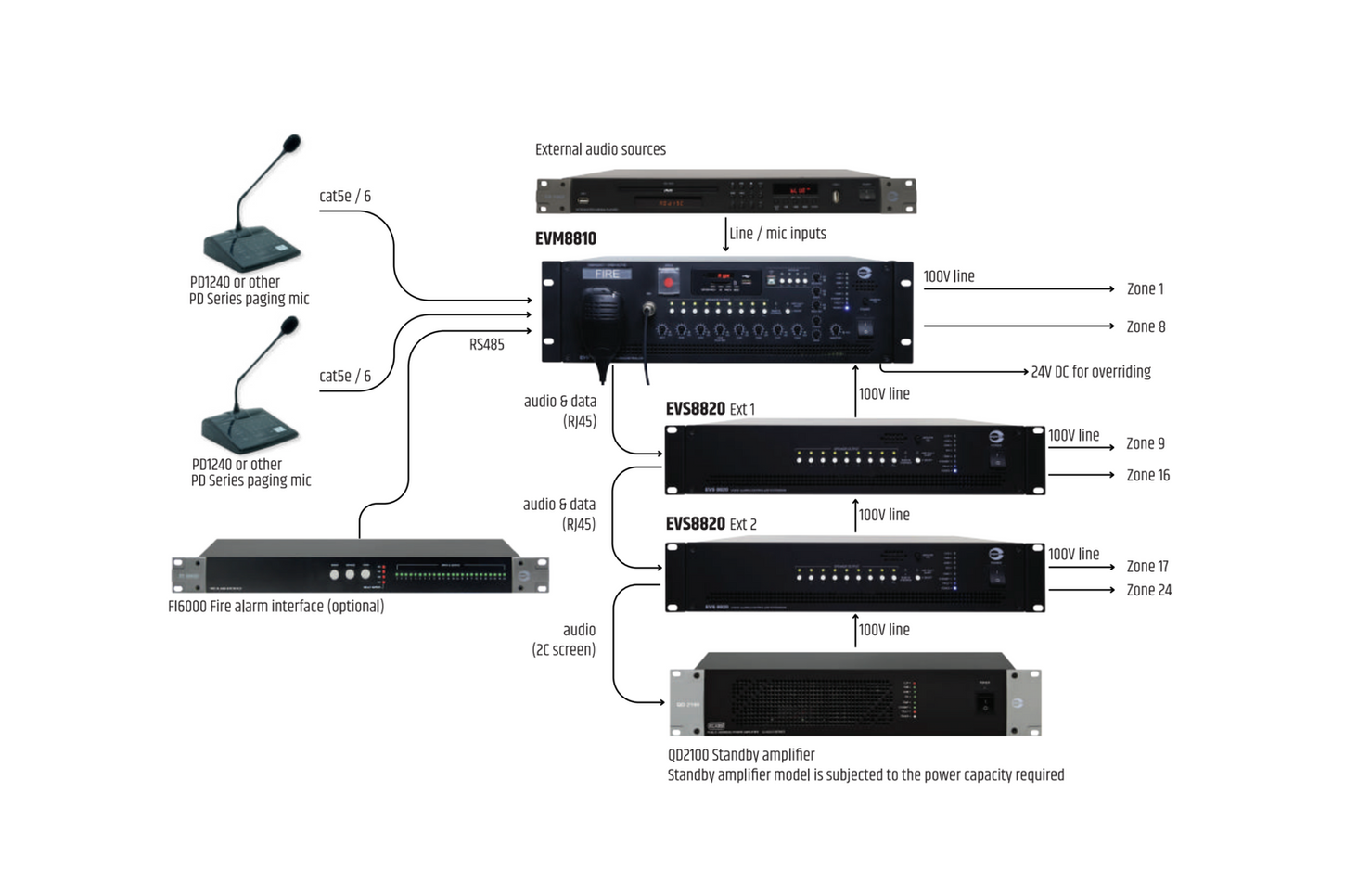

Cascade / link

RJ45 port (line audio and RS485 data)

Cascade quantity

3 nos (total 24 zones)

Indicators

Signal, temperature, fault, power, and zone selection

Priority sequence (low to high)

N/A

Protections

Thermal, short circuit, overload, and AC fuses

Cooling system

Auto temperature controls

Cut off temperature

75°C

Case

Dimensions (W x H x D)

482 x 88 x 420 mm

Weight

9.3 kg
