EVM8810
Integrated Voice Alarm Controller (Master)
All-in-one Integrated Voice Alarm Controller for EVAC, paging and BGM applications, featuring built-in 1000W 100V Class D amplifier, 8 speaker zones and message playback, mixer, media player and AFS. Now enhanced with a redundant 24V DC backup power input.
EVAC features such as emergency microphone, siren tone generator, and voice messages
Highest priority override with fire-compliant paging sequence
Auto Amplifier Fault Sensor (AFS) with built-in standby amplifier changeover
Visual FIRE indicator and built-in monitoring speaker
Introduction
Introducing the all new version EVM8810 Integrated Voice Alarm Controller, a compact all-in-one solution for EVAC, paging and BGM applications. It combines a 1000W 100V amplifier, 8 speaker zones, emergency microphone, siren generator, pre-recorded messages, mixer with tone controls and integrated media player (USB, SD/MP3, FM tuner, Bluetooth) into a compact system, reducing equipment and rack space requirements.

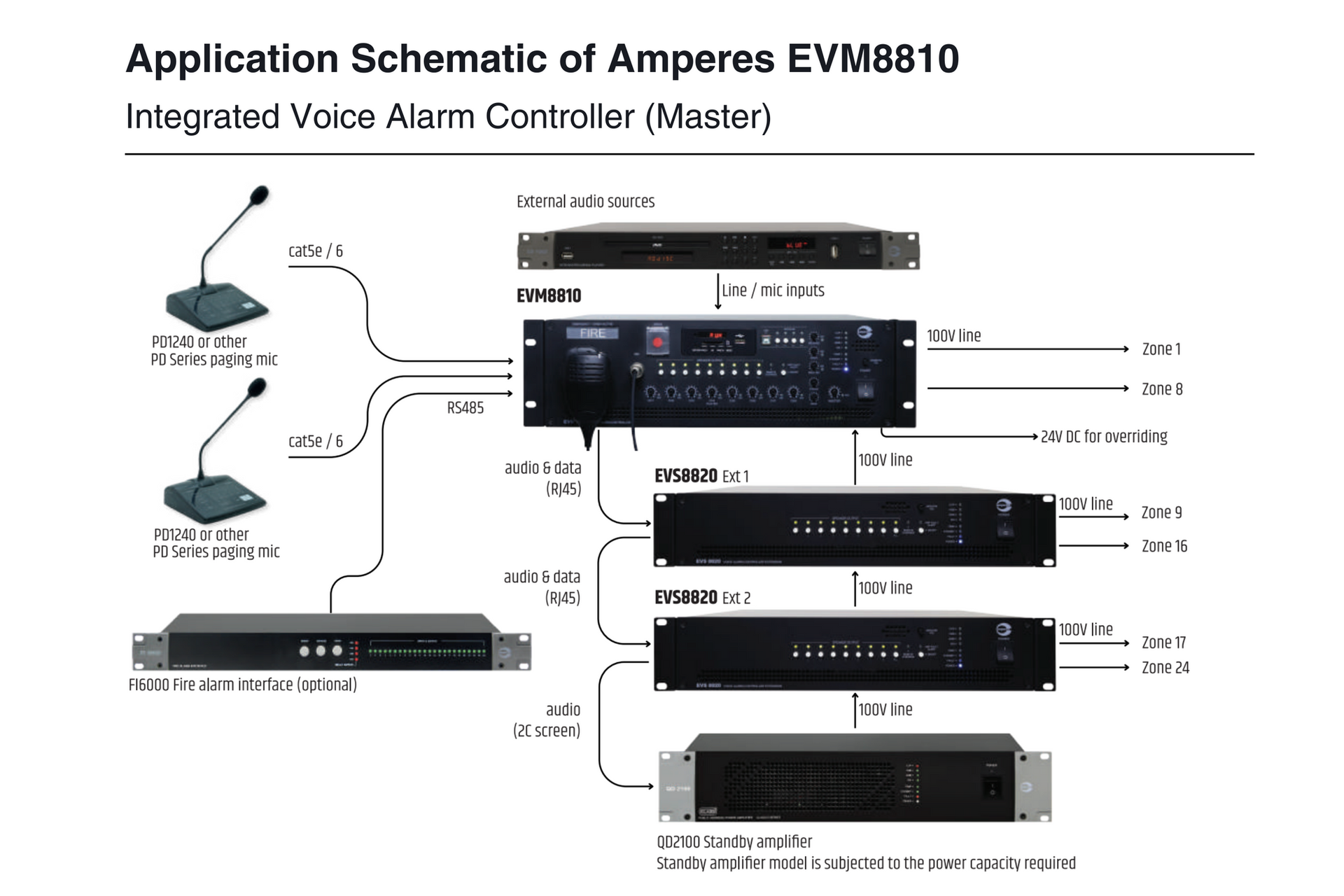

The system can be expanded up to 24 zones with EVS8820 extension units, while the FI6000 MK II Fire Alarm Interface enables integration with fire alarm systems for emergency message triggering. For improved system reliability, the EVM8810 now features redundant 24V DC backup power input, standby amplifier changeover with Auto Amplifier Fault Sensor (AFS), and front PTT handheld microphone disconnection/fault detection.

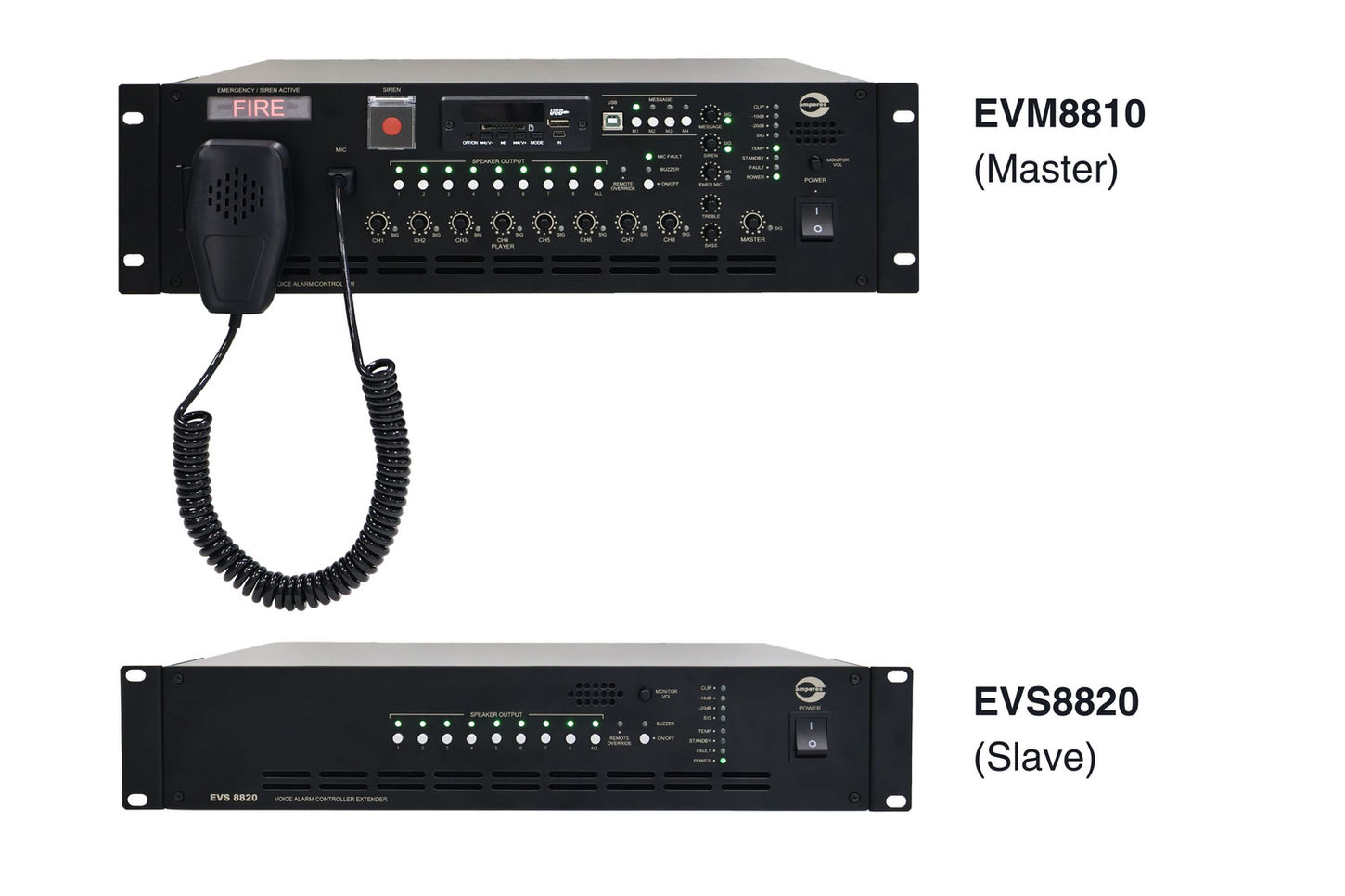

EVM8810 & EVS8820 are ideal for voice alarm installation that requires simplicity with limited space area for equipment but able to comply to all requirements (EN54/BS) by fire authority.
Packing information
Carton size: 555 (L) x 555 (W) x 230 (H) mm
Gross weight: 13.0 kg
Net weight: 10.7 kg
1 unit per carton
Introduction
Introducing the all new version EVM8810 Integrated Voice Alarm Controller, a compact all-in-one solution for EVAC, paging and BGM applications. It combines a 1000W 100V amplifier, 8 speaker zones, emergency microphone, siren generator, pre-recorded messages, mixer with tone controls and integrated media player (USB, SD/MP3, FM tuner, Bluetooth) into a compact system, reducing equipment and rack space requirements.
The system can be expanded up to 24 zones with EVS8820 extension units, while the FI6000 MK II Fire Alarm Interface enables integration with fire alarm systems for emergency message triggering. For improved system reliability, the EVM8810 now features redundant 24V DC backup power input, standby amplifier changeover with Auto Amplifier Fault Sensor (AFS), and front PTT handheld microphone disconnection/fault detection.
EVM8810 & EVS8820 are ideal for voice alarm installation that requires simplicity with limited space area for equipment but able to comply to all requirements (EN54/BS) by fire authority.
Packing information
Carton size: 555 (L) x 555 (W) x 230 (H) mm
Gross weight: 13.0 kg
Net weight: 10.7 kg
1 unit per carton
EVM8810
Power Requirements
Power supply
220 - 240V AC, 50/60 Hz OR 24 - 30V DC backup supply (NEW)
Power rating
1000W at 100V line output
Power consumption (240V AC)
Full load: 1500VA (6.1A)
Standby: 0.5A
Current consumption (24V DC)
Full load: 50A
Standby: 1.2A
Connections
Input channels
Ch 1 to 6 Mic/Line (balanced) RCA x 2 Dynamic handheld press-to-talk (PTT) microphone Message bank x 4 Siren PD Series paging mic ports x 2 Media Player (USB / SD Card / MP3 / FM tuner / Bluetooth) External EP1200 mic port
Input sensitivity / impedance
Mic: 40 mV / 10k Ohm Line: 1.2V / 10k Ohm
Input signal at standby
Switchable auto detect / always ON
Frequency response
20 - 18 kHz (± 3 dB @ 1 kHz, 0 dBU)
THD + Noise
<1% (0.2%)
Standby amplifier changeover
Built-in changeover relay
Zone output
8 zones (front switch and remote paging with All Call)
Audio output
Master line output, balanced 0 dBU
Audio link to slave unit
Line balanced 0 dBU
Emergency dry contact
3A, NO relay
Tone controls
Bass (100 Hz) Treble (10 kHz) 15 dB slope
Output audio monitoring
Front speaker with volume controls
Controls
Individual channels, message, siren, emergency mic, bass & treble, master volume
Data communications
RS485, 19.2 kbps
Cascade / link
RJ45 port (line audio and RS485 data)
Cascade quantity
3 units of EVS8820 (total of 24 zones)
Indicators
Signal, temperature, fault, power, message, PTT mic fault and zone selection
Priority sequence (low to high)
BGM, paging mic, siren, message, external EP mic, handheld PTT mic
Protections
Thermal, short circuit, overload, and AC fuses
Cooling system
Temperature-controlled dual ventilation fan
Cut off temperature
75°C
Physical Specifications
Dimensions (W x H x D)
482 x 132 x 420 mm
Net weight
10.7 kg
Gross weight
13.0 kg
Note: The specification parameters may be changed, added, or omitted without prior notice. Last updated on 17 Aug 2026.
All-in-one integrated Voice Alarm Controller for EVAC, Paging & BGM
Built-in 1000W 100V Class D amplifier with 8 speaker zones
Complete EVAC features with emergency microphone, siren tone generator, and voice message (4 message memory bank)
8 audio inputs (6 Mic/Line + 2 RCA) with tone control (Bass & Treble)
Highest priority override with fire-compliant paging sequence (EN54 / BS)
Auto Amplifier Fault Sensor (AFS) with built-in standby amplifier changeover (monitors the amplifier circuit)
Auto muting with adjustable ducking for paging over BGM
Built-in media player (USB, SD/MP3, FM tuner, Bluetooth)
Front panel and remote message playback control
All Call relay trigger (front or remote activation)
Relay contacts for external volume override during emergency paging
Visual FIRE indicator and built-in monitoring speaker
Fault dry contact output for system monitoring
Switchable energy-saving standby mode
Supports Amperes PD Series (PD1240, PD1280, PD1900) paging microphones, PT1801 MK II, FI6000 MK II, EP1200
Flexible addressing for integration with existing Amperes PA systems
Cascadable to 24 zones for larger setup (via EVS8820 or TD6400)
Zone expansion via TD6400 when using a single EVM8810, without requiring EVS8820
Including everything above, the new EVM8810 now features:
Redundant 24V DC backup power input
Advanced front press-to-talk (PTT) dynamic handheld microphone disconnection/ fault alert
