amperes electronics

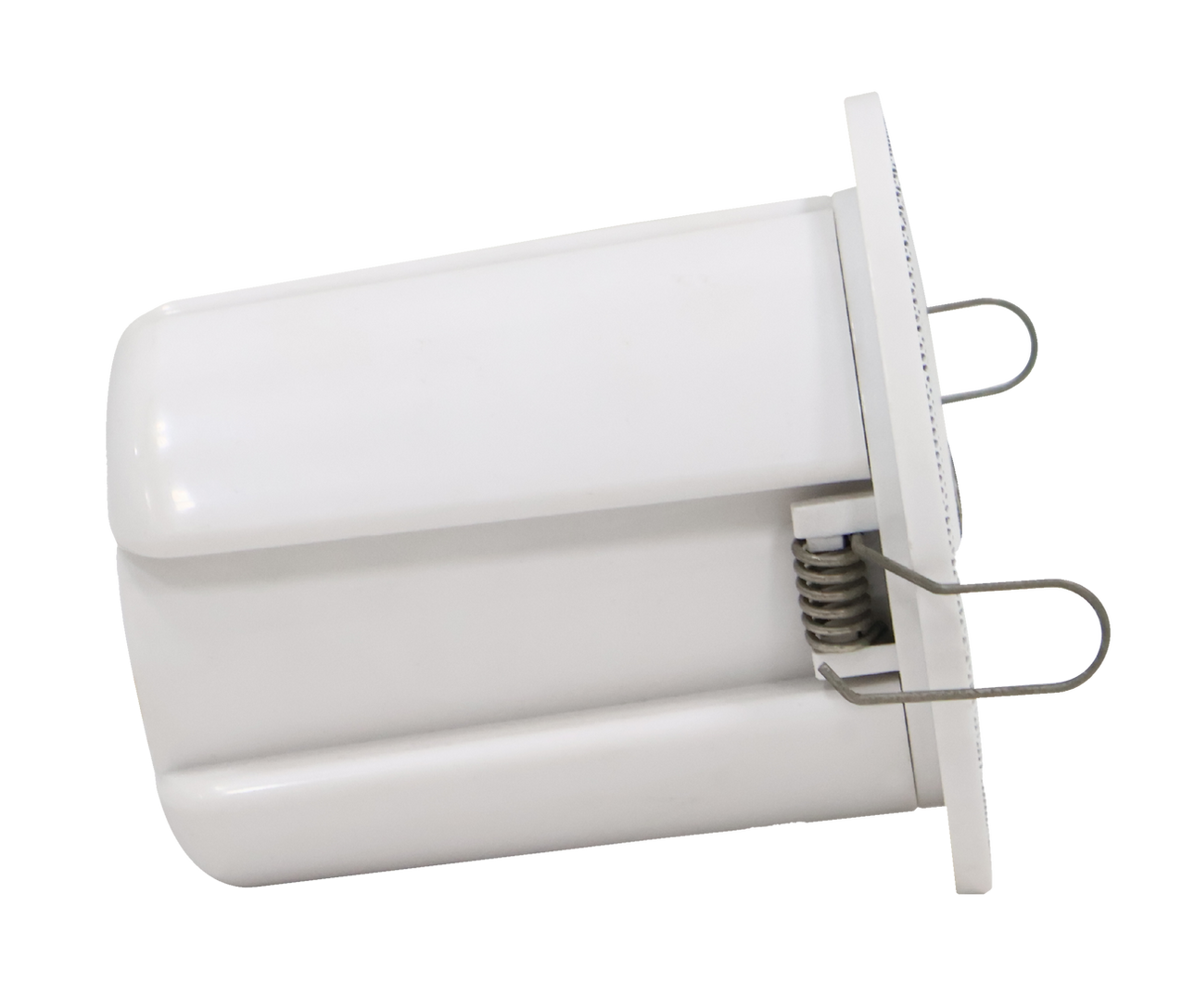

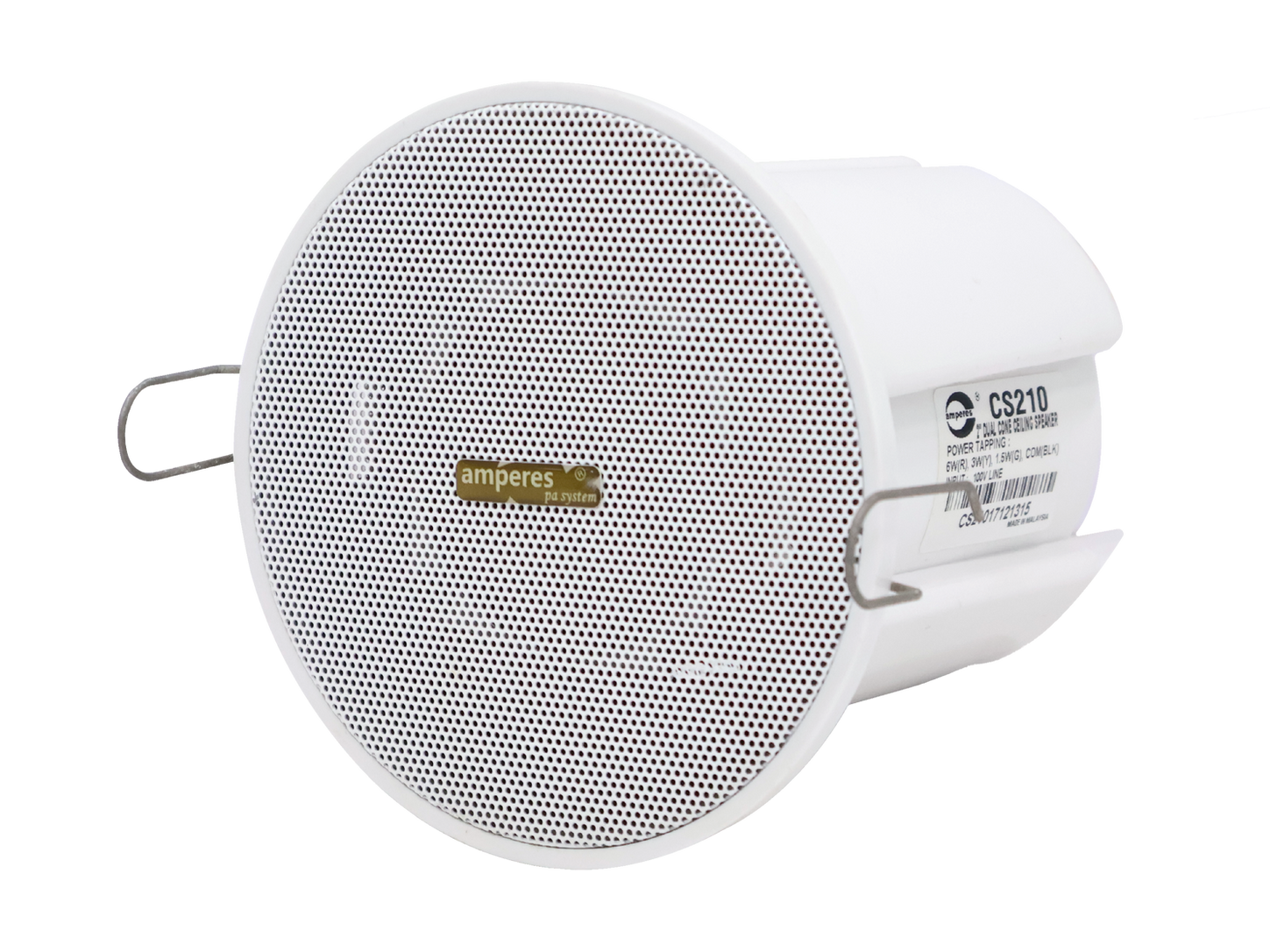

CS210
2" 6W 100V Ceiling Speaker
CS210 is a compact 2” ceiling speaker with a slim, low-profile design. Compact yet impactful—ideal for BGM and paging in small areas such as foyers, corridors, and small rooms.
Quick and secure installation with spring clips
Slim-edge and low profile design for a modern look
Durable ABS back enclosure
Optional version without back enclosure available
Introduction
CS210 is a compact 2” 6W 100V line ceiling speaker designed with a slim edge and low-profile finish, ideal for discreet BGM and paging in smaller areas, satisfying the needs of both music listening and EVAC audio clarity. Made from durable ABS housing, it features a spring clip mounting system for fast and secure installation.
Optional fire-retardant (FR) grade only available for CS510 and CS610 models.
From the same series:
CS210: 2" 6W 100V Dual Cone Ceiling Speaker
CS510: 5" 6W 100V Dual Cone Ceiling Speaker
CS610/CS610B: 6" 6W 100V Dual Cone Ceiling Speaker
Packing information
Carton size : 570 (L) x 230 (W) x 290 (H) mm
Gross weight : 11.30 kg
20 units per carton
CS210
Speaker
Power rating
6W 100V line
Diameter
2" (51mm)
Cone type
Single cone
Impedance (Ohm)
8
Frequency response
160 - 15 kHz
SPL @ 1W/m (+/- 3dB) 1 kHz
90 dB
Dispersion angle
120
Transformer
Power tapping
1.5 / 3 / 6W 100V line
Primary Impedance (Ohm)
6.7k / 3.3k / 1.67k
Secondary impedance (Ohm)
8
Physical
Grille / Enclosure
Aluminium grille / ABS enclosure
Cutting hole diameter
85 mm
Overall size (diameter x height)
110 x 110 mm
Weight
500 g
Color
White
Note: The specification parameters may be changed, added, or omitted without prior notice.
2" 6W 100V line
Slim-edge and low profile design for a modern look
Durable ABS back enclosure
Quick and secure installation with spring clips
Rust-resistant epoxy-coated metal grille
Optional version available without back enclosure
Suitable for room foyer, corridors and small rooms with
Introduction
CS210 is a compact 2” 6W 100V line ceiling speaker designed with a slim edge and low-profile finish, ideal for discreet BGM and paging in smaller areas, satisfying the needs of both music listening and EVAC audio clarity. Made from durable ABS housing, it features a spring clip mounting system for fast and secure installation.
Optional fire-retardant (FR) grade only available for CS510 and CS610 models.
From the same series:
CS210: 2" 6W 100V Dual Cone Ceiling Speaker
CS510: 5" 6W 100V Dual Cone Ceiling Speaker
CS610/CS610B: 6" 6W 100V Dual Cone Ceiling Speaker
Packing information
Carton size : 570 (L) x 230 (W) x 290 (H) mm
Gross weight : 11.30 kg
20 units per carton
