CS510

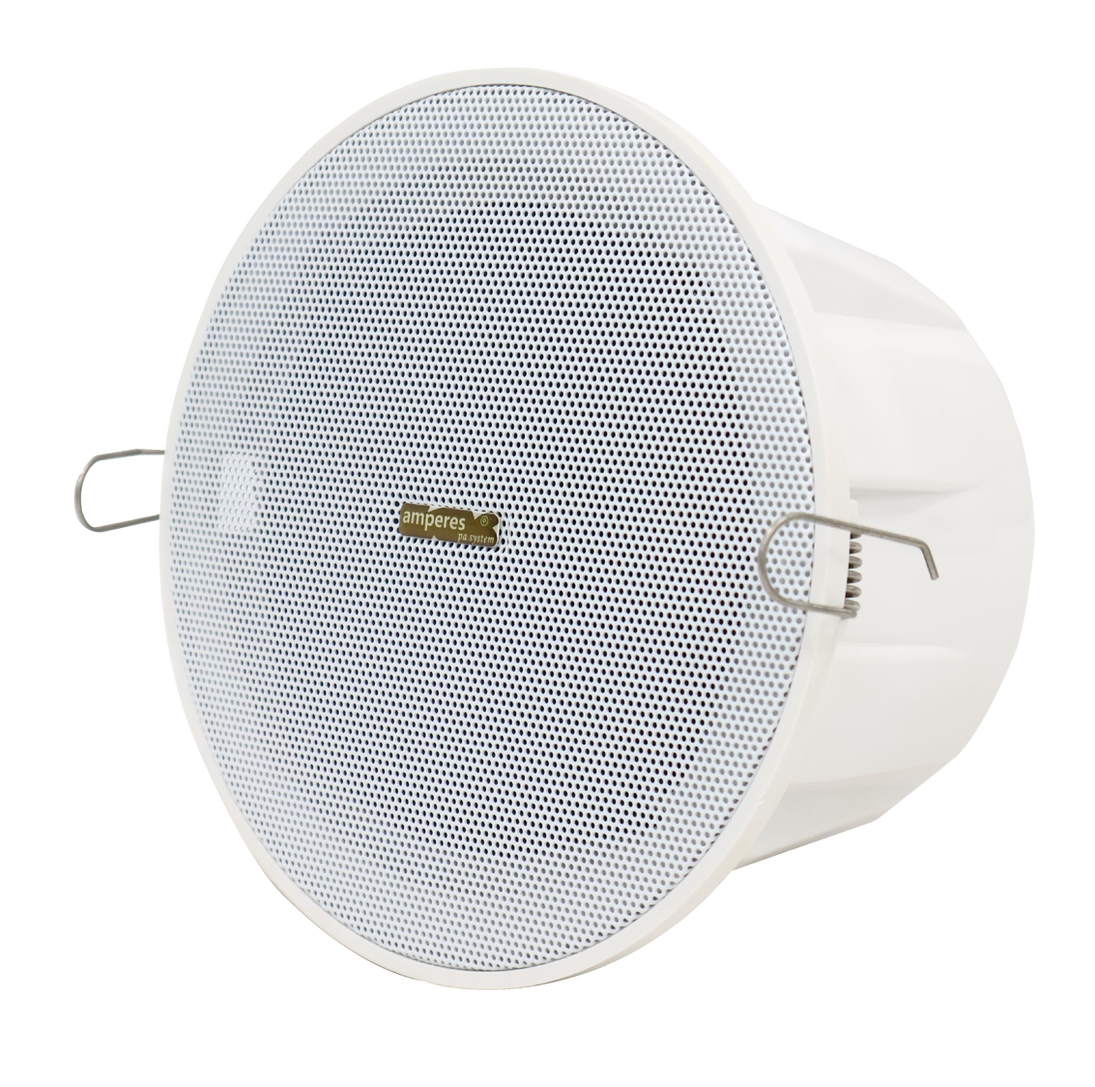

5" 6W 100V Dual Cone Ceiling Speaker

CS510 is a general purpose 5” ceiling speaker designed for balanced sound for BGM and paging, featuring a sleek finish and fast spring-clip installation.

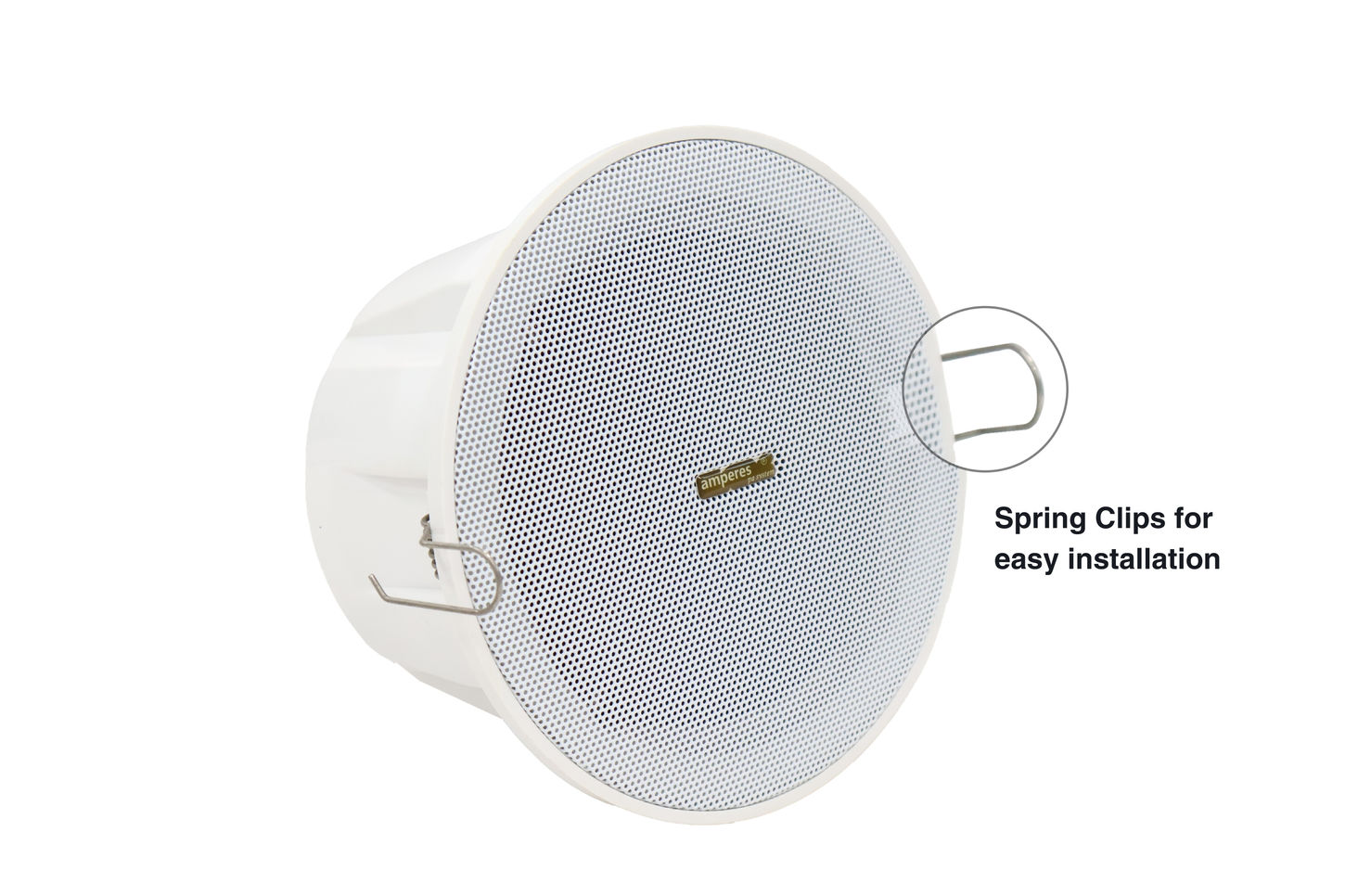

Quick and secure installation with spring clips

Dual cone drivers (CS510/610) with multiple power tap options

Durable ABS back enclosure

Optional for Fire-retardant (FR) grade.

  • Introduction

    CS510 is a compact 5” 6W 100V line ceiling speaker designed with a slim edge and low-profile finish, ideal for discreet background music and paging in smaller areas. Made from durable ABS housing with an optional fire-retardant (FR) grade, it features a spring clip mounting system for fast and secure installation.


    Model Variants:

    • CS510

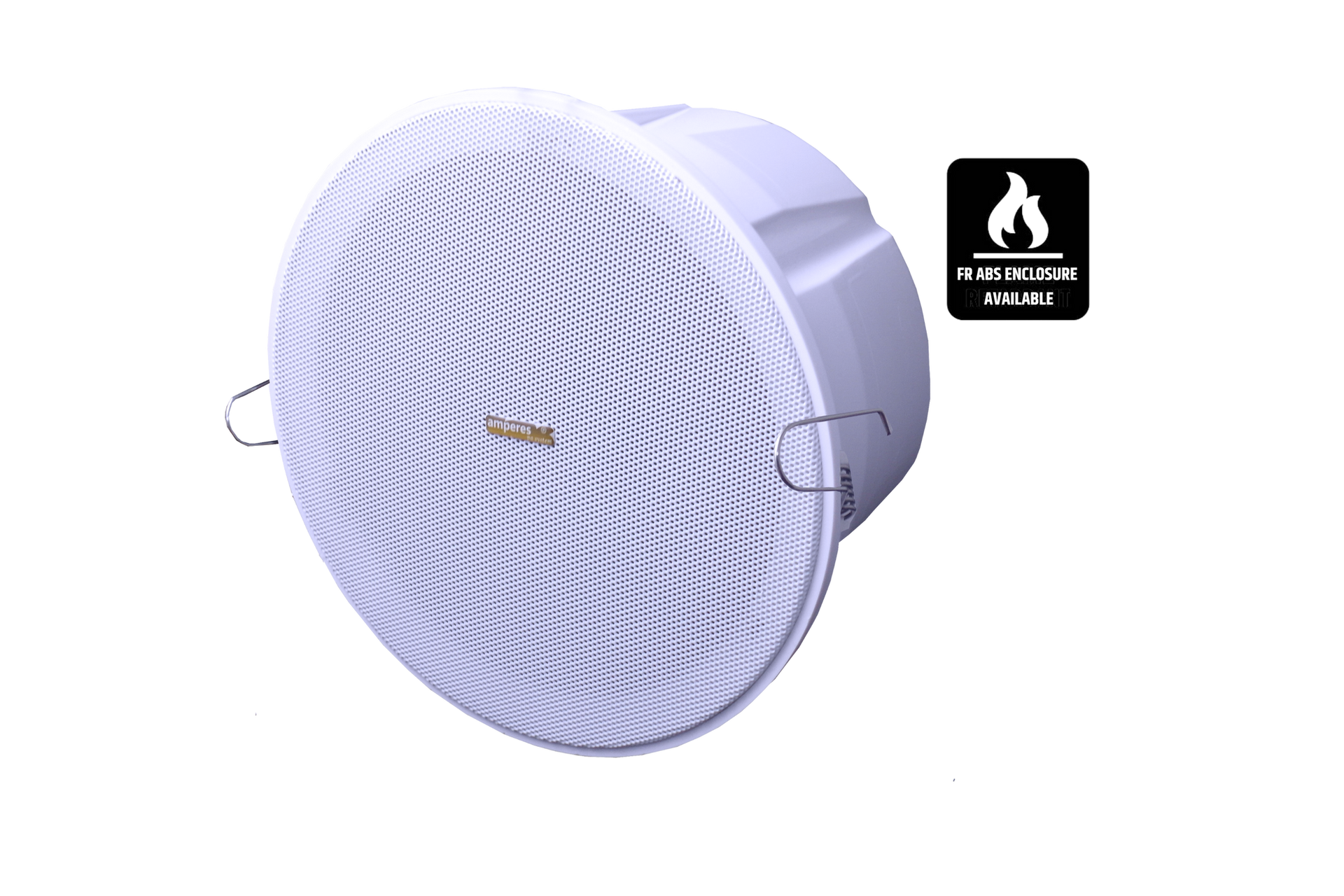

    • CS510FR: Fire retardant (FR) enclosure

    From the same series:

    • CS210: 2" 6W 100V Dual Cone Ceiling Speaker

    • CS510: 5" 6W 100V Dual Cone Ceiling Speaker

    • CS610/CS610B: 6" 6W 100V Dual Cone Ceiling Speaker

    Packing information

    • Carton size : 690 (L) x 350 (W) x 400 (H) mm

    • Gross weight : 19.60 kg

    • 24 units per carton


  • CS510

    Speaker


    Power rating

    6W 100V line

    Diameter

    5" (125 mm)

    Cone type

    Dual cone

    Impedance (Ohm)

    8

    Frequency response

    150 - 19 kHz

    SPL @ 1W/m (+/- 3dB) 1 kHz

    92 dB

    Dispersion angle

    160

    Transformer


    Power tapping

    1.5 / 3 / 6W 100V line

    Primary Impedance (Ohm)

    6.7k / 3.3k / 1.67k

    Secondary impedance (Ohm)

    8

    Physical


    Grille / Enclosure

    Aluminium grille / ABS enclosure

    Cutting hole diameter

    145 mm

    Overall size (diameter x height)

    165 x 110 mm

    Weight

    780 g

    Color

    White

    Note: The specification parameters may be changed, added, or omitted without prior notice.

    • 5" 6W 100V line

    • Slim-edge and low profile design for a modern look

    • Durable ABS back enclosure with optional fire-retardant (FR) grade material

    • Quick and secure installation with spring clips

    • Dual cone drivers (CS510/610) with multiple power tap options

    • Rust-resistant epoxy-coated metal grille

    • Optional version available without back enclosure

  • Catalogue

    File Type: PDF

    Version: Year 24/25

    Instruction Manual

    File Type: PDF

    Version: -

    AutoCAD

    File Type: PDF

    Version: Year 24/25

    CE Marking

    File Type: PDF

    Version: -

    Datasheet

    File Type: PDF

    Version: -

Introduction

CS510 is a compact 5” 6W 100V line ceiling speaker designed with a slim edge and low-profile finish, ideal for discreet background music and paging in smaller areas. Made from durable ABS housing with an optional fire-retardant (FR) grade, it features a spring clip mounting system for fast and secure installation.


Model Variants:

  • CS510

  • CS510FR: Fire retardant (FR) enclosure

From the same series:

  • CS210: 2" 6W 100V Dual Cone Ceiling Speaker

  • CS510: 5" 6W 100V Dual Cone Ceiling Speaker

  • CS610/CS610B: 6" 6W 100V Dual Cone Ceiling Speaker

Packing information

  • Carton size : 690 (L) x 350 (W) x 400 (H) mm

  • Gross weight : 19.60 kg

  • 24 units per carton
