amperes electronics
Professional Public Address (PA) System Manufacturer
CS610 / CS610B
6" 6W / 10W 100V Dual Cone Ceiling Speaker
CS610 is a general purpose 6” ceiling speaker designed for balanced sound for BGM and paging, featuring a slim edge finish and fast spring-clip installation.
Quick and secure installation with spring clips
Dual cone drivers multiple power tap options
Metal grille & ABS back enclosure
Optional for Fire-retardant (FR) grade
Introduction

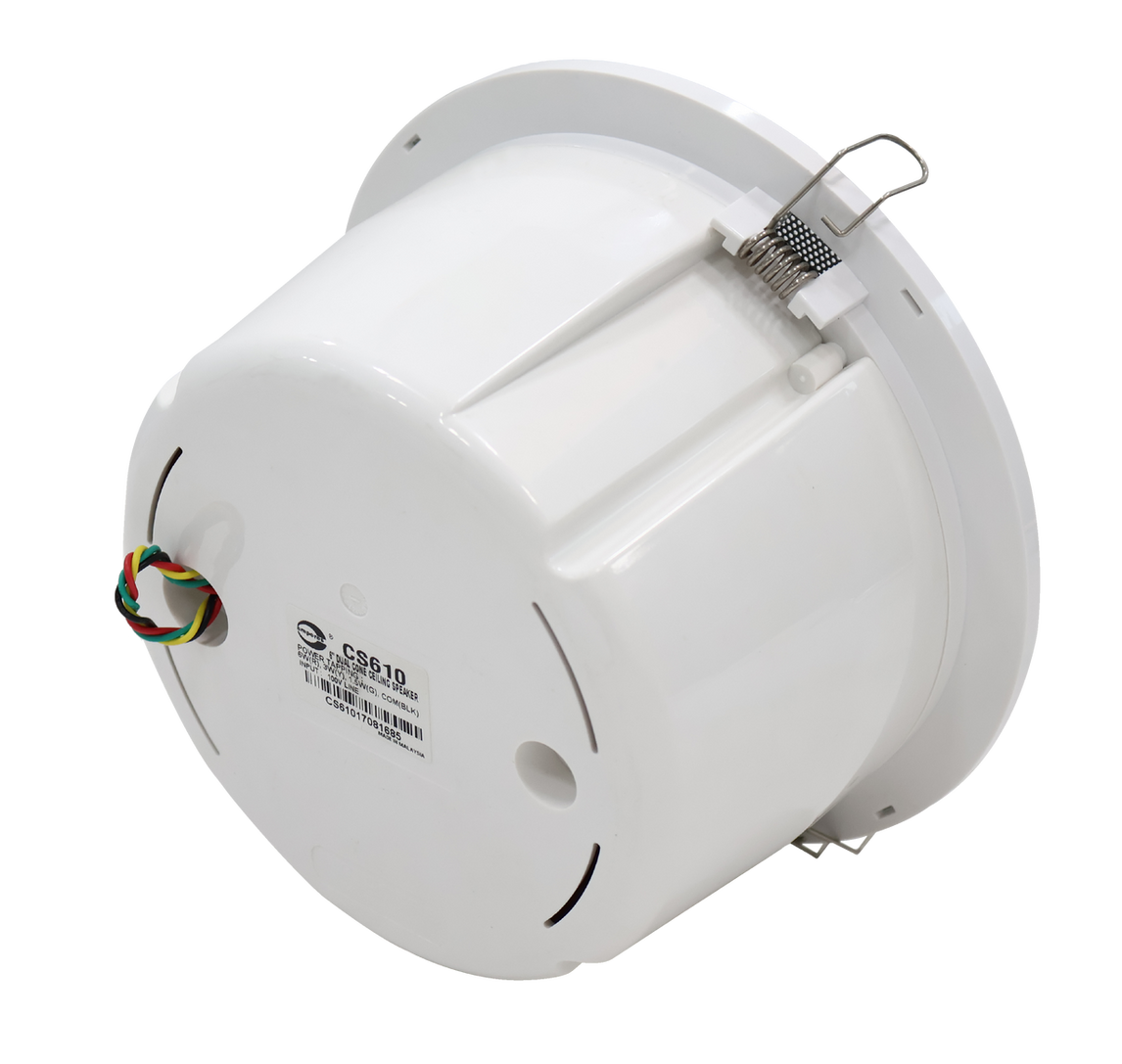

CS610 / CS610B is a compact 6” 6W (CS610) or 10W 100V (CS610B) line ceiling speaker designed with a slim edge and low-profile finish, ideal for discreet background music and paging in smaller areas. Made from durable ABS housing with an optional fire-retardant (FR) grade, it features a spring clip mounting system for fast and secure installation.
Model Variants:
CS610: 6" 6W 100V Line with 1.5 / 3 / 6W Power Taps
CS610: 8" Grille options available
CS610FR: 6" 6W 100V Line with 1.5 / 3 / 6W Power Taps and Fire Retardant (FR) enclosure
CS610B: 6" 10W 100V Line with 1.5 / 3 / 6 / 10W Power Taps
CS610BFR: 6" 10W 100V Line with 1.5 / 3 / 6 / 10W Power Taps and Fire Retardant (FR) enclosure

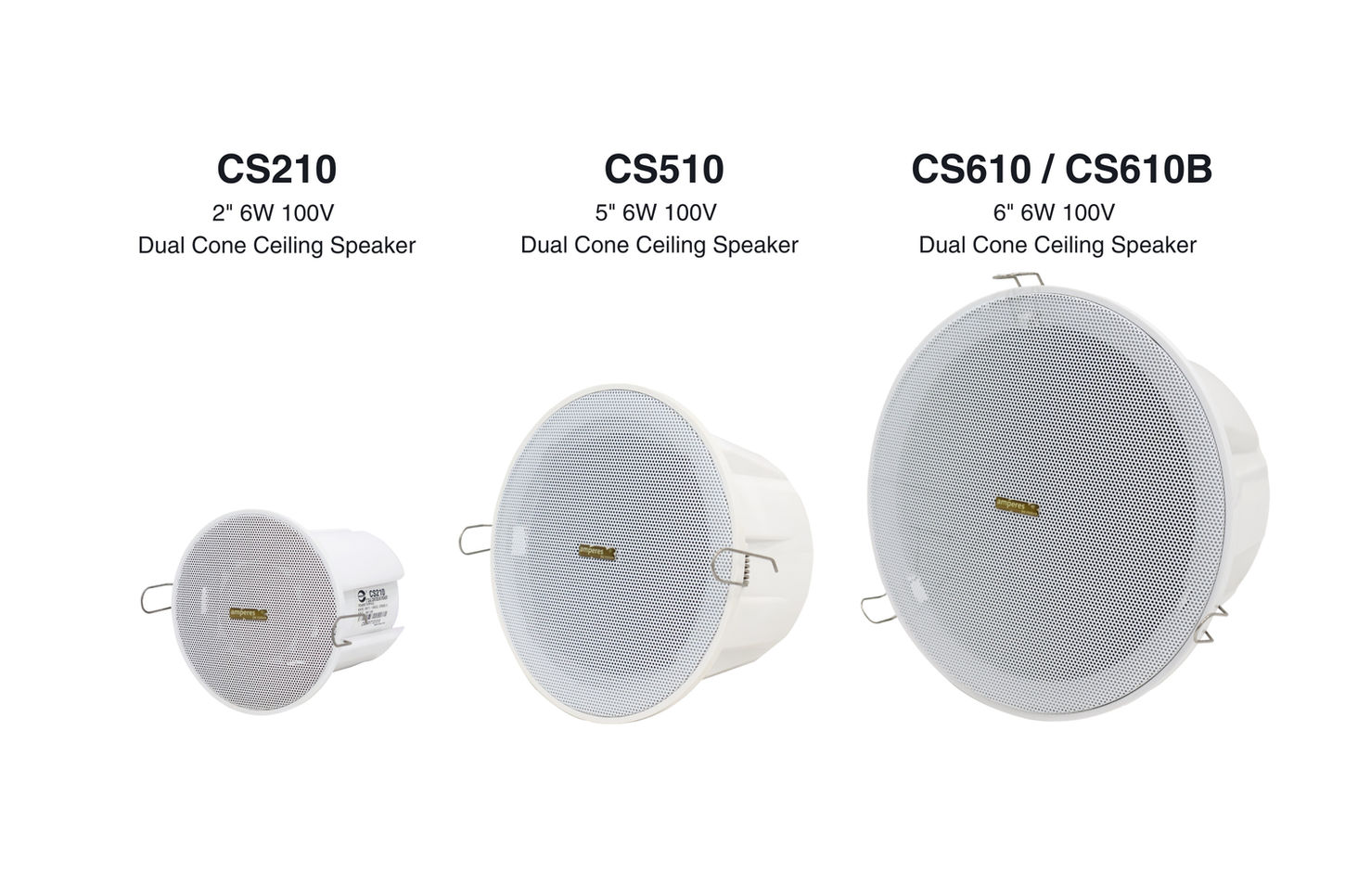

From the Same Series:
Packing information
CS610:
Carton size : 660 (L) x 440 (W) x 430 (H) mm
Gross weight : 19.50 kg
Net weight: 15.20 kg
18 units per carton
CS610FR / CS610BFR / CS610B:
Carton size : 660 (L) x 440 (W) x 430 (H) mm
Gross weight : 19.70 kg
Net weight: 18.40 kg
18 units per carton
CS610 / CS610FR / CS610B / CS610BFR
Power & Driver Specs
CS610 / CS610FR
CS610B / CS610BFR
Power rating
6W 100V line
10W 100V line
Diameter
6" (150 mm)
6" (150 mm)
Cone type
Dual cone
Dual cone
Driver impedance (Ohm)
8 Ohm
8 Ohm
Frequency response@(1 kHz ± 3 dB)
120 - 19 kHz
120 - 19 kHz
SPL@1W/m (1 kHz ± 3 dB)
92 dB
92 dB
Dispersion angle@1W/m (1 kHz ± 3 dB)
165°
165°
Transformer Specifications
Power taps (100V line)
1.5W / 3W / 6W
1W / 3W / 6W / 10W
Primary Impedance (Ohm)
6.7k / 3.3k / 1.67k Ohm
10k / 3.3k / 1.67k / 1k Ohm
Secondary impedance (Ohm)
8 Ohm
8 Ohm
Physical Specifications
Grille / Enclosure material
Metal grille / ABS enclosure
Metal grille / ABS enclosure
Cutting hole diameter
185 mm
185 mm
Dimensions(diameter x height)
205 (D) x 110 (H) mm
205 (D) x 110 (H) mm
Net weight
0.84 kg
0.85 kg
Color
White
White
Note: The specification parameters may be changed, added, or omitted without prior notice. Last updated on 14 Jan 2026.
6" 6W 100V line
Slim-edge and low profile design for a modern look
Durable ABS back enclosure with metal grille
Quick and secure installation with spring clips
Dual cone drivers with multiple power tap options
Optional version available without back enclosure
Optional fire-retardant (FR) grade enclosure
Introduction
CS610 / CS610B is a compact 6” 6W (CS610) or 10W 100V (CS610B) line ceiling speaker designed with a slim edge and low-profile finish, ideal for discreet background music and paging in smaller areas. Made from durable ABS housing with an optional fire-retardant (FR) grade, it features a spring clip mounting system for fast and secure installation.
Model Variants:
CS610: 6" 6W 100V Line with 1.5 / 3 / 6W Power Taps
CS610: 8" Grille options available
CS610FR: 6" 6W 100V Line with 1.5 / 3 / 6W Power Taps and Fire Retardant (FR) enclosure
CS610B: 6" 10W 100V Line with 1.5 / 3 / 6 / 10W Power Taps
CS610BFR: 6" 10W 100V Line with 1.5 / 3 / 6 / 10W Power Taps and Fire Retardant (FR) enclosure
From the Same Series:
Packing information
CS610:
Carton size : 660 (L) x 440 (W) x 430 (H) mm
Gross weight : 19.50 kg
Net weight: 15.20 kg
18 units per carton
CS610FR / CS610BFR / CS610B:
Carton size : 660 (L) x 440 (W) x 430 (H) mm
Gross weight : 19.70 kg
Net weight: 18.40 kg
18 units per carton
