ZS5122
12 Ch Speaker Zone Selector with Fail Safe
ZS5122 is a 6-zone fail-safe selector that keeps zones active during power loss.
Supports 1000W per zone on a 100V line
Remote monitoring via RS485 and PMX software.
Expandable up to 248 zones with cascading
Local paging mutes BGM for priority messages
Introduction

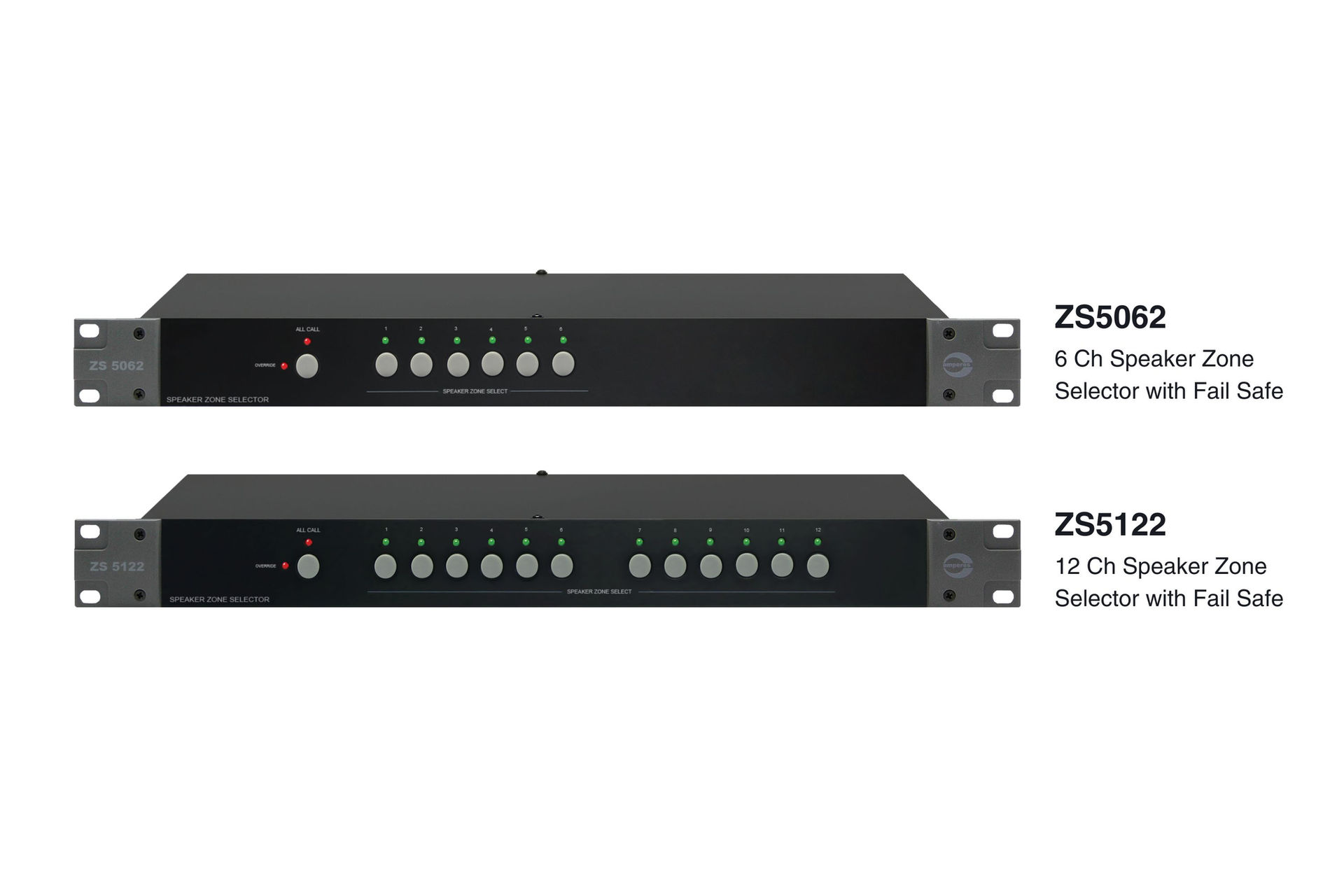

ZS5122 and ZS5062 are high-power fail-safe speaker zone selectors that keep all zones active during power loss or unit failure for uninterrupted emergency broadcasts. Both model support up to 1000W per zone on a 100V line, and enable remote monitoring via RS485 and PMX software.
Packing information
Carton size : 550 (L) x 295 (W) x 95 (H) mm
Gross weight : 2.70 kg
1 unit(s) per carton
Introduction
ZS5122 and ZS5062 are high-power fail-safe speaker zone selectors that keep all zones active during power loss or unit failure for uninterrupted emergency broadcasts. Both model support up to 1000W per zone on a 100V line, and enable remote monitoring via RS485 and PMX software.
Packing information
Carton size : 550 (L) x 295 (W) x 95 (H) mm
Gross weight : 2.70 kg
1 unit(s) per carton
ZS5122
Power requirements
Operating voltage
24V DC via PS9400
Power consumption (idle)
6.25W
Power consumption (All Call)
0.96W
Current consumption (idle)
0.26A
Current consumption (All Call)
0.04A
Input, indicators, & data
Max load / channel
1000W 100V Line
Number of zones
12
Amplifier inputs
12
Zone selection
Front panel switch & remote (zone & all call)
Max cascade
16 units
Remote triggering
-ve triggered (common ground)
Indicators
Individual zone switch, all call, and priority
Data communications
RS485 ; 19.2 kbps baud rate
Switching mode
Individual & All CallLocal zone bypassed when remote trigger is activated
Operating temperature
-10° - 60°C
Case
Dimensions (W x H x D)
482 x 44 x 180 mm
Weight
2.10kg
Note: The specification parameters may be changed, added, or omitted without prior notice.
Firmware last updated on Dec 2022. Please contact us on upgrade procedures.
V2.10 - Triggering bug fixes
Supports 1000W, 100V per zone
Fail-safe operation keeps speaker lines connected during power or unit failure
Local paging overrides BGM for priority announcements
Expandable up to 248 zones with flexible amp-to-zone setup (16 cascaded units)
Remote activation via analog input and RS485, with monitoring through PMX III software
Front panel and remote paging control for easy operation
