CD1001

DVD/ CD/ Tuner / USB Player

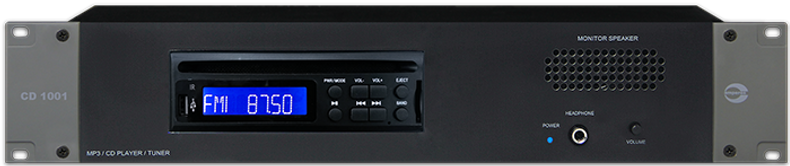

Amperes Integrated Tuner - CD1001

CD1001 is an integrated player comprising DVD player, USD/SD card reader and  FM tuner in a unit, rack mounted for PA installations.  Audio monitoring is included with 2W speaker and headphone output jack.

Features
  • Integrated unit of DVD /CD / Tuner / USB

  • Headphone jack monitoring

  • Speaker monitoring

Technical Specifications

Power requirement :

Voltage

Consumption



CD / USB :

Format

Freq response

Ch separation
S/N Ratio

Distortion

Tuner :

Frequency

S/N ratio

Preset stations

Output :

Audio output

Output connection

Headphone out

Dimensions (WHD) mm

Weight

220 - 240V ac

1.8W



DVD/CD/CD-R/CD-RW/MP3

20 - 20 KHz

> 45 dB

> 80 dB

<0.5%

FM : 87.5 - 108 MHz

55 dB

3 bands x 6 memory

500 mV

Stereo RCA

1/4" phone jack

482 X 88 X 180 mm

4.25 kg
